Technical Specifications
| Parameter | Specification |
|---|---|

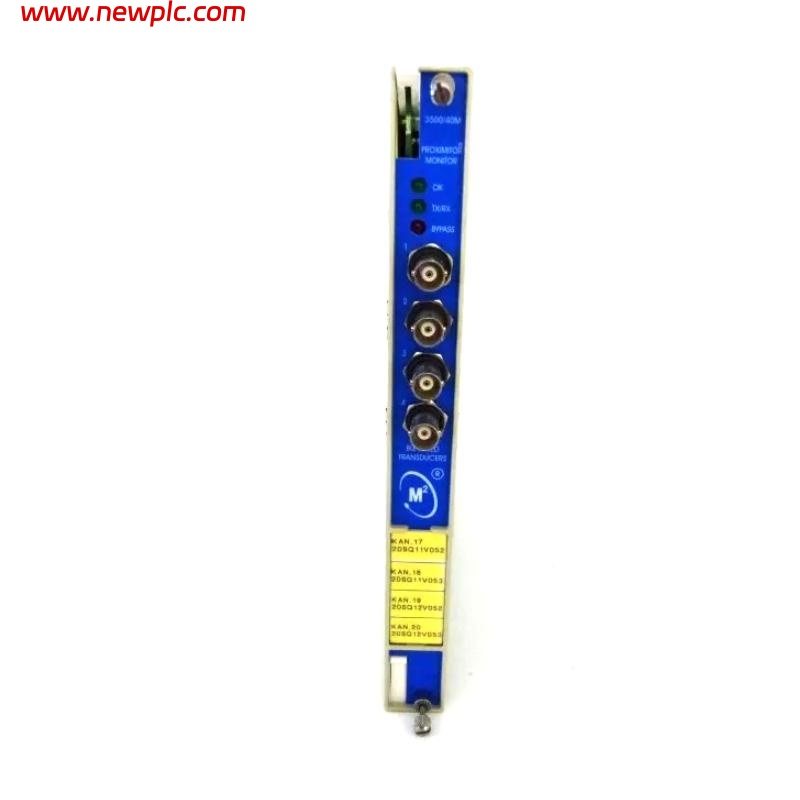

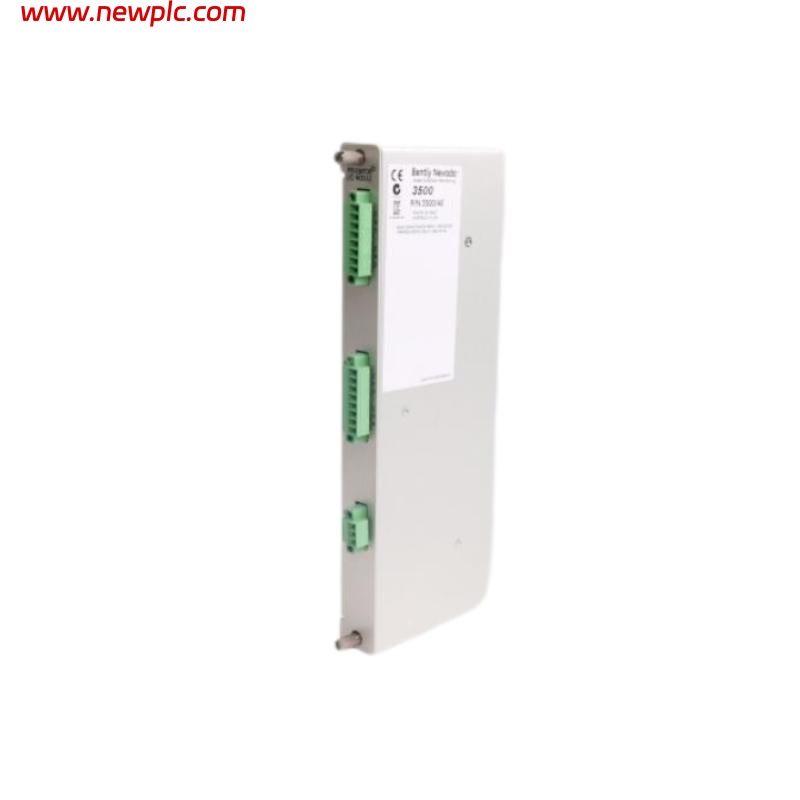

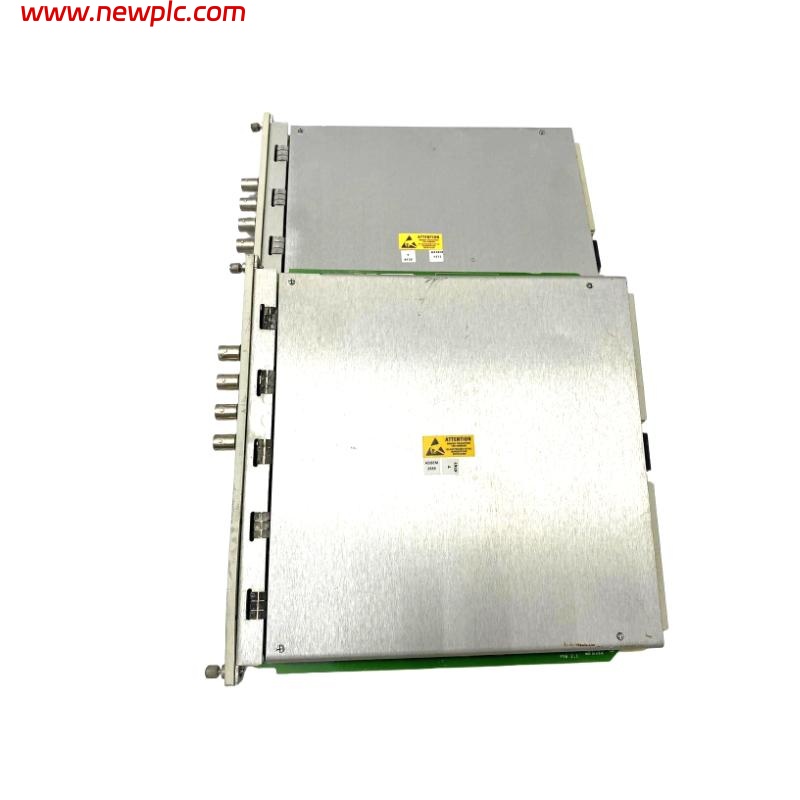

| Product Model | Bently Nevada 3500/40M 140734-01 + 125680-01 |
| Function | Four-Channel Proximitor Monitor for vibration and position measurements |
| Channels | 4 (programmable in pairs) |
| Supported Measurements | Radial Vibration, Eccentricity, REBAM, Thrust Position, Differential Expansion |
| Input Type | 1–4 proximity transducer signals |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor & acceleration inputs) |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm or 7.87 mV/μm; Differential Expansion: 0.394 mV/μm or 0.787 mV/μm; REBAM: 40 mV/μm or 80 mV/μm |
| Output Type | Buffered transducer outputs (coaxial, short-circuit protected) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Accuracy | ±0.33% FS typical, ±1% max (varies by function) |
| Frequency Response | User-programmable, depending on function type |
| Operating Temperature | -30°C to +65°C (Internal/External Termination I/O); 0°C to +65°C (Internal Barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Rack Space Requirements | 1 full-height front slot (monitor), 1 full-height rear slot (I/O module) |
FAQ
FAQ
Q1: What measurement types does the 3500/40M support?
A1: It supports radial vibration, eccentricity, REBAM, thrust position, and differential expansion measurements.
Q2: How are the channels configured?
A2: The four channels are programmed in pairs, with channels 1 and 2 performing one function and channels 3 and 4 performing the same or another function.
Q3: What type of input signals does it accept?
A3: It accepts signals from 1 to 4 Bently Nevada proximity transducers.
Q4: What is the operating temperature range?
A4: -30°C to +65°C for internal/external termination I/O modules; 0°C to +65°C for internal barrier I/O modules.
Q5: What is the accuracy?
A5: ±0.33% of full scale (typical) for most modes, with a maximum of ±1%.
Q6: What is the power consumption?
A6: Typical power consumption is 7.7 W.
Q7: What type of output interface is provided?
A7: Buffered transducer outputs with coaxial connectors on the front panel, one per channel, short-circuit protected.
Q8: How much rack space is required for installation?
A8: One full-height front slot for the monitor and one full-height rear slot for the I/O module.
