Technical Specifications
| Parameter | Description |
|---|---|

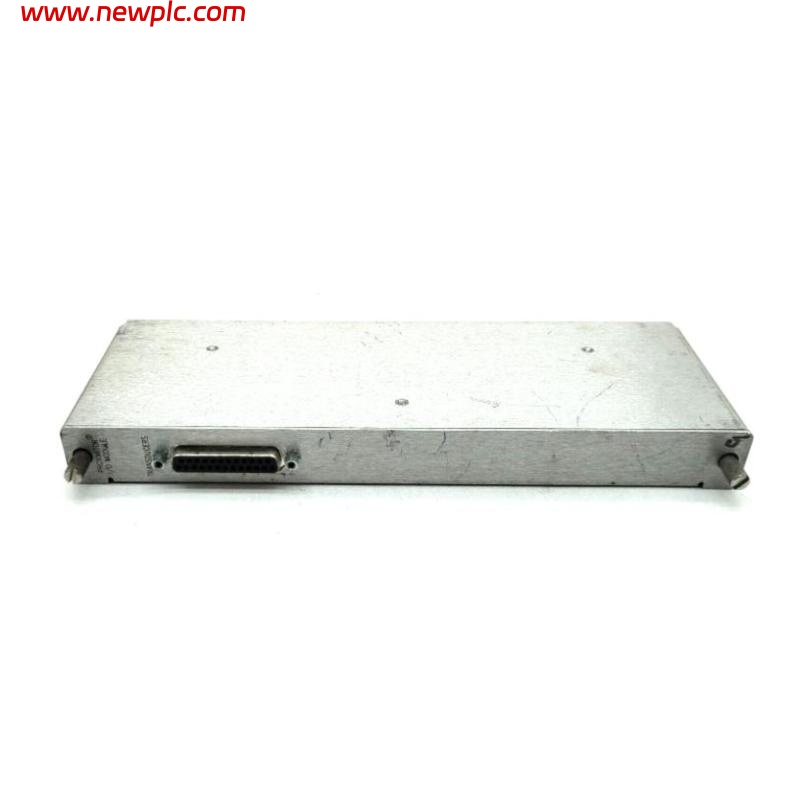

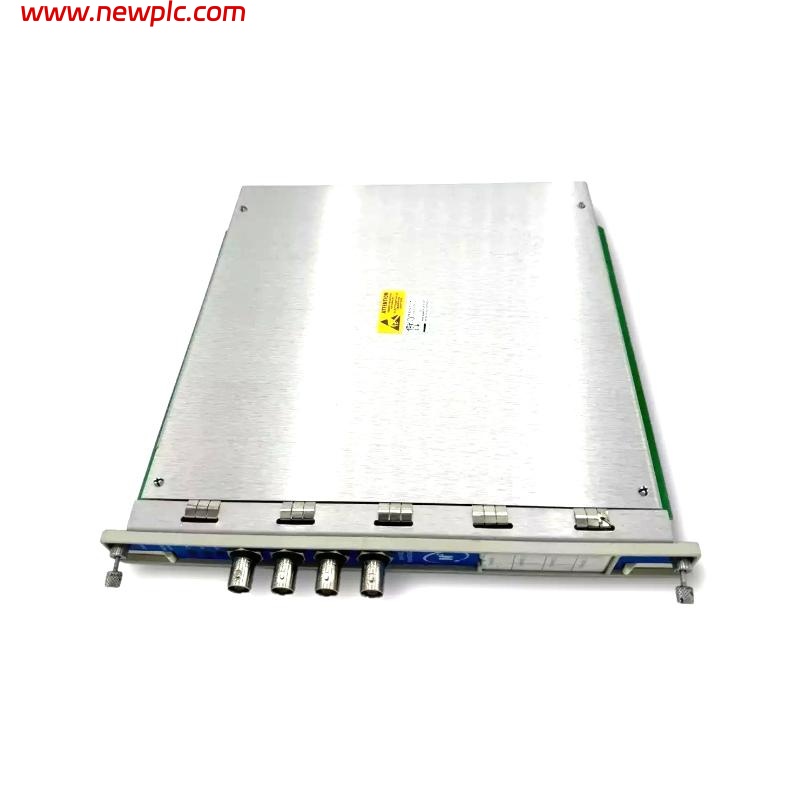

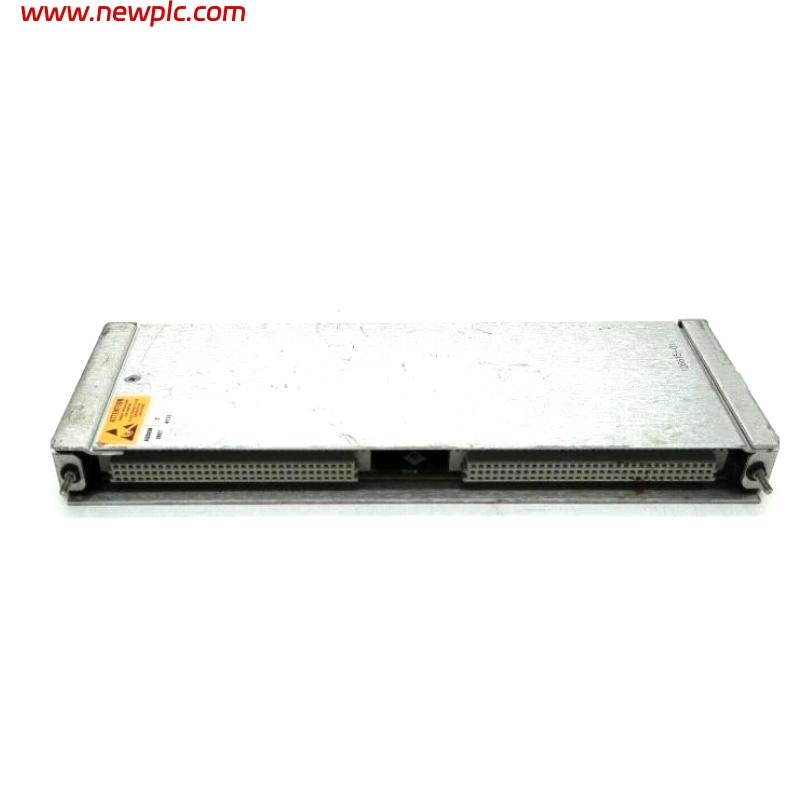

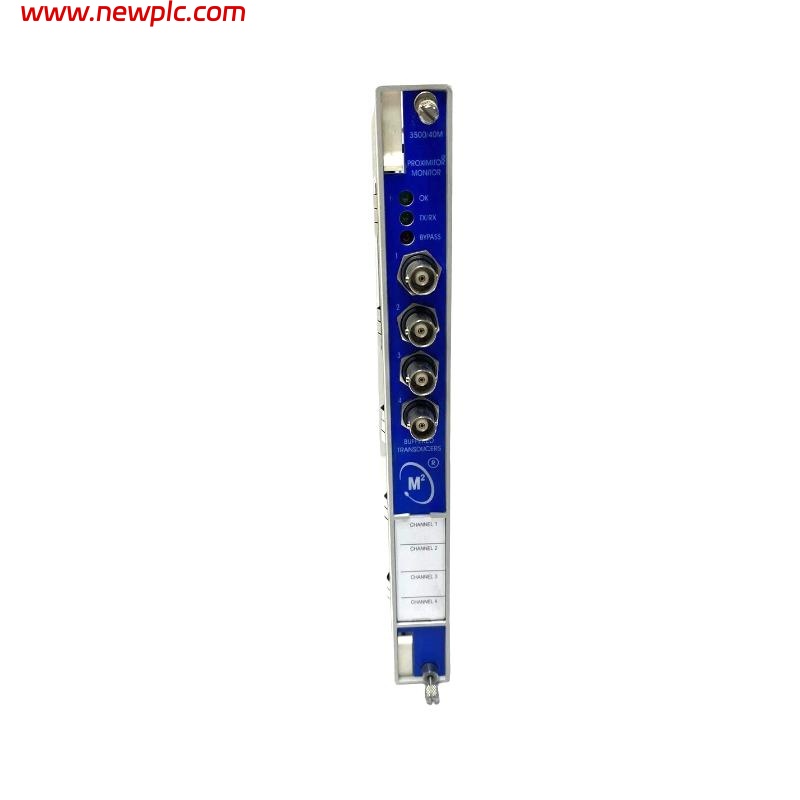

| Product Model | Bently Nevada 3500/40M 140734-01 + 126615-01 |
| Product Type | Four-Channel Proximitor Monitor |
| Input Channels | Accepts 1 to 4 proximity transducer signals |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil); Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil); REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
| Frequency Response | User programmable; multiple filter options for direct, gap, 1X, 2X, Smax, and REBAM modes |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Accuracy | Direct/Gap: ±0.33% FS typical, ±1% max; 1X/2X: ±0.33% FS typical, ±1% max; Smax: ±5% max |
| Alarm Setpoints | 0–100% FS, user programmable |
| Operating Temperature | Internal/External Termination I/O: -30°C to +65°C; Internal Barrier I/O: 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Rack Space | 1 full-height front slot (monitor), 1 full-height rear slot (I/O module) |
FAQ
FAQ
Q1: What is the function of the Bently Nevada 3500/40M monitor?
A1: It measures vibration and position parameters from proximity transducers, processes the signals, and provides machinery protection through programmable alarms.
Q2: How many channels does the 3500/40M support?
A2: It supports up to four channels, programmable in pairs for different or same measurement functions.
Q3: What types of measurements can it perform?
A3: Radial vibration, thrust position, eccentricity, differential expansion, and REBAM.
Q4: What is the operating temperature range?
A4: -30°C to +65°C for Internal/External Termination I/O, and 0°C to +65°C for Internal Barrier I/O.
Q5: How are alarm setpoints configured?
A5: Using the 3500 Rack Configuration Software, allowing settings from 0 to 100% full scale.
Q6: What is the required rack space?
A6: One full-height front slot for the monitor and one full-height rear slot for the I/O module.
Q7: What is the power supply for transducers?
A7: It provides a -24 VDC transducer power supply.
Q8: What is the physical size and weight of the module?
A8: The dimensions are 241.3 × 24.4 × 241.8 mm, and the weight is 0.91 kg.
