Technical Specifications
| Parameter | Specification |
|---|---|

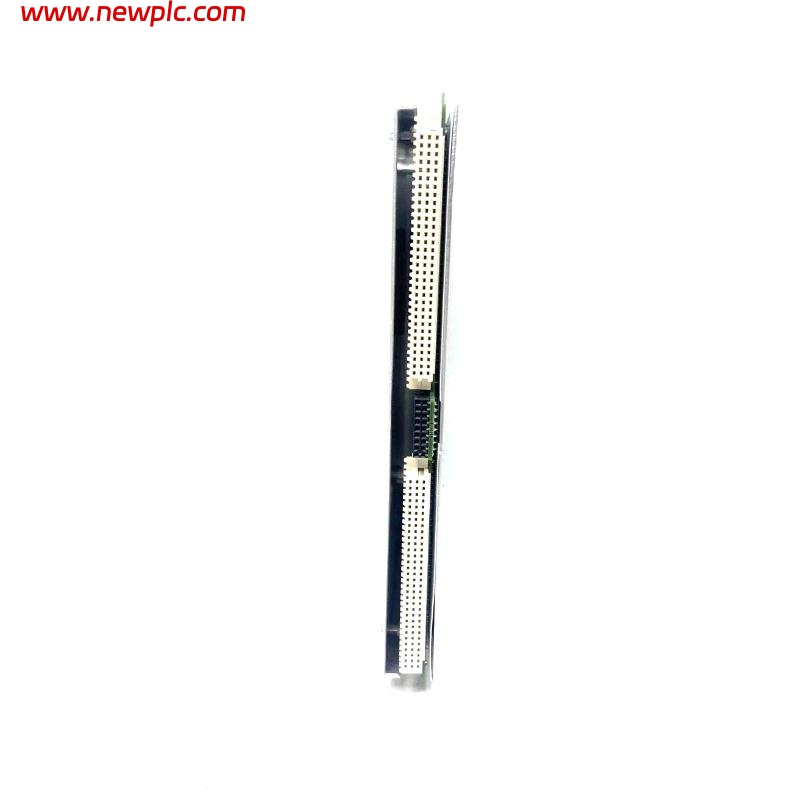

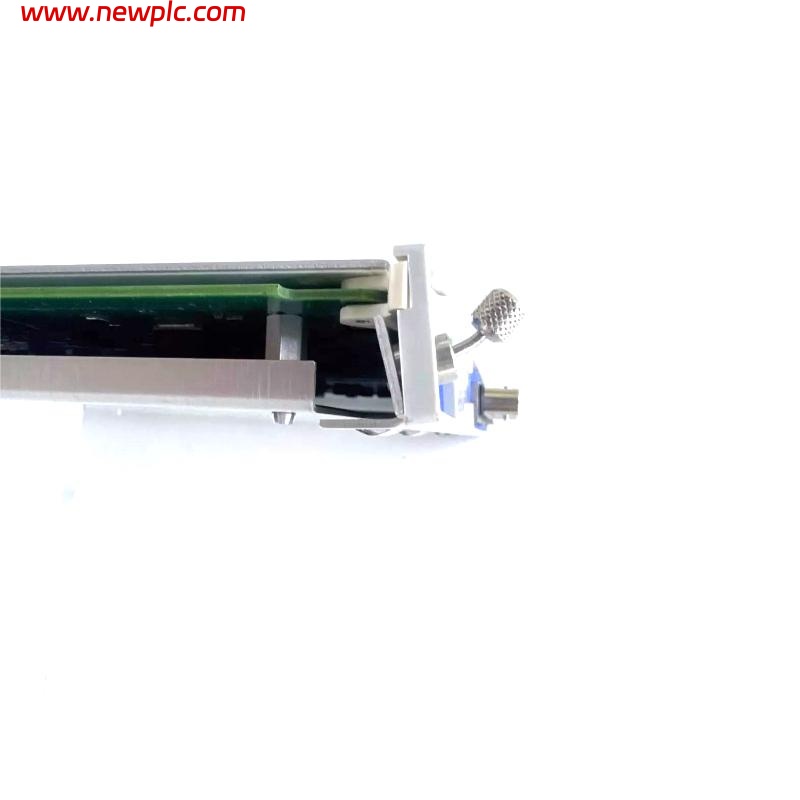

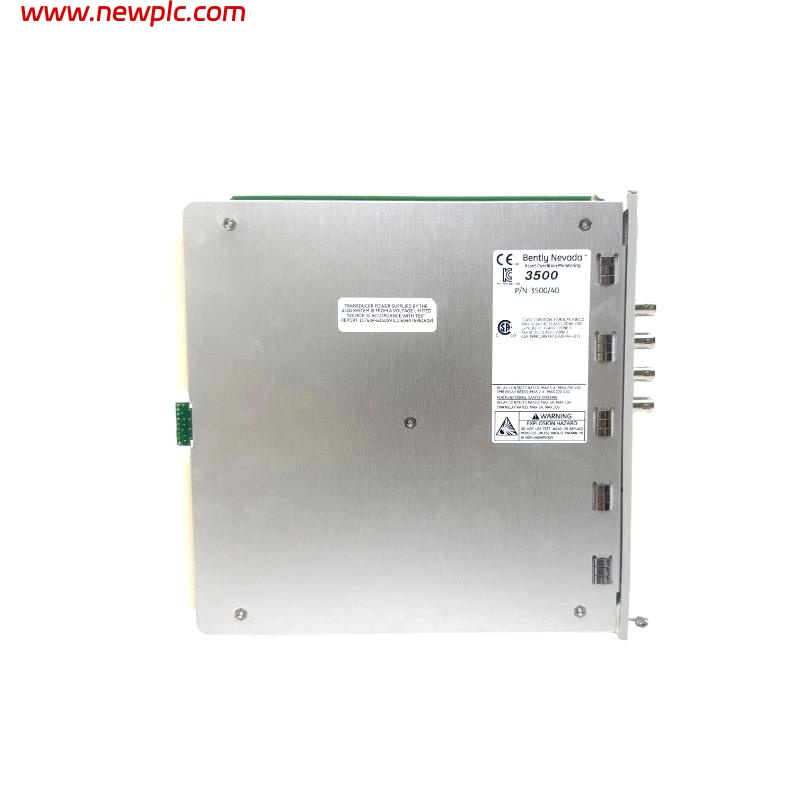

| Product Model | Bently Nevada 3500/40M 176449-01 Four-Channel Proximitor Monitor |
| Channels | 4 independent channels |
| Compatible Sensors | Bently Nevada proximity transducers |
| Input Signal | 1 to 4 proximity transducer signals |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil) REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Frequency Response | Radial Vibration: 4 Hz to 4000 Hz or 1 Hz to 600 Hz (Direct Filter, user-programmable) |
| Operating Temperature | -30°C to +65°C (Internal/External Termination I/O Module) 0°C to +65°C (Internal Barrier I/O Module) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Rack Space Requirement | 1 full-height front slot (Monitor) + 1 full-height rear slot (I/O Module) |
| Alarm Setpoints | Adjustable from 0 to 100% of full-scale |
| Certifications | FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS 2011/65/EU, ABS Marine, DNV GL, ATEX/IECEx, cNRTLus |
FAQ
FAQ
Q1: What is the primary function of the Bently Nevada 3500/40M monitor?
A1: It processes signals from proximity transducers to measure vibration, position, and other parameters, and triggers alarms when readings exceed set thresholds.
Q2: How many channels does the 3500/40M support?
A2: It supports four independent channels.
Q3: What sensors are compatible with this monitor?
A3: It is designed for use with Bently Nevada proximity transducers.
Q4: What is the operating temperature range of the unit?
A4: -30°C to +65°C for Internal/External Termination I/O Modules, and 0°C to +65°C for Internal Barrier I/O Modules.
Q5: How are alarm setpoints configured?
A5: They are set using the 3500 Rack Configuration Software, with adjustable alert and danger thresholds.
Q6: What is the sensitivity for radial vibration measurement?
A6: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).

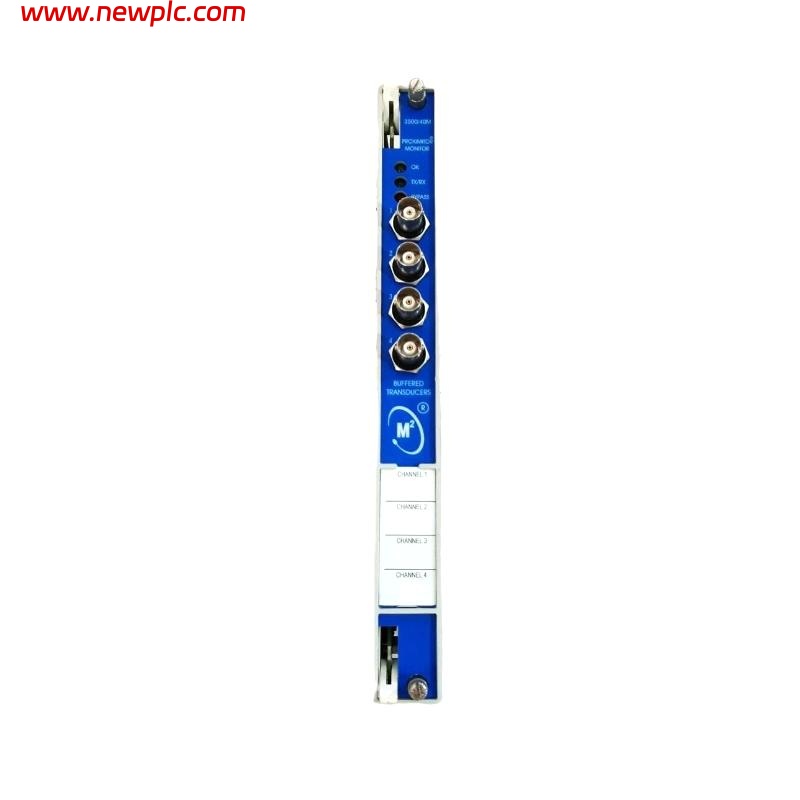

Q7: How is the output signal accessed?
A7: Each channel has a front-panel coaxial connector for buffered transducer outputs.
Q8: What are the physical dimensions and weight of the monitor?
A8: 241.3 x 24.4 x 241.8 mm, weighing 0.91 kg.
