Technical Specifications
| Parameter | Description |
|---|---|

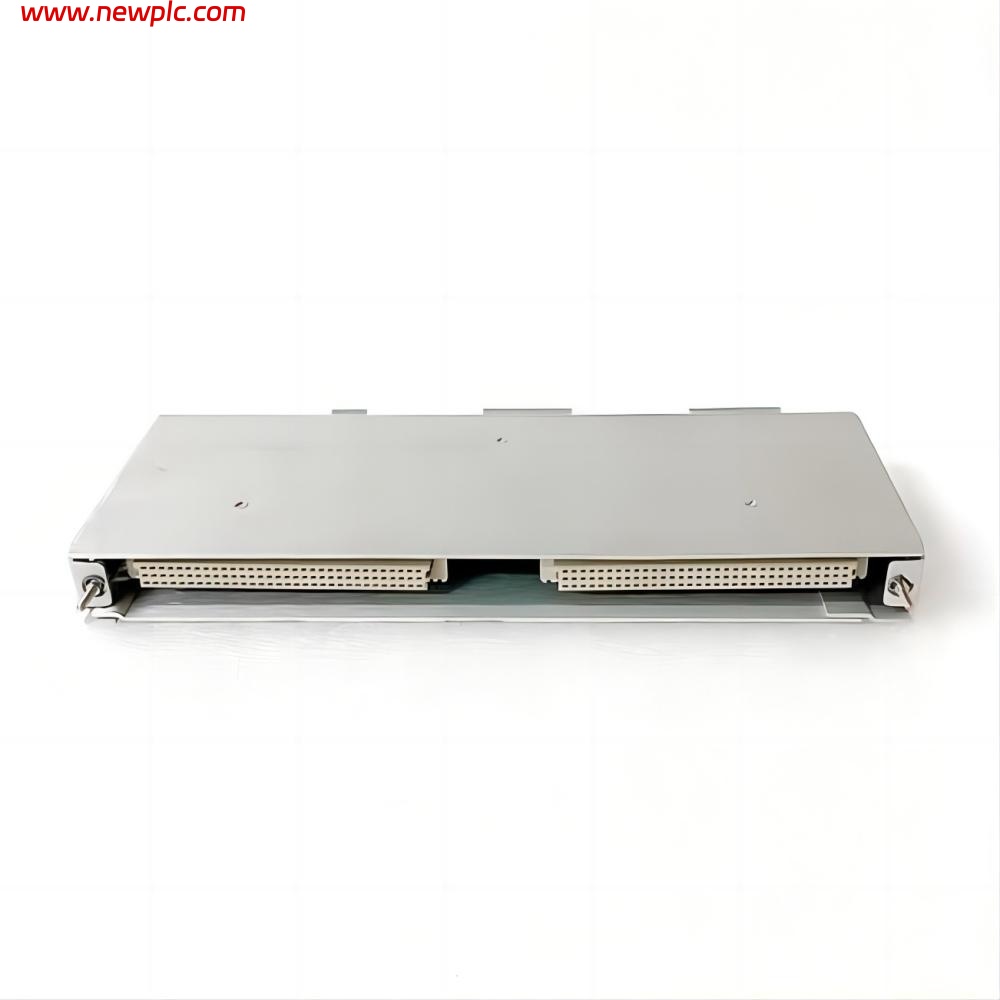

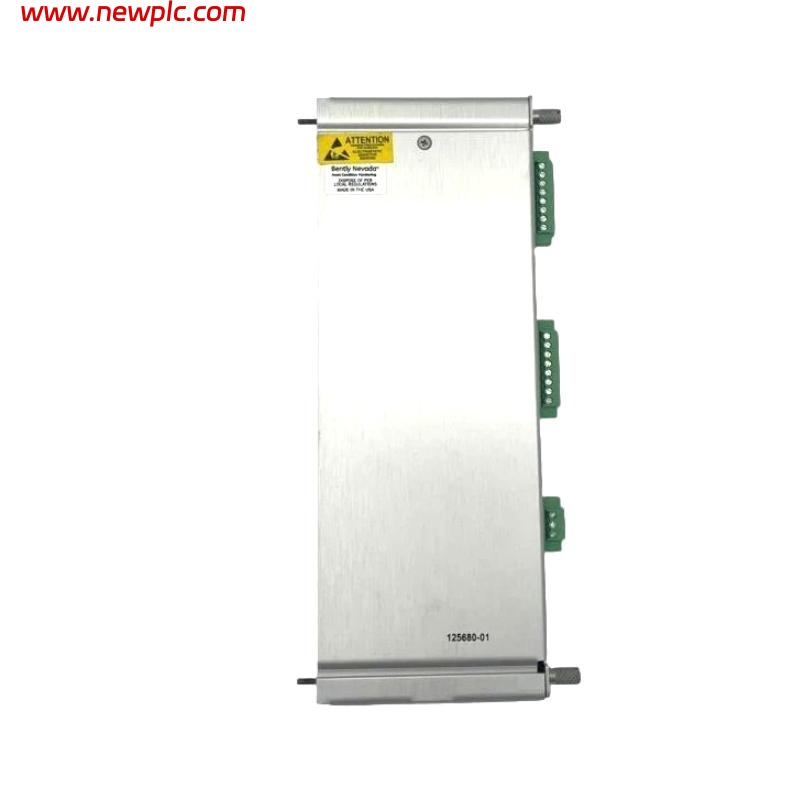

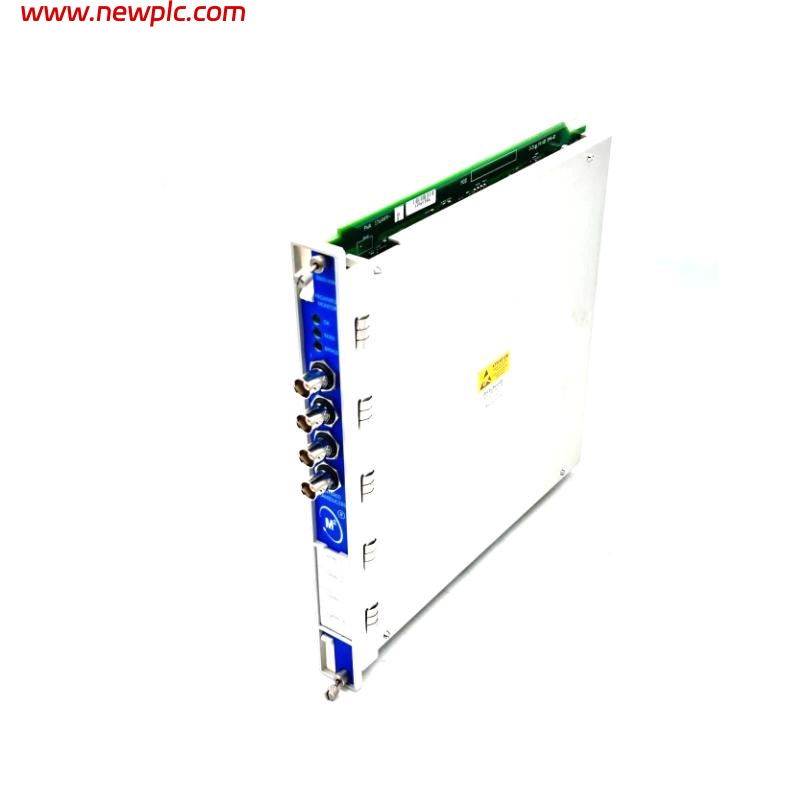

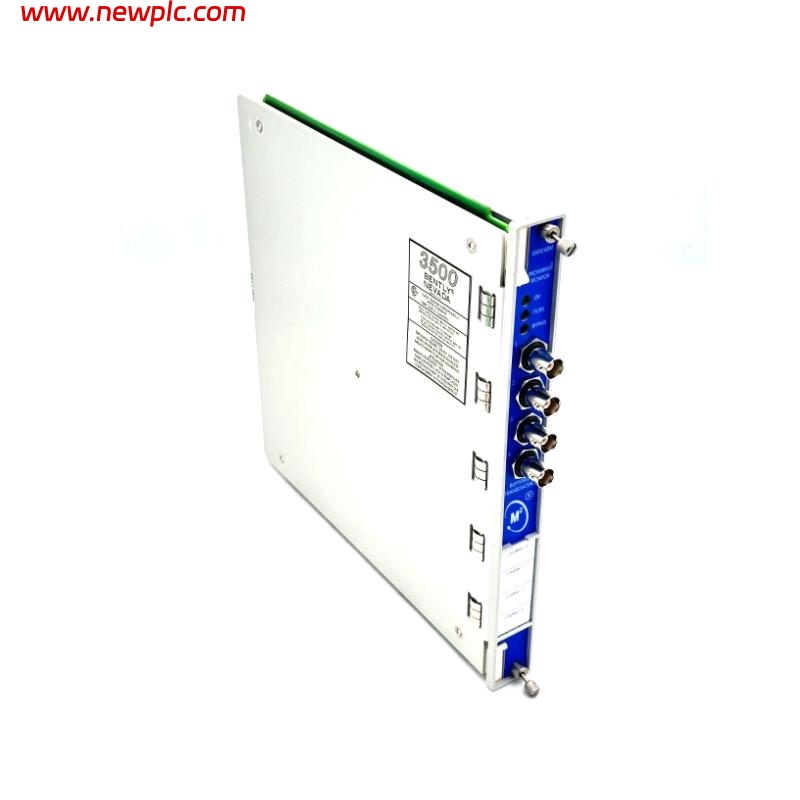

| Model | Bently Nevada 3500/40M 176449-01 + 125680-01 Four-Channel Proximitor Monitor |
| Input Channels | 4 proximity transducer inputs |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor & acceleration inputs) |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil); Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil); REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Frequency Response | User-programmable; varies by measurement mode |
| Accuracy | Direct/Gap: ±0.33% typical, ±1% max; 1X/2X: ±0.33% typical, ±1% max; Smax: ±5% max |
| Operating Temperature | -30°C to +65°C (Internal/External Termination), 0°C to +65°C (Internal Barrier) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Certifications | FCC, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS Directive 2011/65/EU, ABS, DNV GL, CSA, ATEX, IECEx |
FAQ
FAQ
Q1: How many input channels does this product support?
A1: It supports up to 4 input channels for receiving Bently Nevada proximity transducer signals.
Q2: What are the main functions of the monitor?
A2: It can perform radial vibration, thrust position, eccentricity, differential expansion, and REBAM measurements, with two functions monitored simultaneously.
Q3: What is the power consumption of the unit?
A3: Typical power consumption is 7.7 watts.
Q4: What is the operating temperature range?
A4: -30°C to +65°C with Internal/External Termination I/O modules, 0°C to +65°C with Internal Barrier modules.
Q5: What is the measurement accuracy?
A5: Direct and gap measurements have ±0.33% typical, ±1% max accuracy; Smax measurements have ±5% max accuracy.
Q6: What is the output impedance?
A6: The output impedance is 550 ohms.
Q7: What are the physical dimensions and weight?
A7: The dimensions are 241.3 x 24.4 x 241.8 mm, and the weight is 0.91 kg.
Q8: Which certifications does this product comply with?
A8: It complies with FCC, EMC, LV, RoHS, ABS, DNV GL, CSA, ATEX, and IECEx certifications.
