Technical Specifications
| Parameter | Specification |
|---|---|

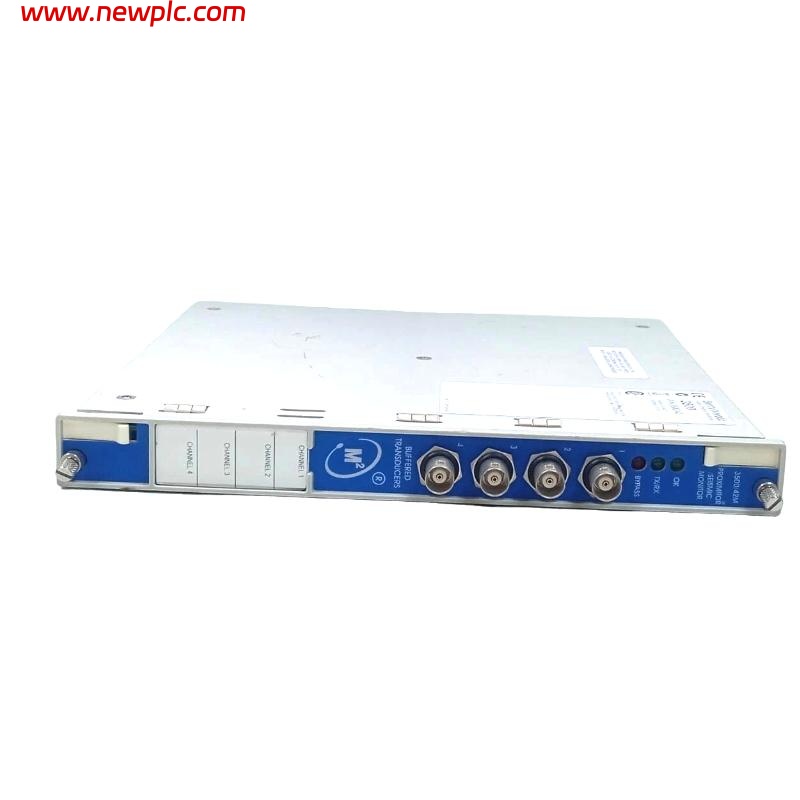

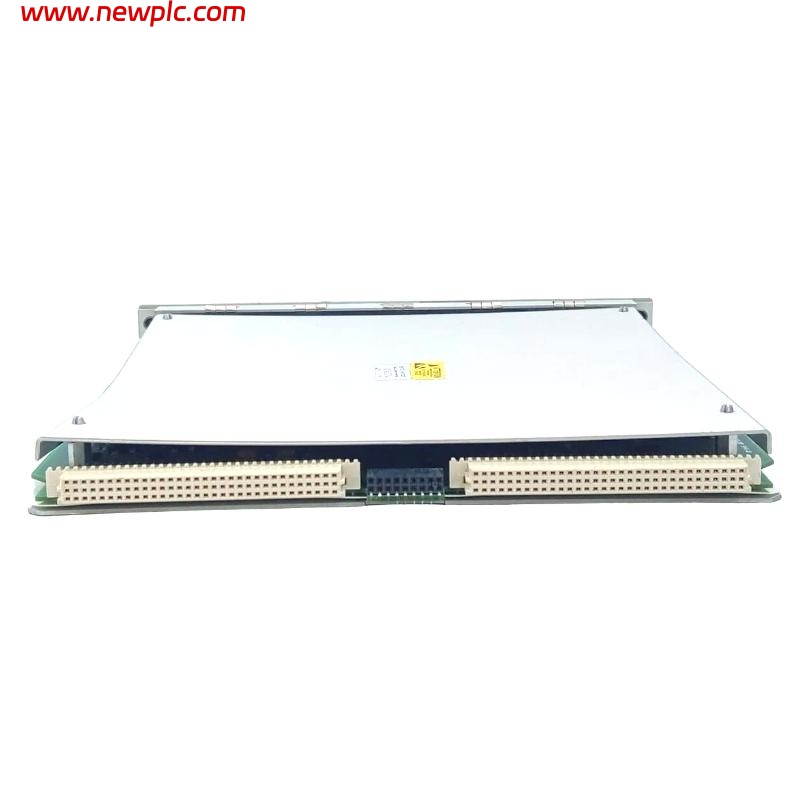

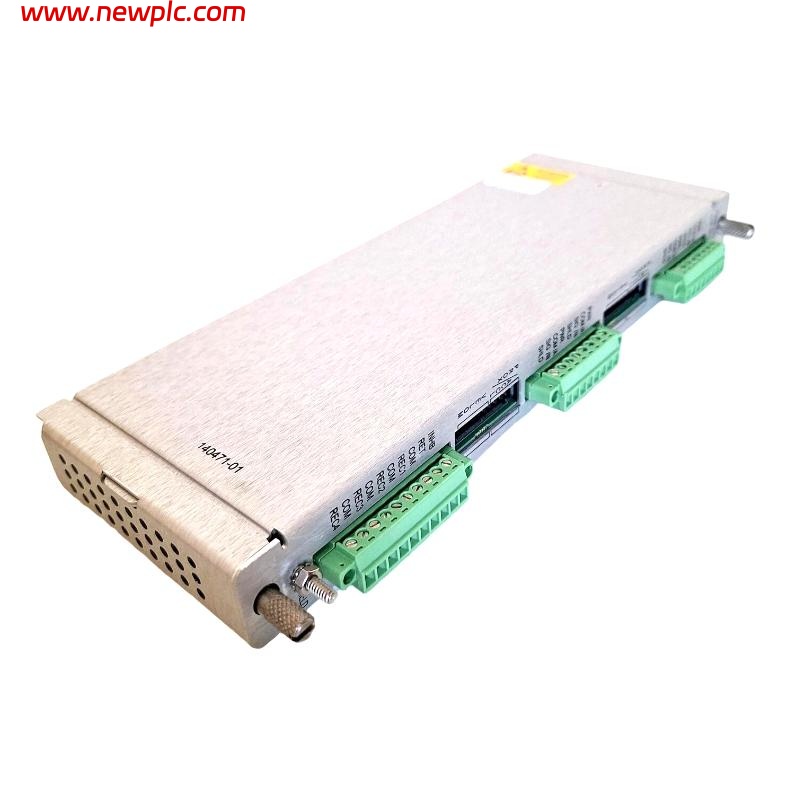

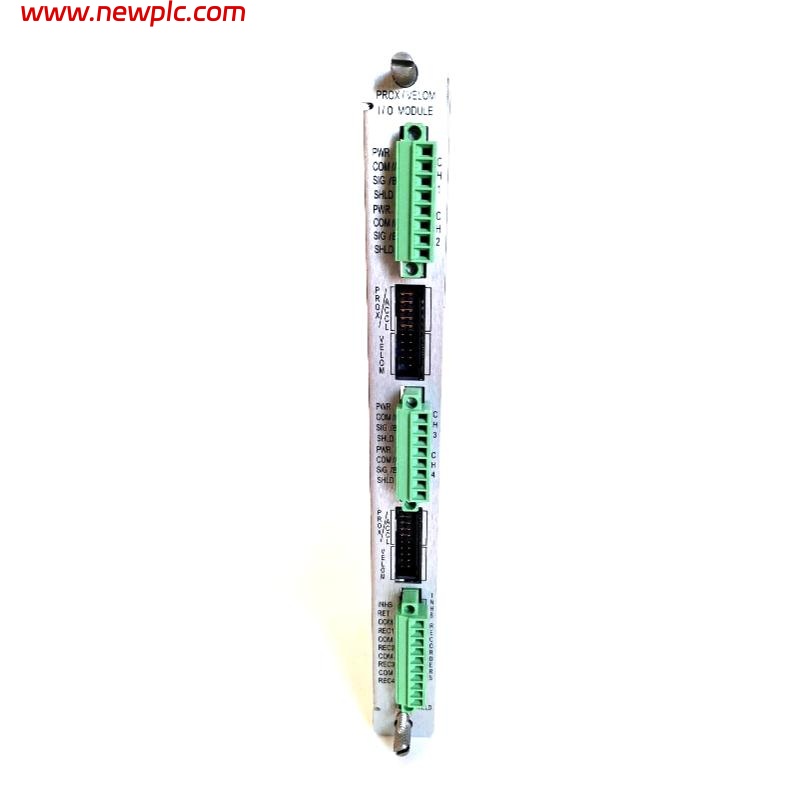

| Model | Bently Nevada 3500/42M 140734-02 + 140471-01 Proximitor Seismic Monitor |
| Channels | 4-channel monitor, accepts proximity, velocity, or acceleration transducer inputs |
| Power Consumption | 7.7 W typical |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Radial/Thrust/Eccentricity: 3.94 mV/μm or 7.87 mV/μm; Differential Expansion: 0.394 mV/μm or 0.787 mV/μm; REBAM: 40 mV/μm or 80 mV/μm; Acceleration: 10 mV/(m/s²); Velocity: 20 mV/(mm/s) pk or alternative ranges |
| Output Signals | +4 to +20 mA recorder outputs, proportional to full scale |
| Output Impedance | Buffered Transducer: 550 Ω; Shaft Absolute Buffered Output: 300 Ω |
| Frequency Response | User-programmable depending on function (radial vibration, thrust, eccentricity, velocity, acceleration, REBAM, etc.) |
| Alarm Setpoints | Adjustable from 0 to 100% full scale |
| Alarm Accuracy | ±0.13% of desired value |
| Environmental Limits | Operating Temperature: -30°C to +65°C (standard); 0°C to +65°C (with internal barrier I/O); Storage Temperature: -40°C to +85°C; Humidity: 95%, non-condensing |
| Compliance | FCC Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, RoHS Directive 2011/65/EU, ABS, DNV GL |
| Hazardous Area Approvals | Class I, Zone 2; ATEX/IECEx (varies by I/O configuration) |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
FAQ
FAQ
Q1: How many input channels does the 3500/42M 140734-02 + 140471-01 support?
A1: It supports four input channels for proximity, velocity, or acceleration transducer signals.
Q2: What is the main function of this device?
A2: It continuously monitors machinery vibration, displacement, and related parameters, comparing them with preset alarm limits to protect equipment.
Q3: What type of output signals are provided?
A3: It provides +4 to +20 mA recorder outputs proportional to full scale, along with buffered transducer outputs.
Q4: What is the operating temperature range?
A4: With standard I/O modules, -30°C to +65°C; with internal barrier I/O modules, 0°C to +65°C.
Q5: What is the accuracy of the alarm setpoints?
A5: Alarm setpoint accuracy is ±0.13% of the desired value.
Q6: Does this device have hazardous area certifications?
A6: Yes, it is certified for Class I Zone 2 and ATEX/IECEx, depending on I/O configuration.
Q7: What are the dimensions and weight?
A7: Dimensions are 241.3 × 24.4 × 241.8 mm, and weight is 0.91 kg.
Q8: Which industries is this product suitable for?
A8: It is suitable for power plants, petrochemical, oil & gas, marine, and other industrial machinery monitoring applications.
