Technical Specifications
| Parameter | Description |
|---|---|

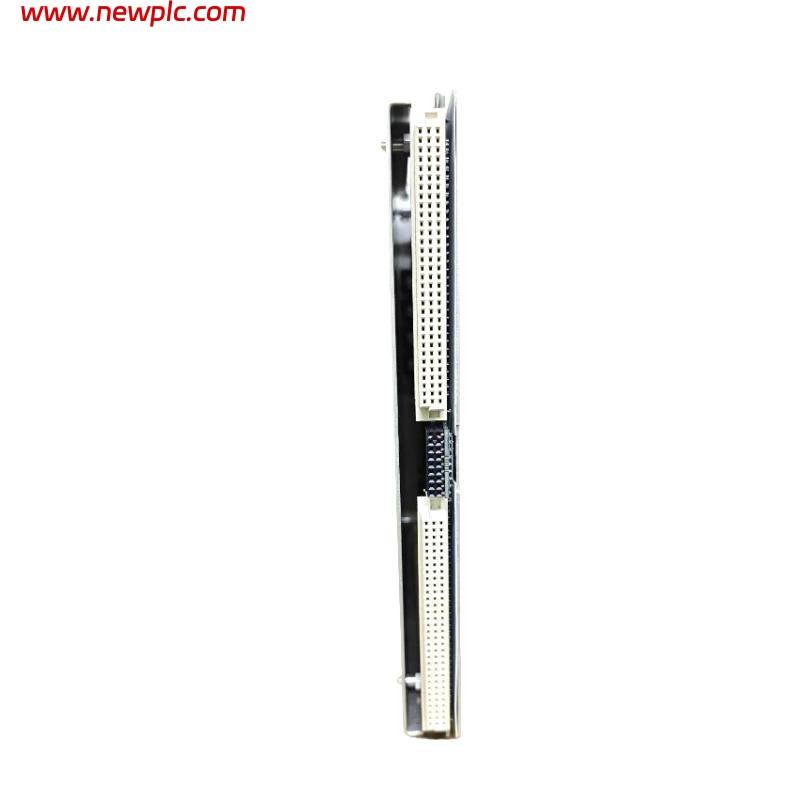

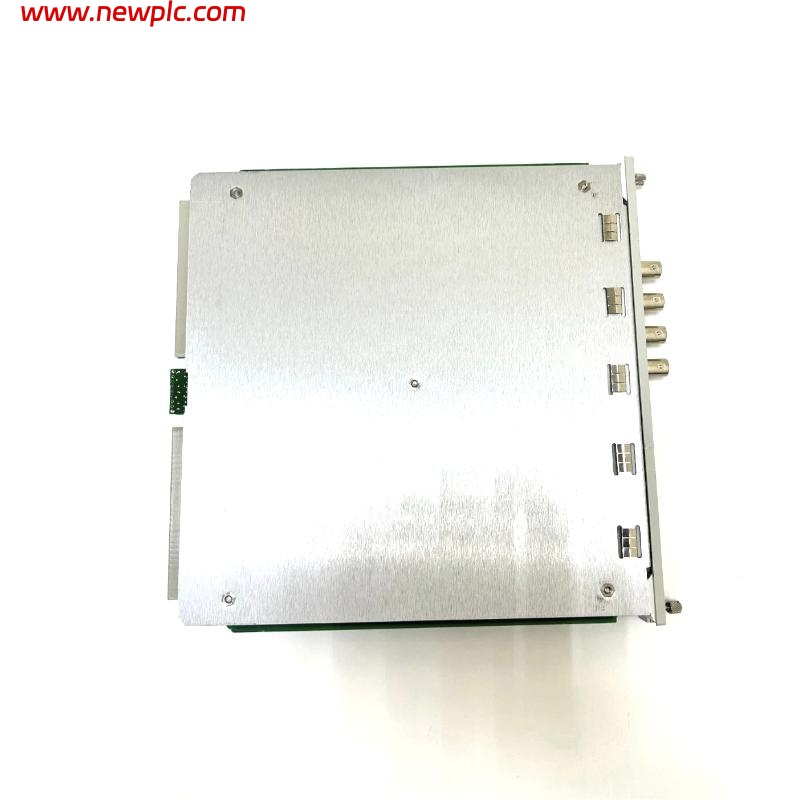

| Model | Bently Nevada 3500/42M 176449-01 3500 Series Proximitor Seismic Monitor |
| Input Signal | Accepts 1 to 4 proximity, velocity, or acceleration transducer signals |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Varies by measurement type, from 0.394 mV/μm to 80 mV/μm |

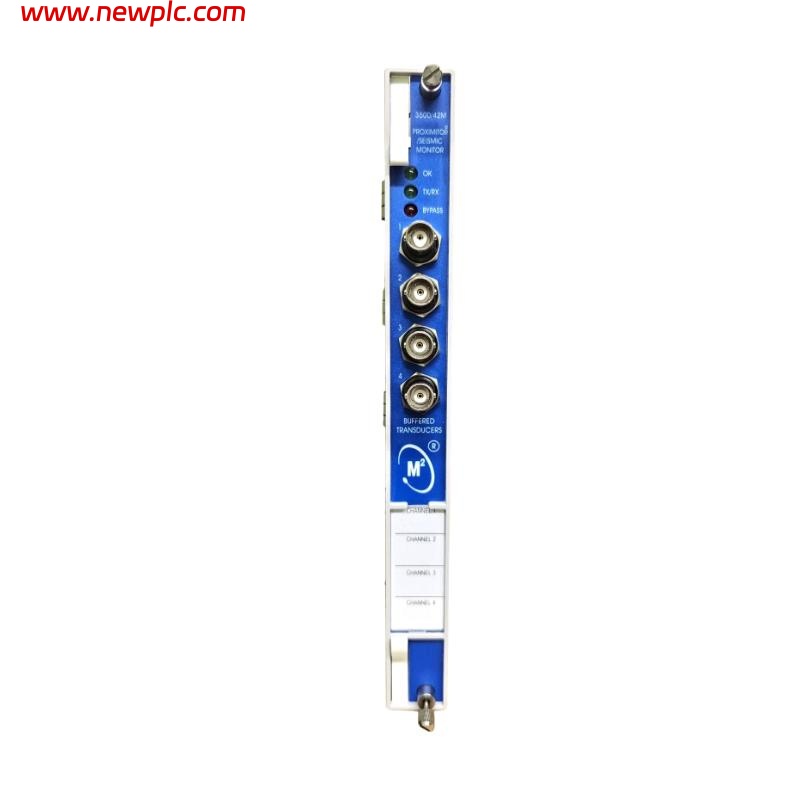

| Front Panel LEDs | OK, TX/RX, Bypass |
| Buffered Transducer Outputs | One coaxial connector per channel, short-circuit protected |
| Output Impedance | Buffered output: 550 Ω; Shaft absolute output: 300 Ω |
| Recorder Output | 4-20 mA, load 0-600 Ω, resolution 0.3662 μA/bit, update rate ~100 ms |
| Frequency Response | Depending on function, 0.002 Hz to 30 kHz |
| Operating Temperature | -30°C to +65°C (no internal barrier I/O) / 0°C to +65°C (internal barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H×W×D) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Rack Space | 1 full-height front slot, 1 full-height rear slot |
| Certifications | Meets FCC, EMC, LV, RoHS, ABS, DNV GL, and multiple hazardous area standards |
FAQ
FAQ
Q1: What types of transducer inputs does the monitor support?
A1: Supports proximity (Proximitor), velocity (Velomitor), and acceleration transducers.
Q2: What is the main function of this device?
A2: To continuously monitor and protect rotating machinery by measuring vibration, displacement, thrust position, and related parameters, triggering alerts and danger alarms.
Q3: How are alarm setpoints configured?
A3: Alarm thresholds are configured using the 3500 Rack Configuration Software for each measured value.
Q4: What types of outputs are available?
A4: Includes buffered transducer signal outputs (coaxial connectors) and 4-20 mA recorder outputs.
Q5: What is the operating temperature range?
A5: -30°C to +65°C without internal barrier I/O modules, 0°C to +65°C with internal barrier I/O modules.
Q6: How can I check if the device is operating properly?
A6: The OK LED on the front panel will be lit when the device is functioning correctly.
Q7: What is the frequency response range?
A7: Depending on the monitoring function, it ranges from 0.002 Hz to 30 kHz.
Q8: Is it suitable for marine and offshore applications?
A8: Yes, it is certified by ABS and DNV GL for use in marine and offshore environments.
