Technical Specifications
| Parameter | Specification |
|---|---|

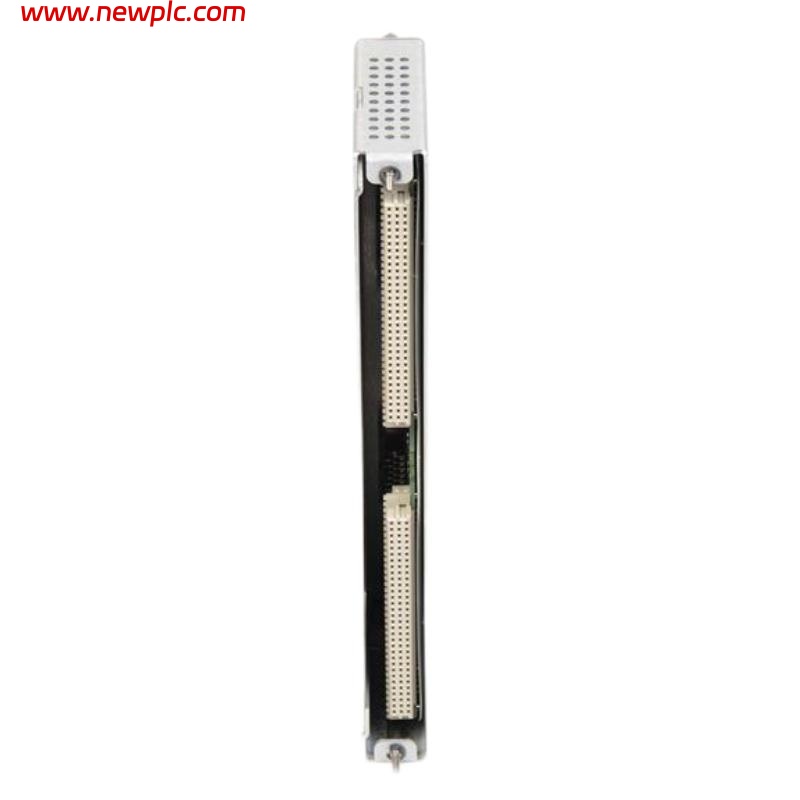

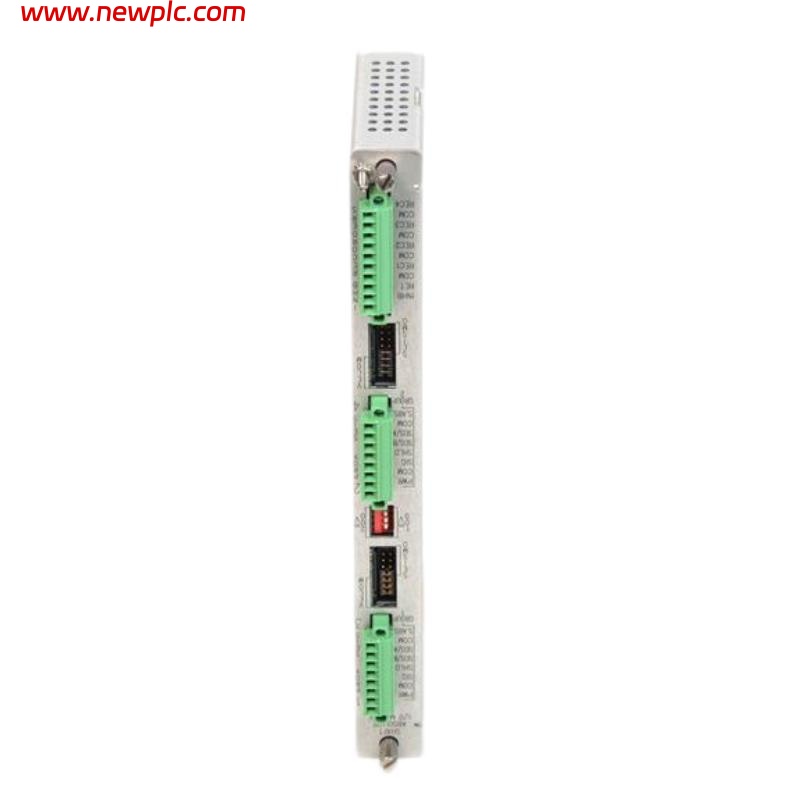

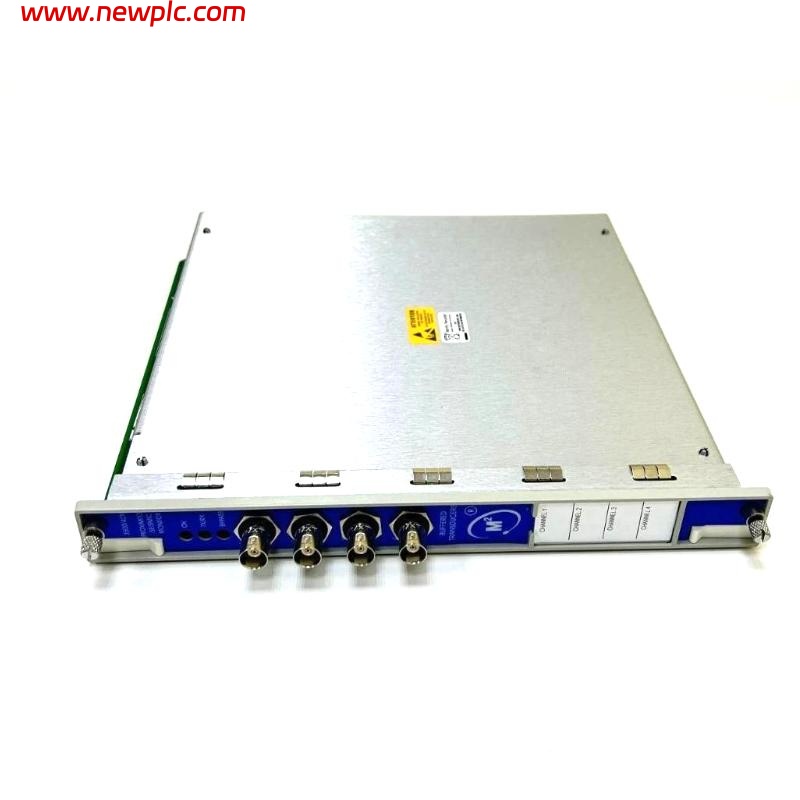

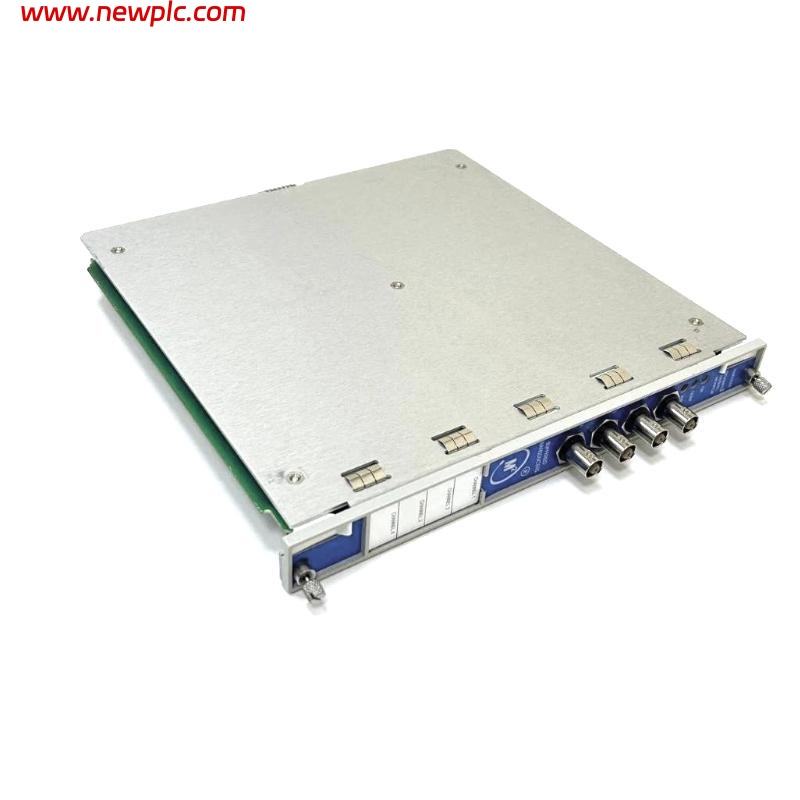

| Product Model | Bently Nevada 3500/42M 176449-02 + 138708-01 Proximitor Seismic Monitor |
| Number of Channels | 4 (programmable in pairs) |
| Compatible Inputs | Proximity, velocity, or acceleration transducers |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor & acceleration inputs) |
| Output Type | 4–20 mA proportional to full scale, buffered transducer outputs, shaft absolute buffered outputs |
| Output Impedance | Standard I/O: 550 Ω, Shaft Absolute: 300 Ω |
| Recorder Output Load | 0–600 Ω, 0–12 V compliance |
| Accuracy | ±0.33% FS typical (most measurements) |
| Environmental Limits | Operating: -30°C to +65°C (with internal/external termination I/O) / 0°C to +65°C (with barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions (Main Board) | 241.3 × 24.4 × 241.8 mm |
| Weight (Main Board) | 0.91 kg |
FAQ
FAQ
Q1: What parameters can this monitor measure simultaneously?
A1: It can measure radial vibration, thrust position, eccentricity, differential expansion, REBAM, acceleration, velocity, and shaft absolute parameters.
Q2: How are the channels configured?
A2: Channels are programmed in pairs, allowing different monitoring functions to be performed within the same module.
Q3: Does it have intrinsically safe versions?
A3: Yes, intrinsically safe versions are available using I/O modules with internal barriers.
Q4: What types of output signals does it provide?
A4: It provides 4–20 mA recorder outputs, buffered transducer outputs, and shaft absolute buffered outputs.
Q5: What is the operating temperature range?
A5: -30°C to +65°C for standard I/O modules or 0°C to +65°C for barrier I/O modules.
Q6: What is the measurement accuracy?
A6: Most parameters have a typical accuracy of ±0.33% of full scale.
Q7: Is this model suitable for marine applications?
A7: Yes, it meets ABS and DNV GL marine and offshore application standards.
Q8: How much rack space does the unit occupy?
A8: The front-end monitor occupies one full-height front slot, and the I/O module occupies one full-height rear slot.
