Technical Specifications
| Parameter | Description |
|---|---|

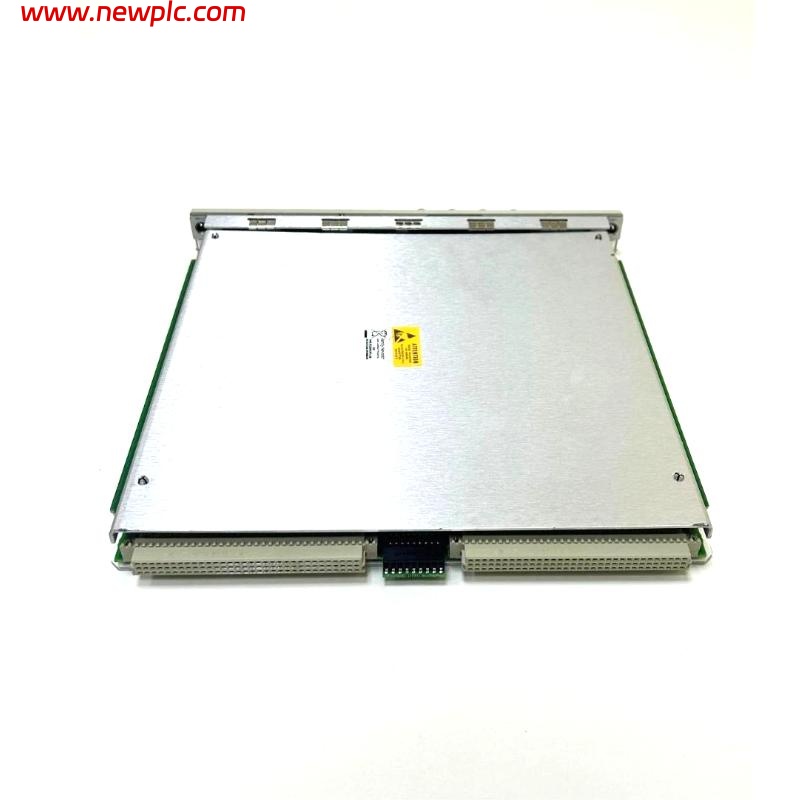

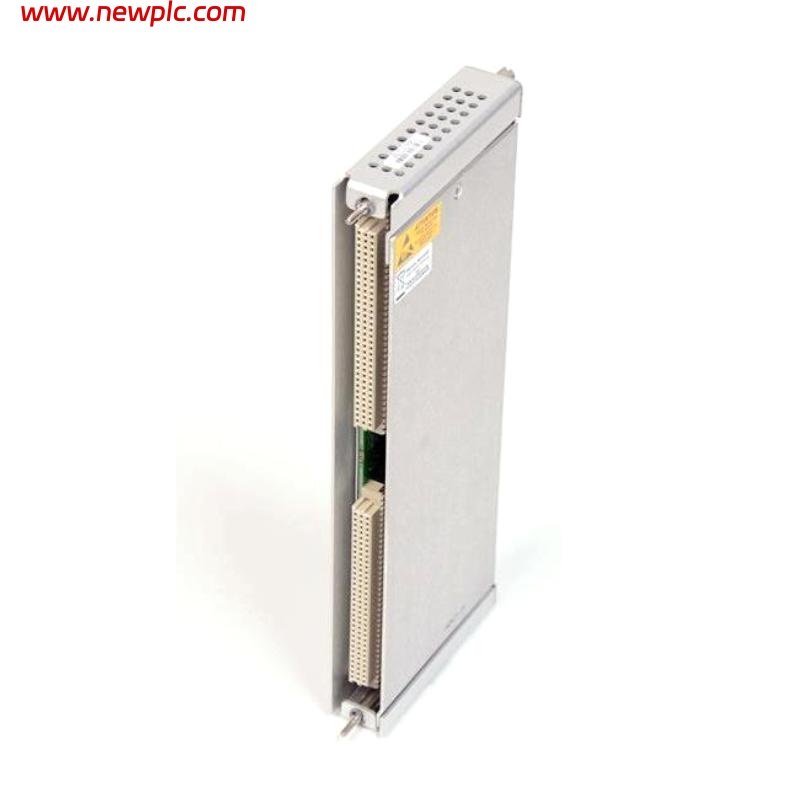

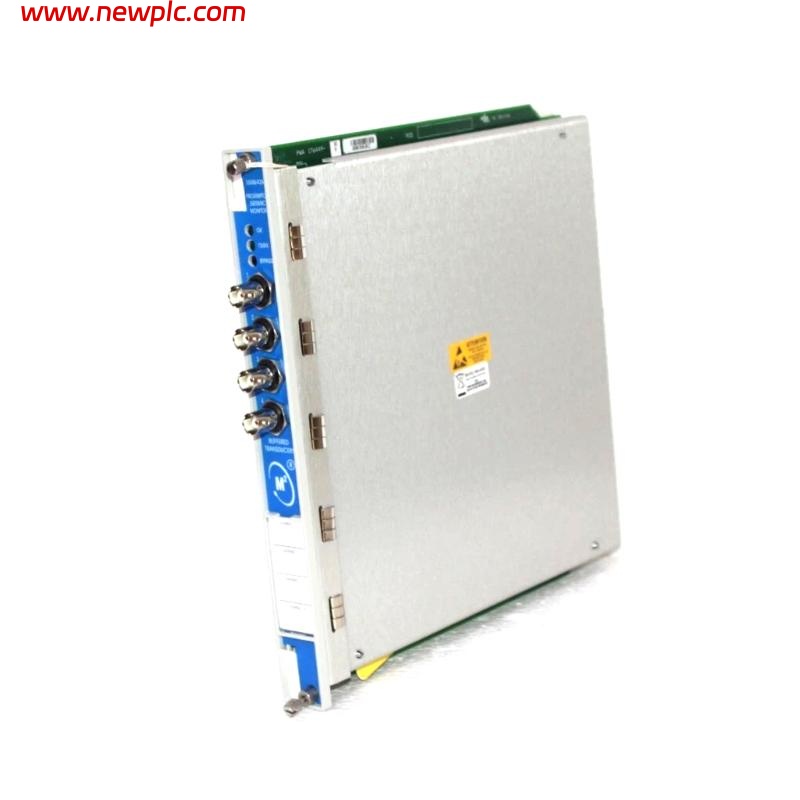

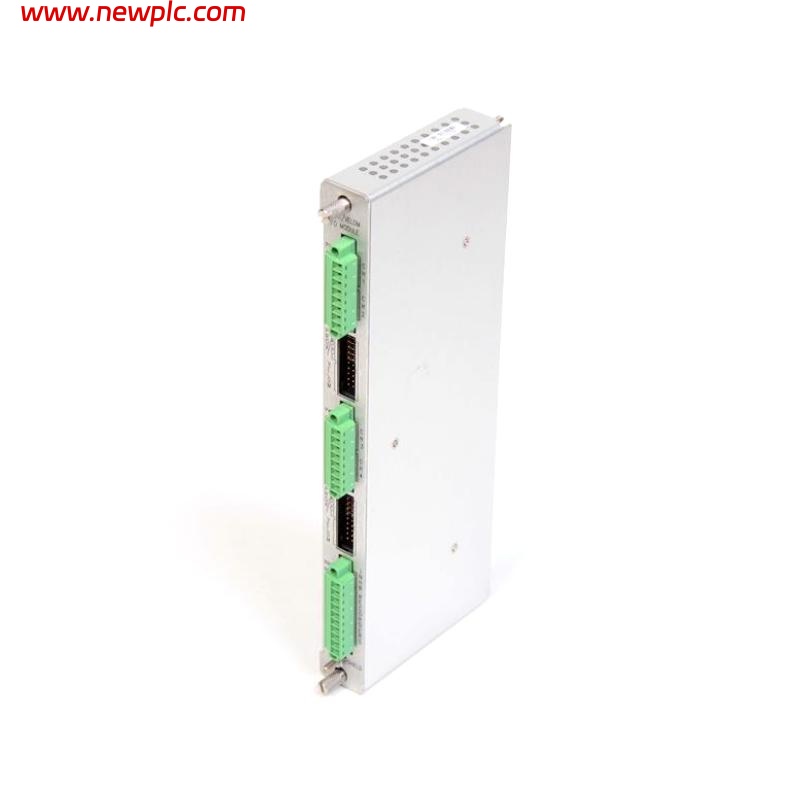

| Model | Bently Nevada 3500/42M 176449-02 + 140471-01 Proximitor Seismic Monitor |
| Input Signals | Accepts 1 to 4 proximity, velocity, or acceleration transducer signals |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Multiple modes for vibration/thrust/eccentricity, see datasheet for details |
| Output Types | Buffered transducer outputs, +4 to +20 mA recorder outputs |
| Output Impedance | Buffered output 550 Ω; Shaft Absolute output 300 Ω |
| Transducer Power Supply | -24 Vdc |
| Frequency Response | User-programmable depending on mode, up to 30 kHz |
| Alarm Settings | Configurable via Rack Configuration Software for alert and danger setpoints |
| Operating Temperature | -30°C to +65°C (non-barrier I/O); 0°C to +65°C (barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (Monitor Module) | 241.3 x 24.4 x 241.8 mm |
| Weight (Monitor Module) | 0.91 kg |
| Mounting | Requires one full-height front slot (monitor) and one full-height rear slot (I/O module) in 3500 rack |
| Certifications | FCC, CE, RoHS, ABS, DNV GL, and multiple hazardous area approvals |
FAQ
FAQ
Q1: What parameters does this device monitor?
A1: It can monitor radial vibration, thrust position, eccentricity, differential expansion, acceleration, velocity, shaft absolute, and REBAM.
Q2: Does it support multiple sensor types?
A2: Yes, it supports Proximitor proximity probes, Velomitor velocity sensors, and accelerometers.
Q3: How are alarm thresholds configured?
A3: Alarm (Alert) and danger setpoints can be configured via the 3500 Rack Configuration Software.
Q4: What types of outputs are available?
A4: Buffered transducer outputs and 4-20 mA recorder outputs.
Q5: What is the typical power consumption of the module?
A5: The typical power consumption is 7.7 W.
Q6: Is the product suitable for hazardous area use?
A6: Yes, it has multiple hazardous area certifications (e.g., ATEX, IECEx, CSA) and can be used in Zone 2 and Class I, Division 2 locations.
Q7: How much rack space is required for installation?
A7: It requires one full-height front slot (monitor) and one full-height rear slot (I/O module).
Q8: What is the operating temperature range?
A8: -30°C to +65°C for non-barrier I/O modules and 0°C to +65°C for barrier I/O modules.
