Technical Specifications
| Item | Specification |
|---|---|

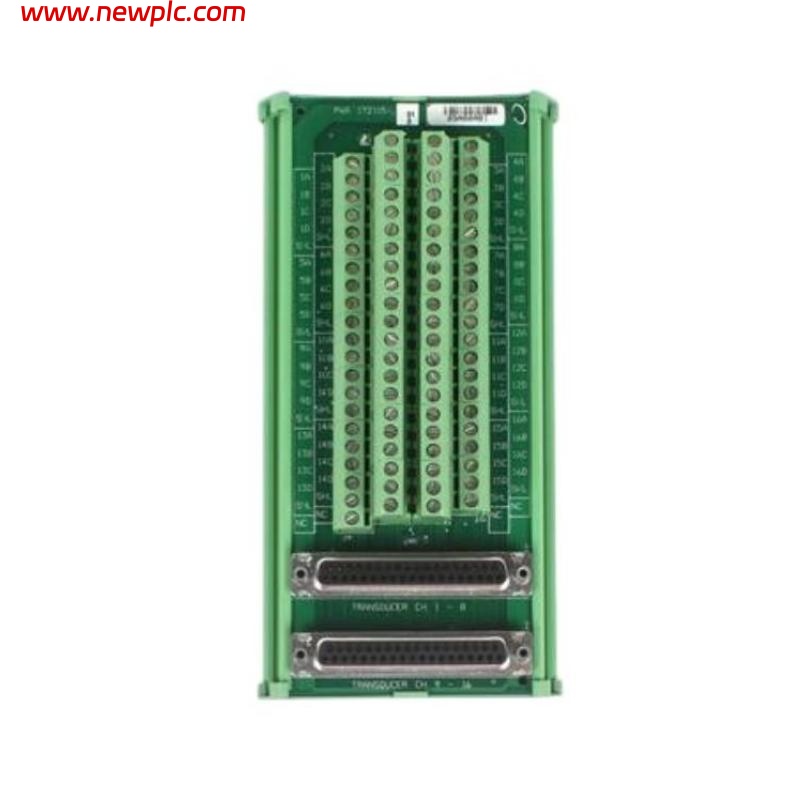

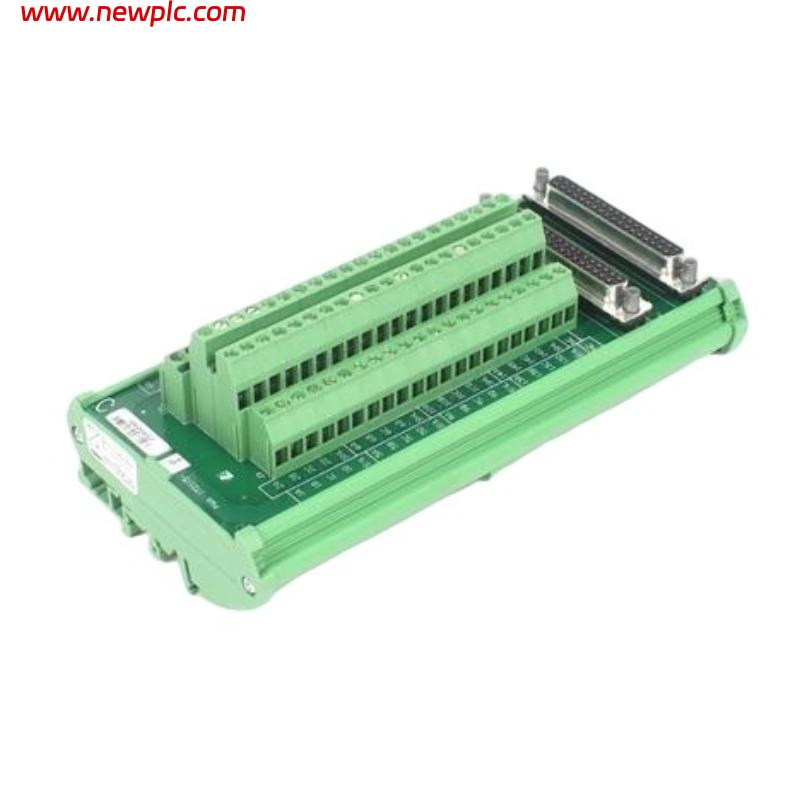

| Product Name | Bently Nevada 3500/65 172115-01 RTD/Isolated Tip TC External Terminal Block |
| Manufacturer | Bently Nevada |
| Type | External Terminal Block |
| Input Type | RTD / Isolated Tip Thermocouple |
| Output Type | Transmits signals to I/O module |
| Communication | Connected via 3500 System Bus |
| Operating Temp. | 0 ～ 60 ℃ |
| Storage Temp. | -40 ～ 85 ℃ |
| Humidity Range | 5% ～ 95% (non-condensing) |
| Mounting Method | External installation for 3500 system rack |
| Dimensions | 150 × 100 × 50 mm |
| Weight | 0.8 kg |
FAQ
FAQ
Q1: What is the main purpose of this external terminal block?
It is used to transmit RTD or isolated tip thermocouple signals to the 3500/65 I/O module, facilitating wiring and maintenance.
Q2: What types of sensors are supported?
It supports RTD (resistance temperature detectors) and isolated tip thermocouple inputs.
Q3: Does the module provide isolation?
Yes, the thermocouple inputs are isolated to ensure signal safety.
Q4: Is it compatible with the Bently 3500 system?
Yes, it is specifically designed for the 3500/65 series and fully compatible.
Q5: What are the environmental conditions for this module?
Operating temperature is 0 ～ 60 ℃, humidity 5% ～ 95% non-condensing.
Q6: Can it be hot-swapped?
No, it does not support hot-swapping; power must be turned off before wiring or replacement.
Q7: Is maintenance complex?
No, maintenance is simple, requiring only a clean and ventilated cabinet.
Q8: Is it easy to install?
Yes, the module has a compact design and external mounting, making wiring and replacement convenient.
