Technical Specifications
| Item | Specification |
|---|---|

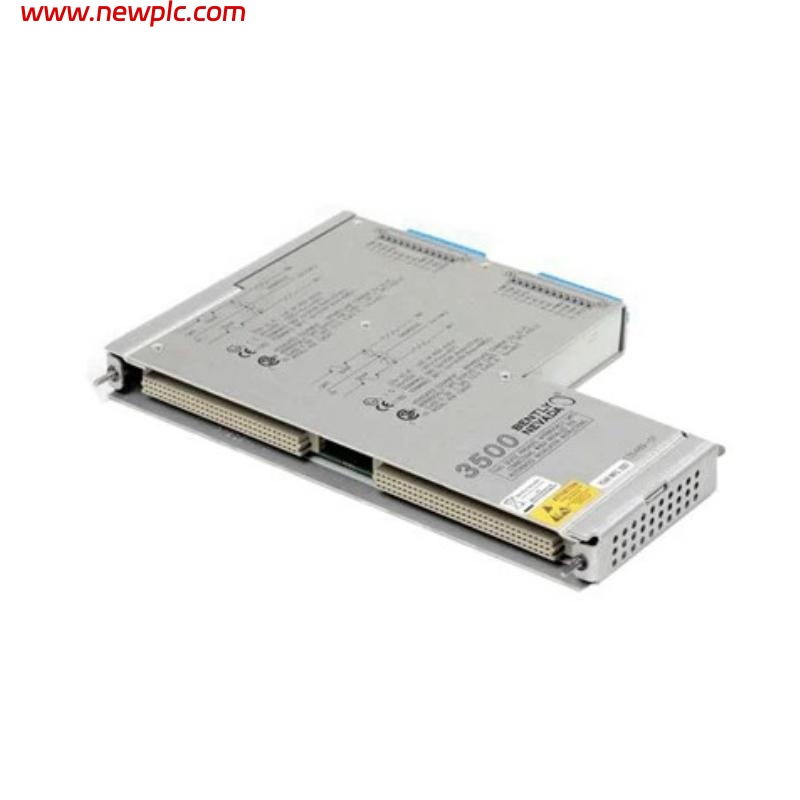

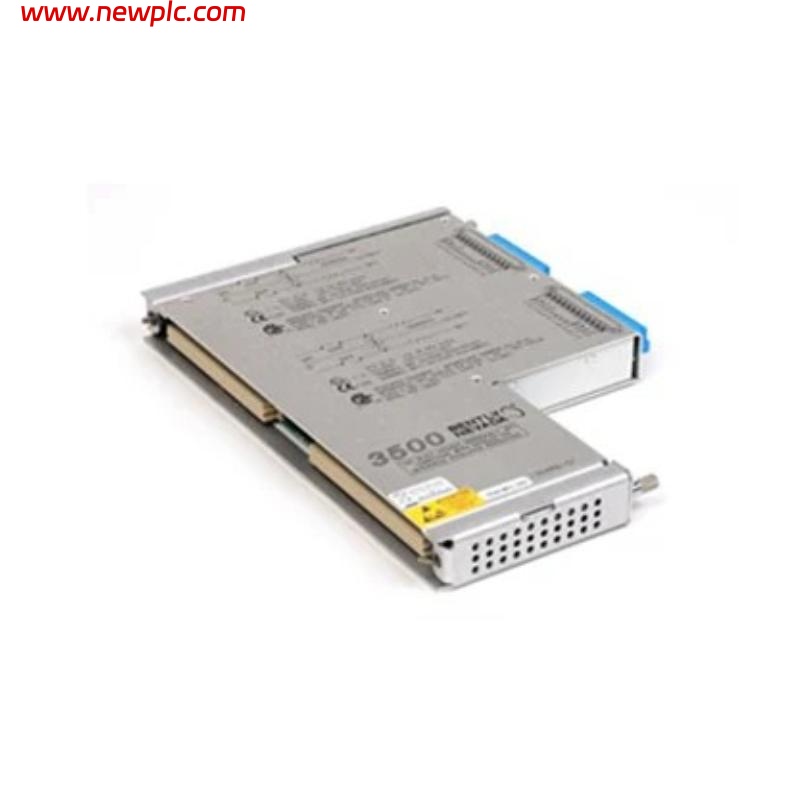

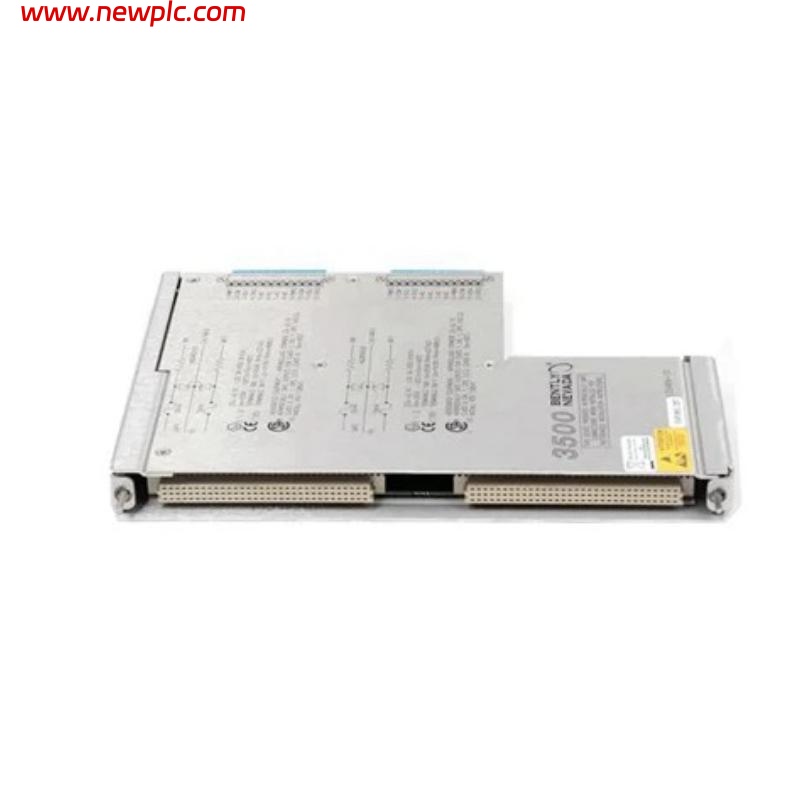

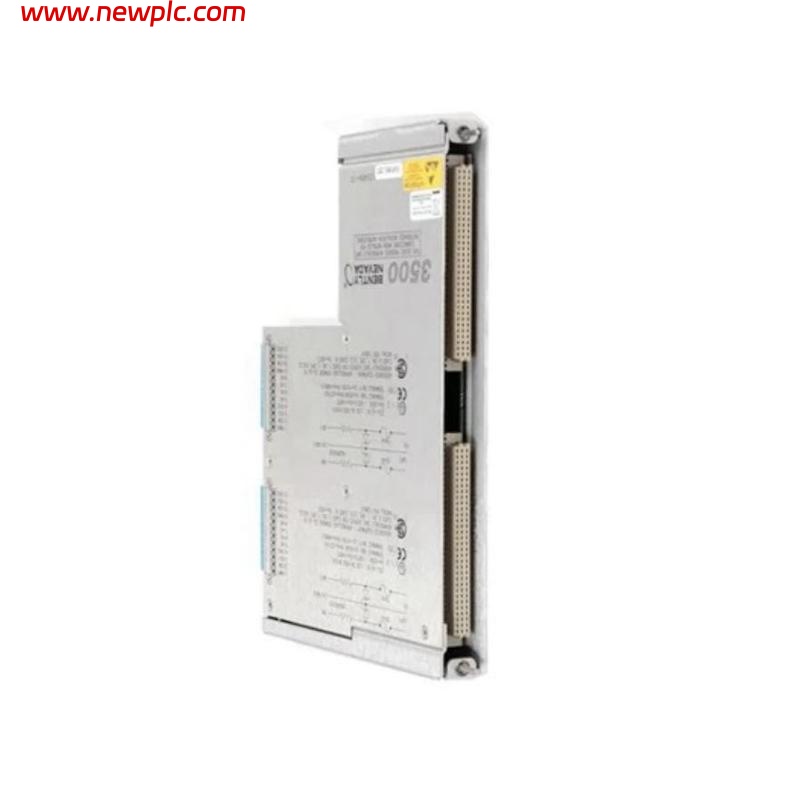

| Product Name | Bently Nevada 3500/72M 135489-01 Reciprocating Rod Position Monitor |
| Manufacturer | Bently Nevada |
| Type | Reciprocating Rod Position Monitor |
| Input Type | Displacement sensor / LVDT |
| Channels | 2 channels (independent configuration per channel) |
| Output Type | Analog / Digital signals |
| Communication | 3500 Rack System Bus |
| Alarm Functions | 2 levels (High / Low) per channel, fully programmable |
| Power Supply | Powered via 3500 rack backplane |
| Operating Temp. | 0 ～ 60 ℃ |
| Storage Temp. | -40 ～ 85 ℃ |
| Humidity Range | 5% ～ 95% (non-condensing) |
| Mounting Method | 3500 Series rack-mounted plug-in module |
| Dimensions | 241.3 x 24.4 x 163.1 mm |
| Weight | 0.46 kg |
FAQ
FAQ
Q1: What is the primary function of the 3500/72M 135489-01?
It is designed to monitor reciprocating machinery piston rod position and detect rod drop or wear conditions.
Q2: How many channels does this module provide?
It provides 2 fully independent monitoring channels.
Q3: What types of sensors can be used with this module?
It is compatible with displacement probes and LVDT transducers.
Q4: Does it integrate into the 3500 Monitoring System?
Yes, it is a standard rack-mounted plug-in module for the 3500 system.
Q5: Are alarm thresholds programmable?
Yes, each channel supports independently programmable high and low alarm limits.
Q6: What are the environmental operating limits?
It works within 0 ～ 60 ℃ and 5% ～ 95% humidity (non-condensing).
Q7: Does it support hot-swapping during operation?
No, the module does not support hot-swapping; power must be off for installation or replacement.
Q8: How easy is the installation process?
It uses a modular plug-in design, making installation and replacement straightforward.
