Technical Specifications
| Parameter Category | Technical Description |
|---|---|

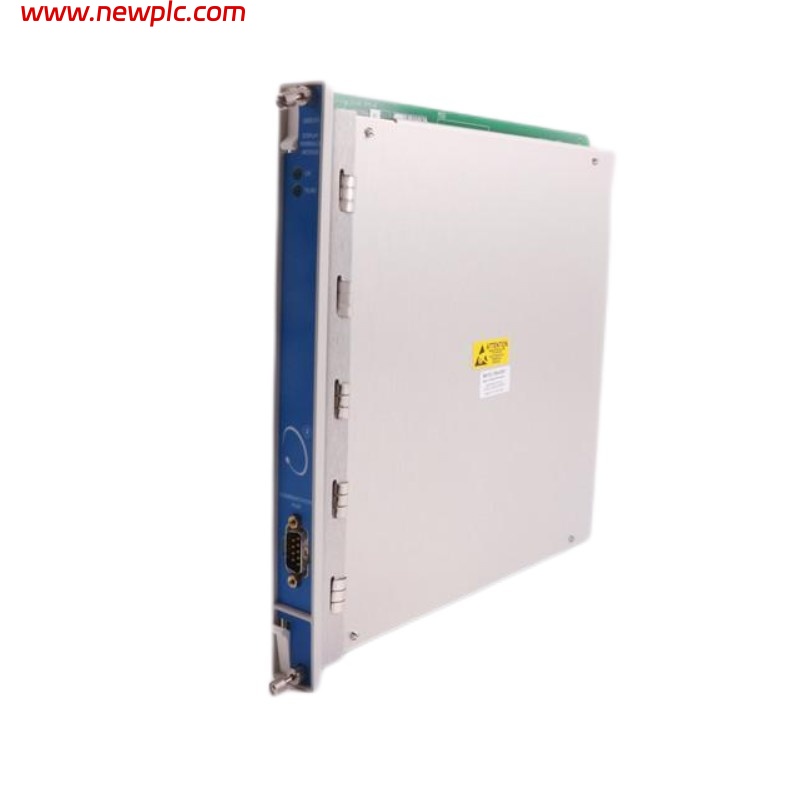

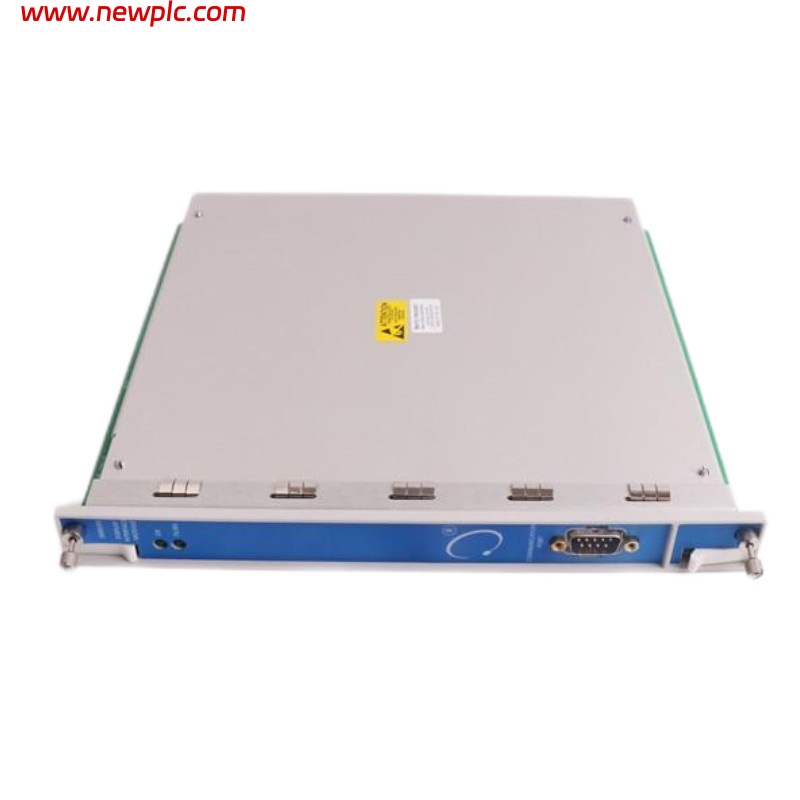

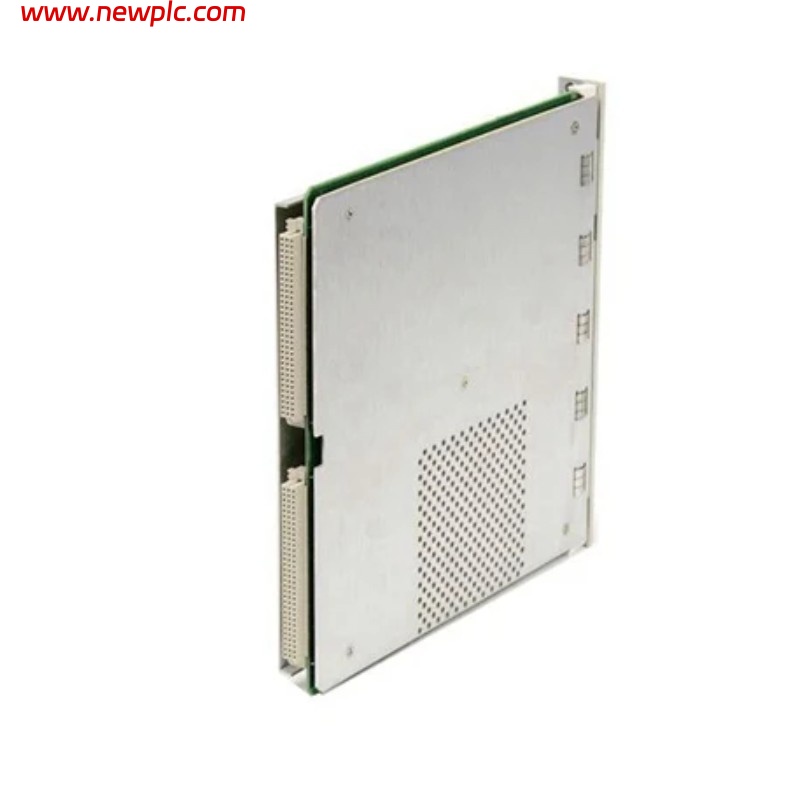

| Product Model | Bently Nevada 3500/93 135799-01 Display Interface Module |
| Function | Provides local display interface for 3500 rack monitoring data; supports external displays |
| Input Interface | Interfaces with the 3500 rack internal data bus |
| Display Interface | VGA / LCD panel interface (depending on configuration) |
| Supported Display | Channel values, alarm information, rack status, diagnostic data |
| Data Update Rate | Up to once per second |
| Power Requirement | Powered from 3500 rack, power consumption ≤ 9 W |
| Communication | Can operate in conjunction with 3500/90 gateway for remote display |
| Alarm Indication | Built-in LED indicators for alarms and operating status |
| Operating Environment | Operating temperature: 0 ~ +65°C; Storage: -40 ~ +85°C; Humidity: 95% non-condensing |
| EMC Compliance | Meets CE and FCC industrial EMC standards |
| Redundancy Support | Supports redundant display systems for reliable operation |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.82 kg |
FAQ
FAQ
Q1: What types of data can this display module show?
A1: It can display channel measurements, alarm states, rack status, and diagnostic information.
Q2: How does the module communicate with the 3500 rack?
A2: It communicates through the high-speed internal rack data bus.
Q3: Can data be displayed on an external screen?
A3: Yes, it supports external monitors via VGA/LCD interface.
Q4: What is the data update frequency?
A4: Data can be refreshed as fast as once per second.
Q5: Does the module work with the communication gateway?
A5: Yes, it can operate with the 3500/90 gateway for remote data display.
Q6: How is the power supplied?
A6: Power is provided by the 3500 rack, with consumption up to 9W.
Q7: What alarm indication features are available?
A7: Built-in LED indicators show alarms, operating, and communication status.
Q8: Does the module support redundant operation?
A8: Yes, it supports redundant display modules to ensure reliable operation.
