Technical Specifications
| Parameter Category | Technical Description |
|---|---|

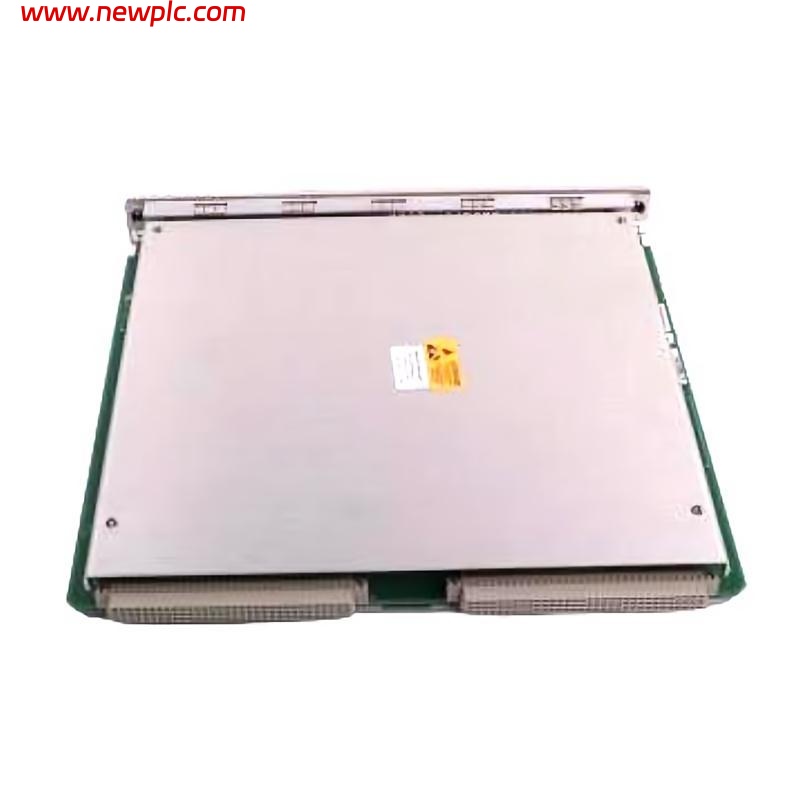

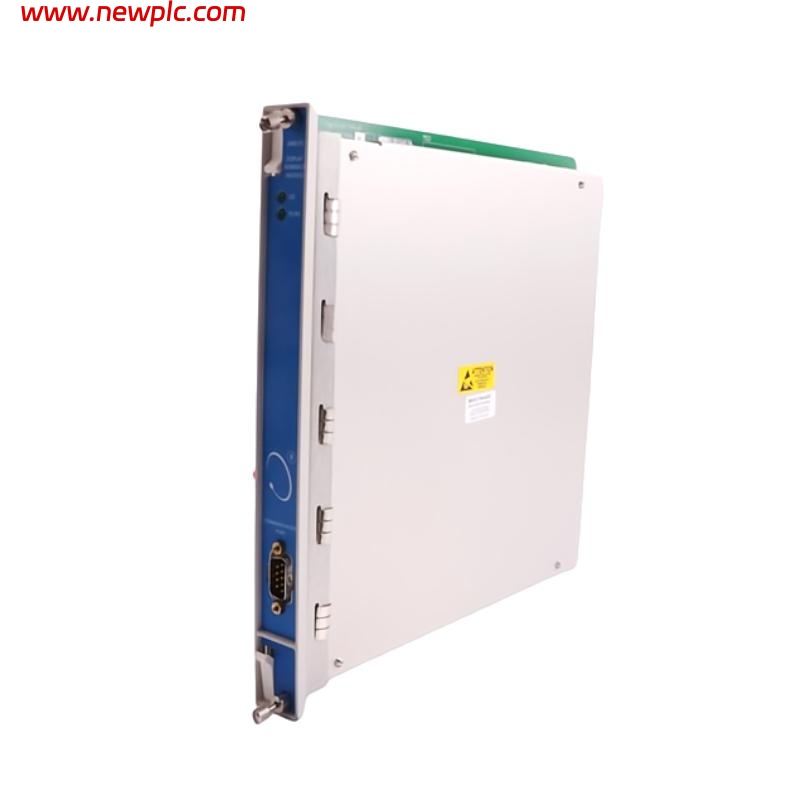

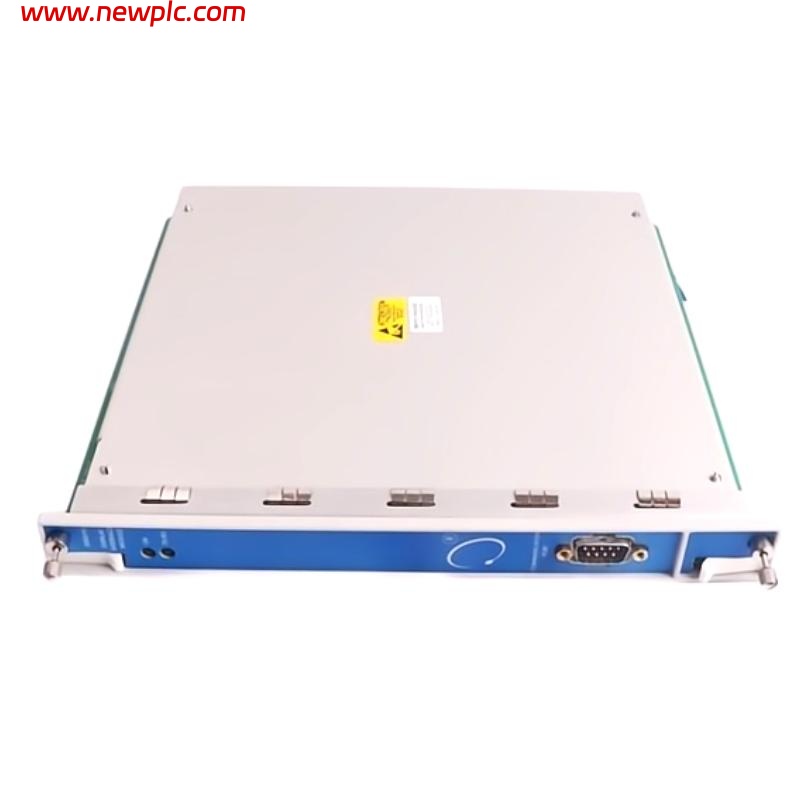

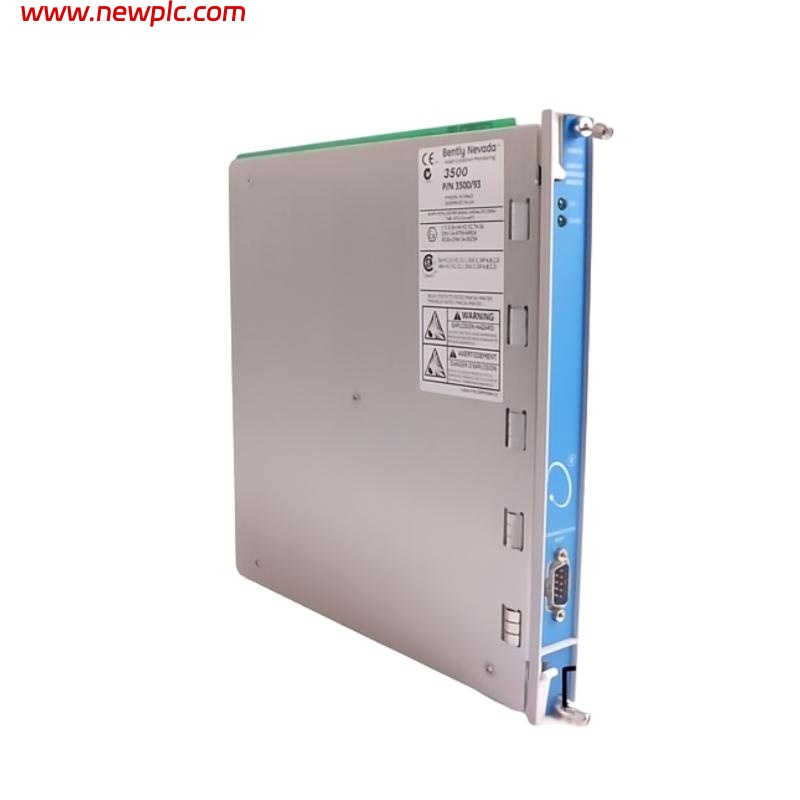

| Product Model | Bently Nevada 3500/93 135799-02 Display Interface Module |
| Function | Provides local display interface for 3500 rack data, supports external display devices |
| Input Interface | Interfaces with the 3500 rack internal data bus |
| Display Interface | VGA / LCD panel interface (depending on configuration) |
| Supported Display | Channel measurements, alarm status, rack operating state, diagnostic data |
| Data Update Rate | Up to once per second |
| Power Requirement | Powered from the 3500 rack, max consumption ≤ 9 W |
| Communication | Can work with the 3500/90 gateway for remote data display |
| Alarm Indication | Built-in LED indicators for alarms, operation, and communication status |
| Software Support | Compatible with System 1 software for extended data management and remote monitoring |
| Redundancy Support | Supports redundant display modules for reliable operation |
| Operating Environment | Operating temperature: 0 ~ +65°C; Storage: -40 ~ +85°C; Humidity: 95% non-condensing |
| EMC Compliance | Meets CE and FCC industrial EMC standards |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.82 kg |
FAQ
FAQ
Q1: What types of data can this module display?
A1: It can display channel measurements, alarm status, rack status, and diagnostic data.
Q2: How does the module communicate with the 3500 rack?
A2: It communicates through the high-speed internal rack data bus.
Q3: Does it support external monitors?
A3: Yes, it supports external display devices via VGA or LCD interface.
Q4: What is the data update frequency?
A4: Data can be refreshed as fast as once per second.
Q5: Can the module work with the communication gateway?
A5: Yes, it works with the 3500/90 gateway for remote display and data sharing.
Q6: How is the power supplied?
A6: It is powered directly from the 3500 rack, with max consumption of 9W.
Q7: What alarm indication features are available?
A7: Built-in LED indicators show alarms, communication status, and operational state.
Q8: Does the module support redundancy?
A8: Yes, it supports redundant display configurations to ensure reliable and continuous display.
