Technical Specifications
| Parameter | Specification |
|---|---|

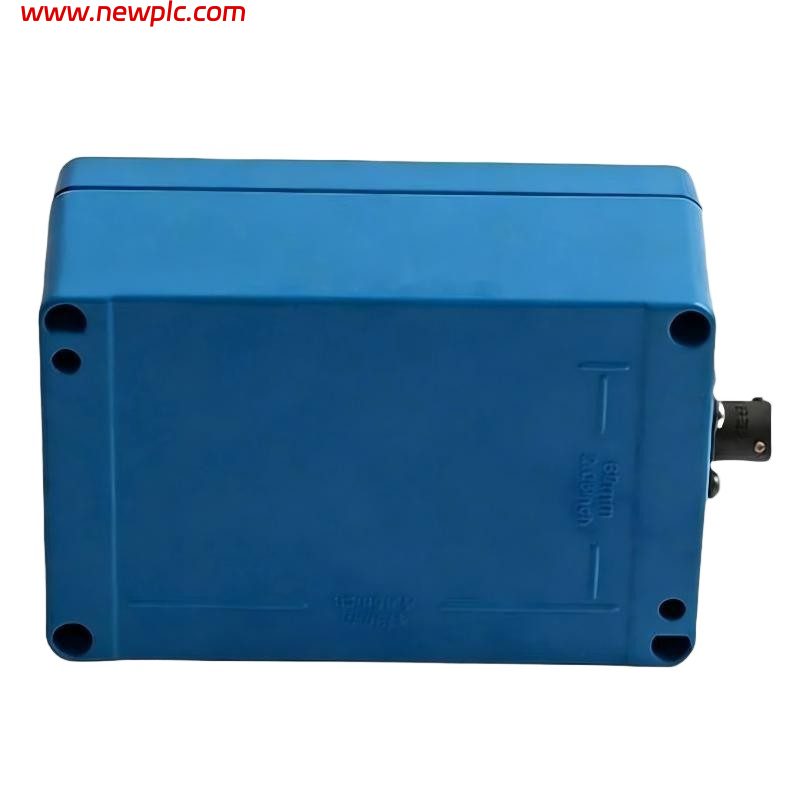

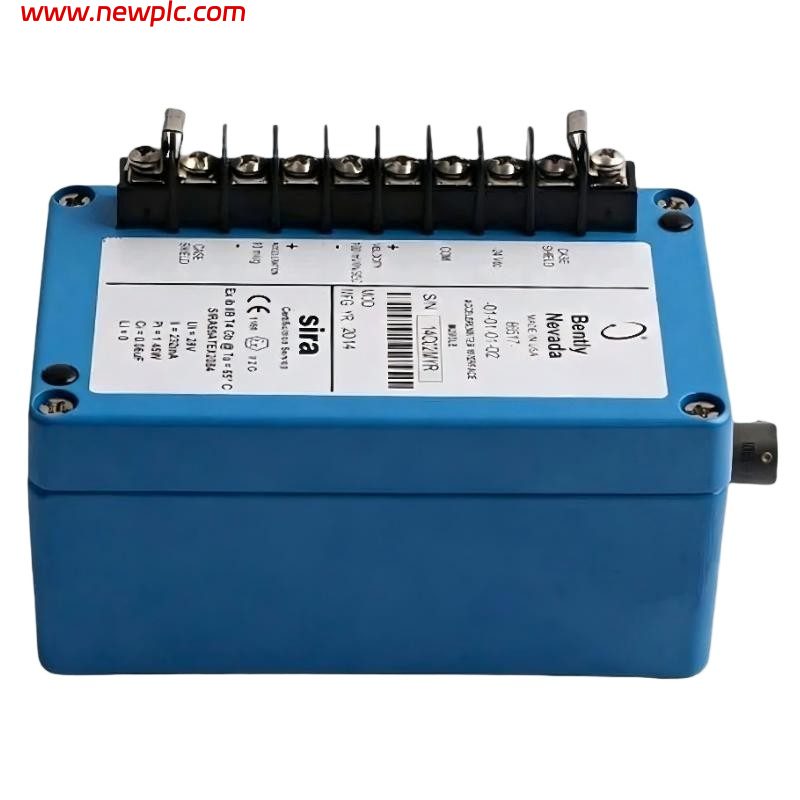

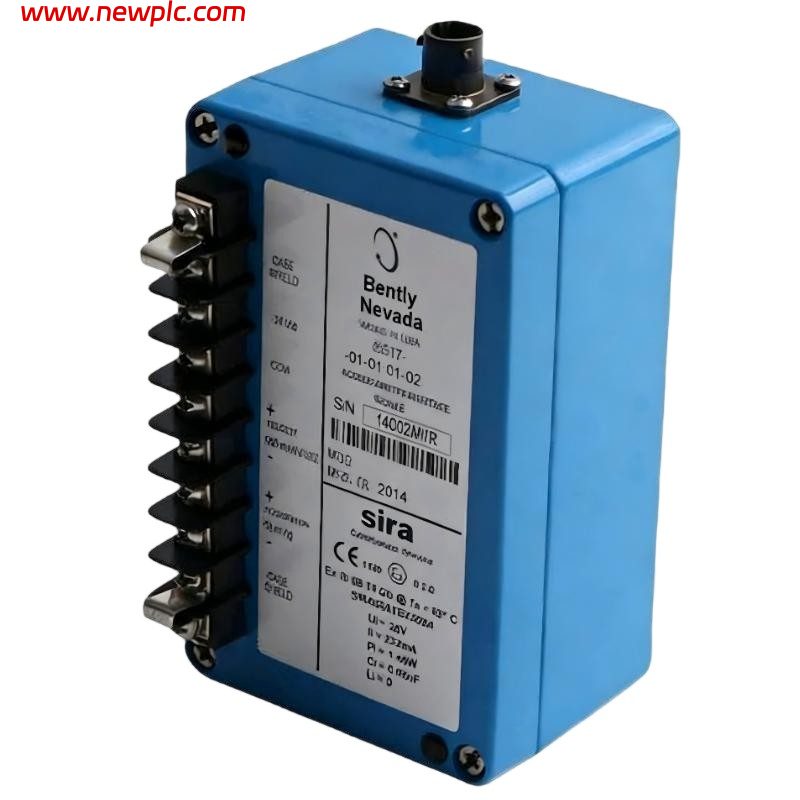

| Product Name | Bently Nevada 86517-01-01-01-02 |
| Product ID | 86517-01-01-01-02 |
| Manufacturer | Bently Nevada |
| Product Type | Accelerometer Interface Module |
| Series | 3300 XL / Vibration Monitoring Interface System |
| Function | Converts and conditions accelerometer signals for vibration monitoring systems |
| Input Type | Accelerometer / charge input (piezoelectric sensor compatible) |
| Charge Sensitivity | 50 pC/g (typical configuration) |
| Velocity Output | 100 mV/in/sec (or system equivalent scaling) |
| Acceleration Output | 10 mV/g |
| Filter Settings | High-pass 25 Hz / Low-pass 350 Hz (typical configuration) |
| Signal Bias | -10 VDC |
| Supply Voltage | 24 VDC nominal |
| Power Consumption | ~1.3 W |
| Operating Temperature | 0°C to +70°C |
| Environmental Protection | Industrial / hazardous-area capable (depending on housing configuration) |
| Mounting Type | Rack or enclosure mounted interface module |
| Signal Outputs | Acceleration + Velocity conditioned outputs |
| System Compatibility | Bently Nevada 3300 series monitoring systems |
| Application | Vibration monitoring, machinery protection, compressor/turbine condition monitoring |
| Dimensions | Approx. 140 × 80 × 75 mm |
| Weight | Approx. 0.22–0.56 kg (depending on housing/configuration) |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 86517-01-01-01-02 used for?
It is an accelerometer interface module used to convert raw accelerometer signals into conditioned vibration outputs for machinery monitoring systems.
Q2: What type of sensors does it support?
It supports piezoelectric accelerometers that output charge signals (pC/g range).
Q3: What signals does it provide?
It provides conditioned acceleration (mV/g) and velocity (mV/in/sec) outputs for monitoring systems.
Q4: What does the filtering section do?
The module typically includes a band-pass filter (e.g., 25 Hz to 350 Hz) to isolate relevant vibration frequencies and reduce noise.
Q5: Is it a standalone device?
No. It must be used with a compatible Bently Nevada monitoring rack or system.
Q6: What industries use this module?
It is used in power generation, oil & gas, petrochemical plants, and heavy industrial machinery monitoring applications.
Q7: What is the power requirement?
It operates on 24 VDC and consumes about 1.3 W of power.
Q8: What should be checked before replacement?
Verify charge sensitivity, filter configuration, system compatibility, mounting type, and I/O compatibility with the existing monitoring system before replacement.
