Technical Specifications
| Parameter | Specification |
|---|---|

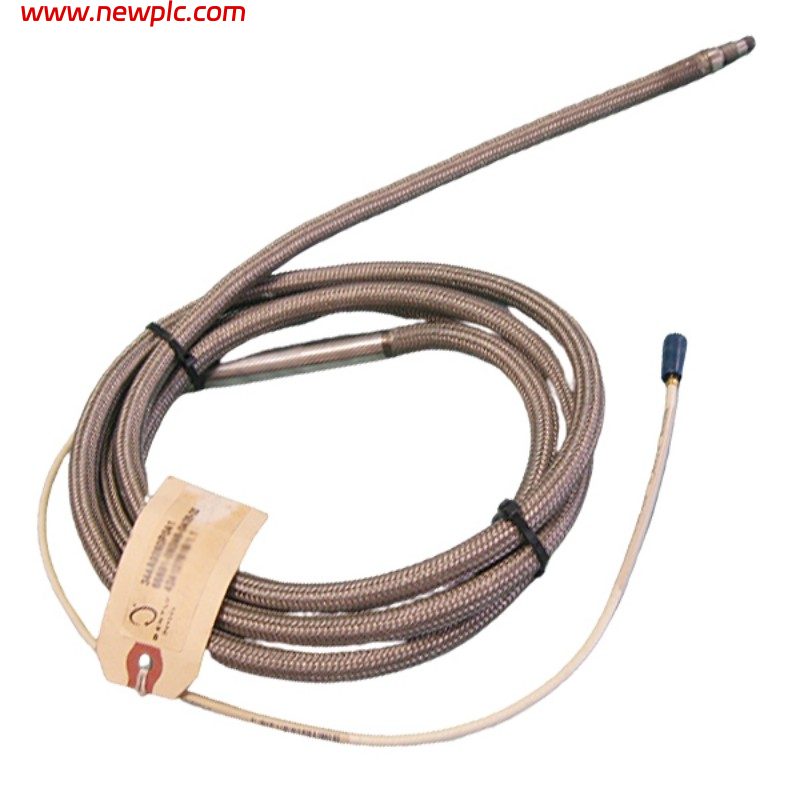

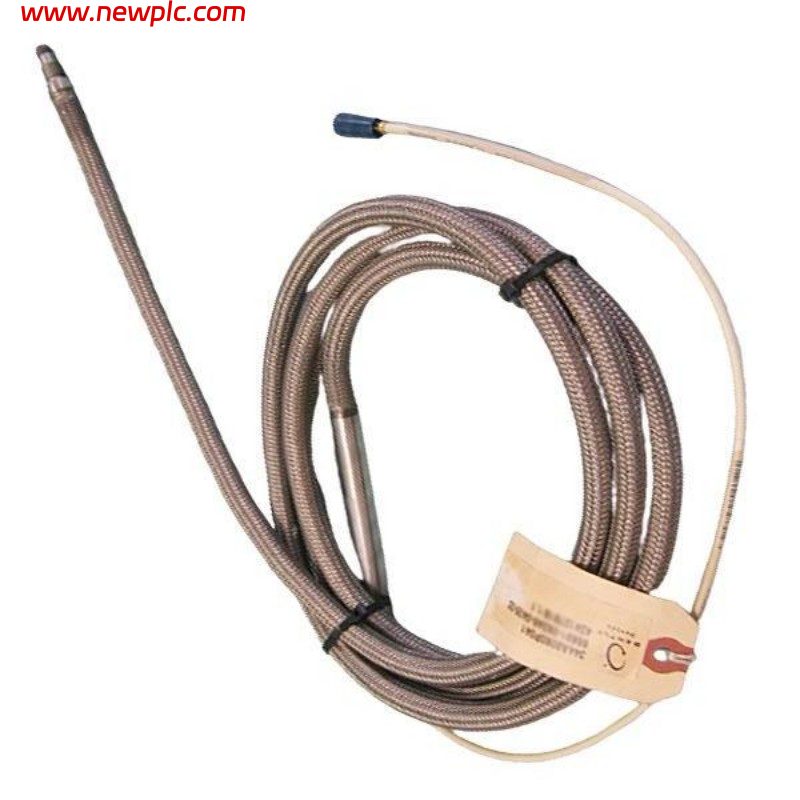

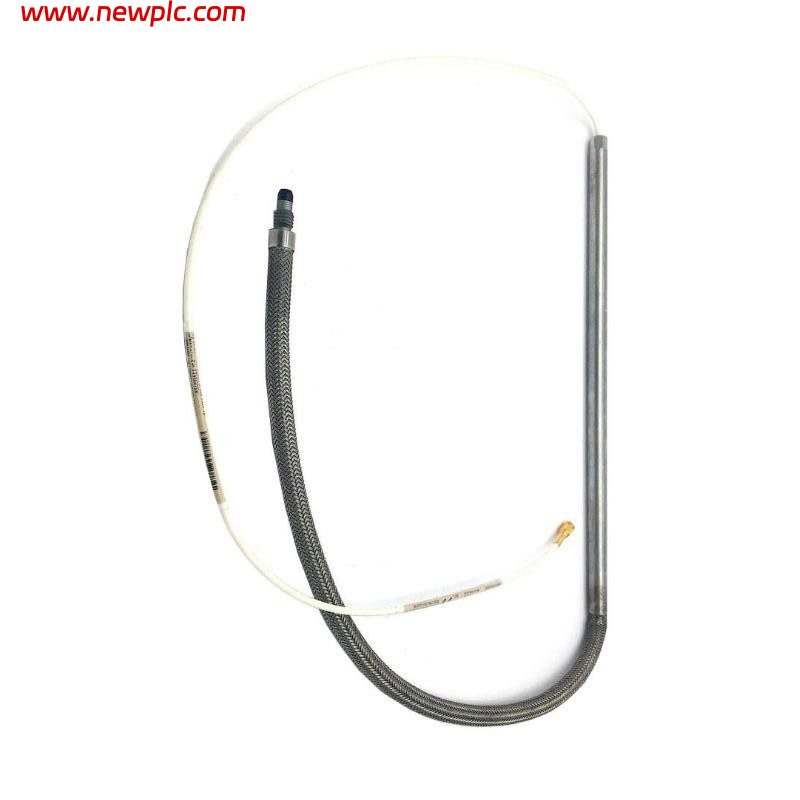

| Product Name | Bently Nevada 86691-01780-1300-15-03 |
| Product ID | 86691-01780-1300-15-03 |
| Manufacturer | Bently Nevada |
| Product Type | Vibration Probe Assembly |
| Series | Industrial Vibration Monitoring Probe Series |
| Function | Non-contact or contact vibration sensing for rotating machinery condition monitoring |
| Measurement Type | Vibration displacement / velocity (system dependent) |
| Configuration Code | 01780-1300-15-03 |
| Probe Length | 1300 mm (approx. 51.2 in) |
| Cable Length | Approx. 1300 mm system cable section (configuration dependent) |
| Probe Body Diameter | Approx. Ø8–10 mm |
| Sensor Head Length | Approx. 60–80 mm |
| Connector Housing | Approx. Ø18–25 mm industrial sealed connector |
| Overall Assembly Length | Approx. 1350–1450 mm |
| Mounting Type | Threaded / bracket-mounted (configuration dependent) |
| Cable Type | Shielded industrial vibration signal cable |
| Output Signal | System-dependent (proximity or vibration conditioned signal) |
| Frequency Response | Approx. 1 Hz – 10 kHz |
| Operating Temperature | −40°C to +85°C |
| Protection Rating | IP65–IP67 equivalent (configuration dependent) |
| Material | Stainless steel + industrial polymer housing |
| Weight | Approx. 1.5–2.5 kg |
| System Compatibility | Bently Nevada vibration monitoring / protection systems |
| Application | Turbines, compressors, pumps, motors, fans, industrial rotating machinery |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 86691-01780-1300-15-03 used for?
It is used for vibration monitoring of rotating machinery to detect imbalance, misalignment, and mechanical wear.
Q2: What does the 1300 in the code mean?
It indicates the probe or assembly length of approximately 1300 mm.
Q3: What is the overall size of the assembly?
The total assembled length is approximately 1350–1450 mm, depending on connector and mounting configuration.
Q4: What is the diameter of the probe?
The probe body diameter is typically around 8–10 mm.
Q5: Is the connector included in the length?
Yes, the connector housing contributes to the overall assembled length.
Q6: Can this be used in all Bently Nevada systems?
No, it must match the specific system configuration and signal conditioning hardware.
Q7: What industries commonly use this part?
It is widely used in oil & gas, power generation, petrochemical, and heavy industrial machinery monitoring.
Q8: What should be verified before replacement?
Verify probe length, mounting type, connector configuration, system calibration, and compatibility with the existing monitoring system.
