Technical Specifications
| Parameter | Specification |
|---|---|

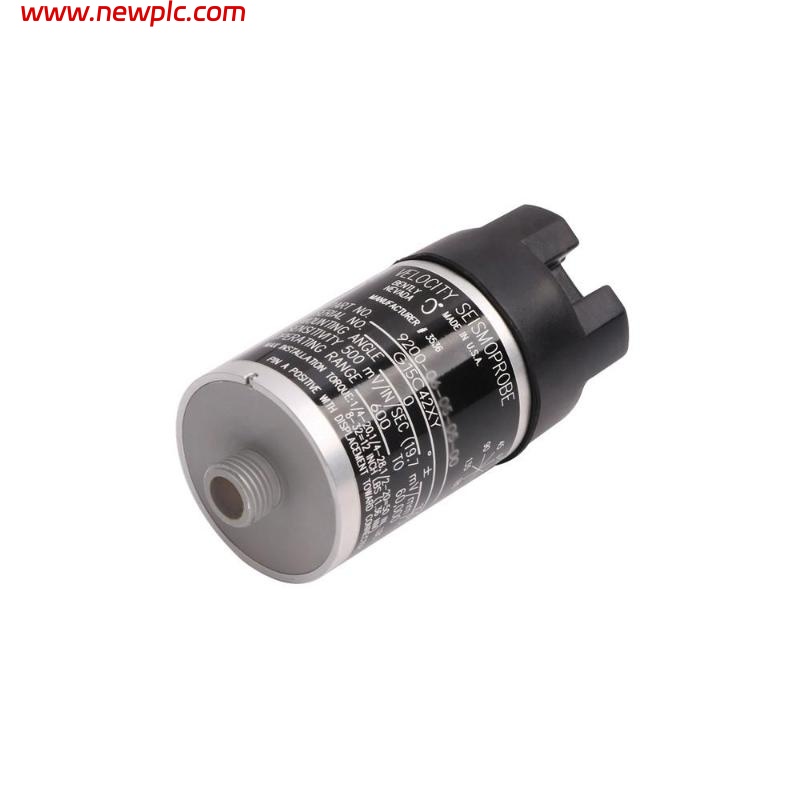

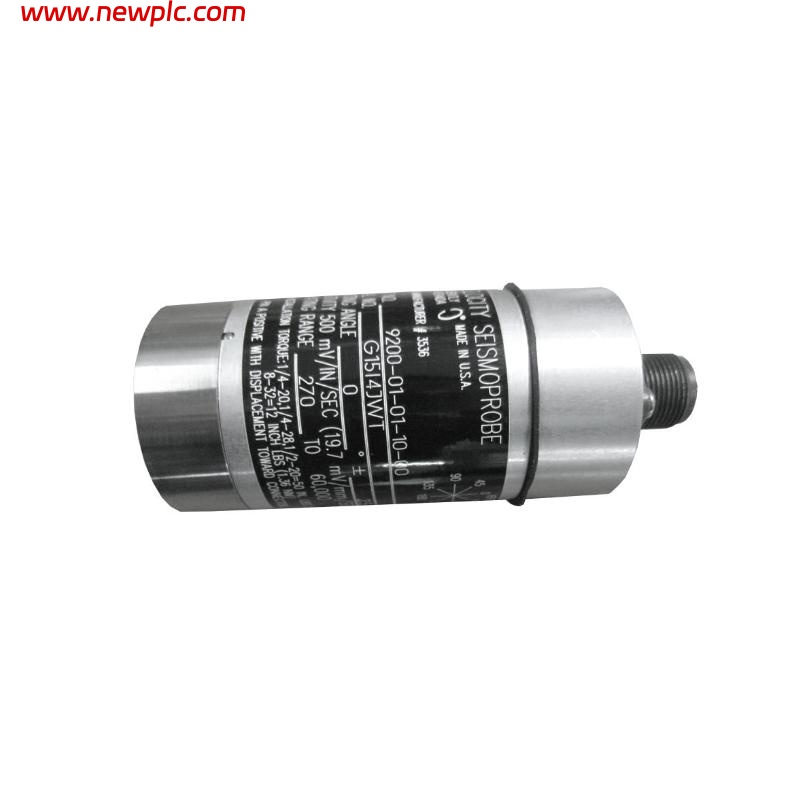

| Product Model | Bently Nevada 9200-09-05-05-00 |
| Product Type | Velocity Transducer |
| Measurement Principle | Electromagnetic velocity sensing |
| Measurement Range | Typically 0 – 50 mm/s (velocity, RMS) |
| Frequency Response | 4.5 Hz to 2 kHz |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) |
| Output Type | Analog voltage output (proportional to vibration velocity) |
| Power Requirement | Self-generating (no external power required) |
| Output Impedance | Approx. 3 kΩ |
| Mounting Type | Stud mount (typically 1/4-28 UNF) |
| Connector Type | Integral cable |
| Cable Length | 5 m |
| Housing Material | Stainless steel |
| Operating Temperature | -54°C to +121°C |
| Environmental Protection | Sealed for industrial environments |
| Orientation Sensitivity | Measures vibration in axial direction of sensor |
| Application | Vibration monitoring of motors, pumps, fans, compressors |
| Dimensions | Sensor body approx. Ø25 mm × 70 mm length; cable length 5 m |
| Weight | Approx. 300 – 400 g (including cable) |
FAQ
FAQ
Q1. What is the function of the 9200-09-05-05-00 transducer?
It measures vibration velocity in rotating machinery and converts it into an electrical signal.
Q2. Does this sensor require external power?
No, it is self-generating and does not require an external power supply.
Q3. What type of output does it provide?
It provides an analog voltage output proportional to vibration velocity.
Q4. What is the typical application of this device?
It is commonly used on motors, pumps, compressors, and fans for condition monitoring.
Q5. How is the sensor mounted?
It is usually installed using a threaded stud mount directly onto the machine surface.
Q6. What is the frequency range of the sensor?
It typically operates between 4.5 Hz and 2 kHz.
Q7. Can it be used in harsh environments?
Yes, it is designed with a sealed stainless steel housing for industrial conditions.
Q8. What does the model code indicate?
The code defines configuration details such as cable length, mounting type, and sensitivity options.
