Technical Specifications
| Parameter | Specification |
|---|---|

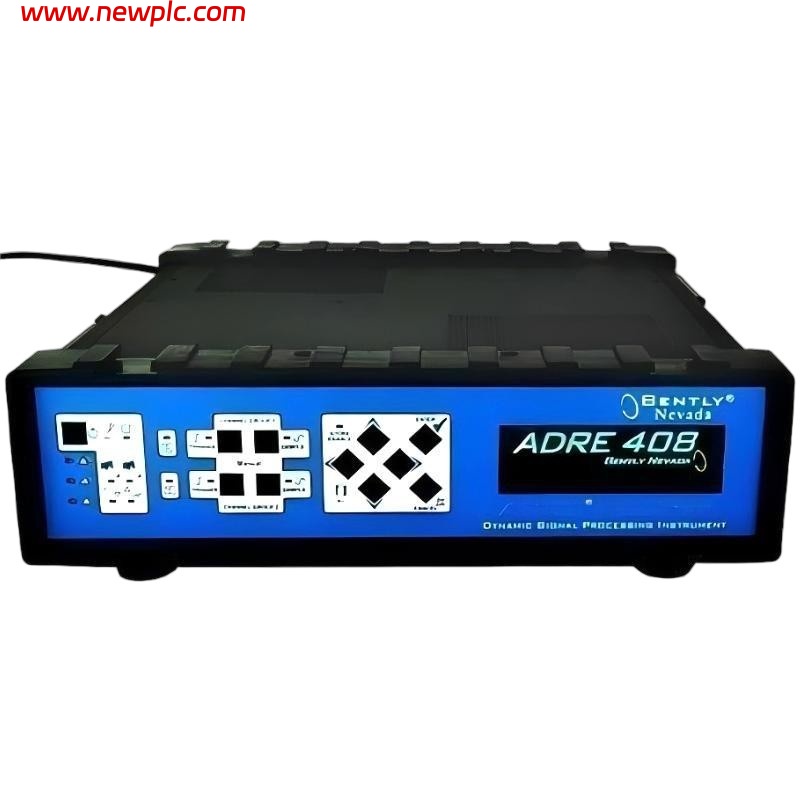

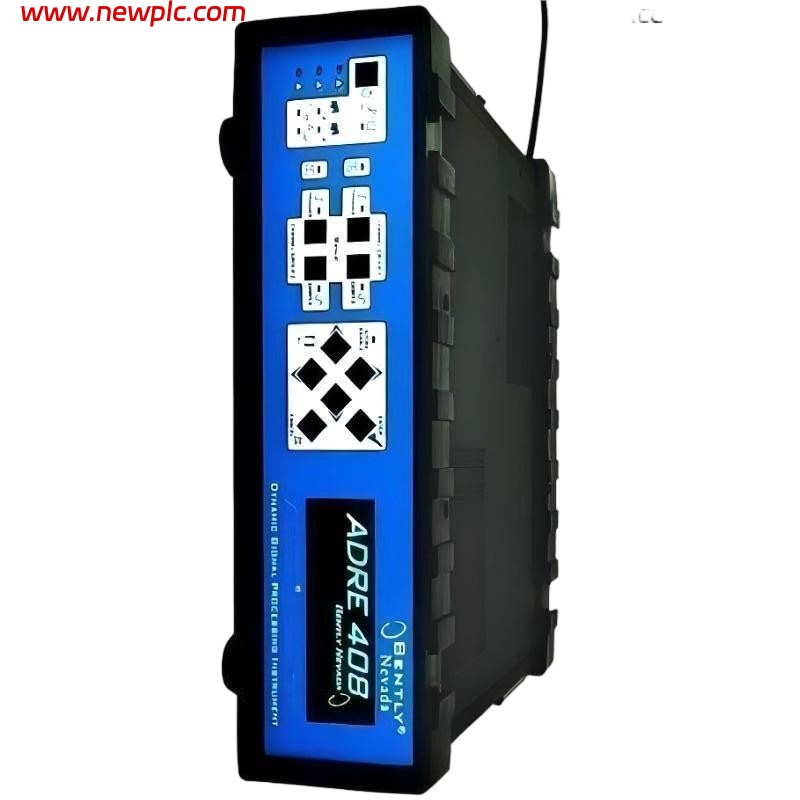

| Product Model | Bently Nevada ADRE 408 168679-01-01-02-03-00-01-01-00-00-02 |
| Product Type | Dynamic Signal Processing Instrument (ADRE 408 DSPi) |
| System Function | Multi-channel data acquisition and vibration analysis system |
| Input Channels | Up to 32 channels (modular cards, typical 8 channels per card) |
| Sampling Rate | Up to 1 MHz (configurable) |
| A/D Resolution | 24-bit high-resolution conversion |
| Input Range | ±10 V / ±5 V / ±2.5 V selectable |
| Supported Sensors | Proximity probes, accelerometers, velocity sensors, pressure sensors |
| Signal Processing | FFT, order tracking, waveform, spectrum, waterfall analysis |
| Data Storage | Internal storage up to ~960 GB (depending on configuration) |
| Communication Interfaces | Ethernet (TCP/IP), USB, RS-485, OPC UA |
| Power Supply | 100–240 VAC or 24 VDC (external supply module) |
| Power Consumption | Approx. 30 W |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -30°C to +80°C |
| Humidity | 0% to 95% RH (non-condensing) |
| Protection Rating | Approx. IP54 enclosure (industrial use) |
| Housing Material | Aluminum chassis with coated panels |
| Dimensions | 361 mm × 410 mm × 100 mm (L × W × H) |
| Weight | Approx. 9.5 kg (main unit) |
| System Configuration | Modular slots (sampling cards, speed input, power supply, replay card) |
| Application | Machinery diagnostics, vibration testing, rotor dynamics analysis |
FAQ
FAQ
Q1. What is the ADRE 408 system used for?
It is used for advanced vibration analysis, transient data capture, and diagnostics of rotating machinery.
Q2. What does this long model number represent?
The full code defines the exact configuration, including installed cards, power supply type, storage, and certifications.
Q3. How many channels can the system support?
Depending on configuration, it can support up to 32 input channels.
Q4. What types of sensors can be connected?
It supports proximity probes, accelerometers, velocity sensors, and other dynamic transducers.
Q5. Does the system support real-time analysis?
Yes, it provides real-time waveform, spectrum, and advanced signal processing functions.
Q6. Can the ADRE 408 operate without a computer?
Yes, it can operate in standalone mode with internal storage and later data retrieval.
Q7. What industries typically use this system?
It is widely used in power plants, oil & gas, petrochemical, and heavy industrial sectors.
Q8. Is the system portable or rack-mounted?
It can be used as a portable diagnostic unit or installed in a rack depending on configuration.
