Technical Specifications
| Item | Specification |
|---|---|
| Model | 990-04-50-01-CN |

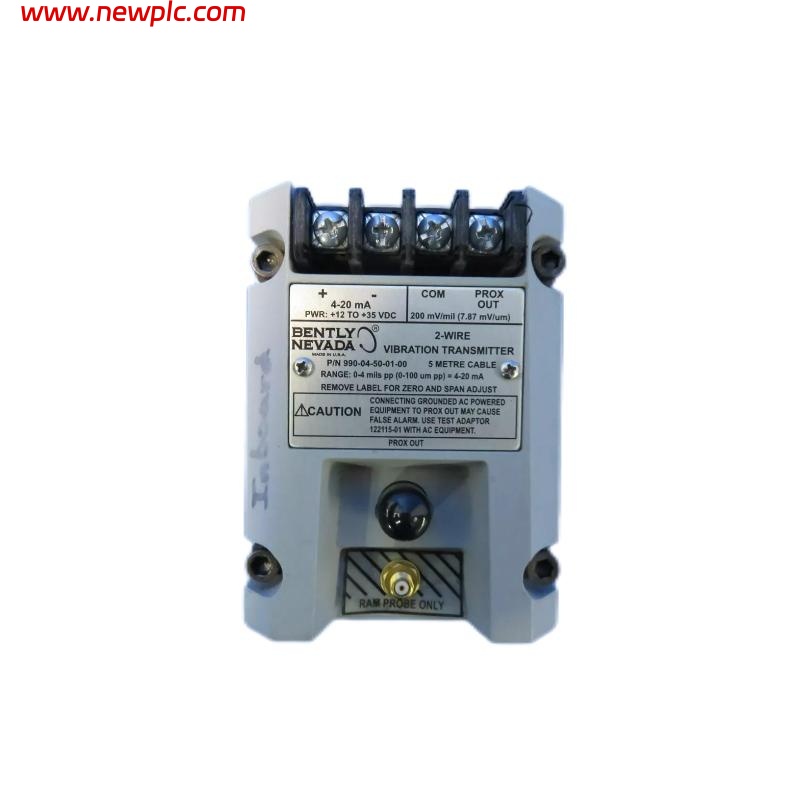

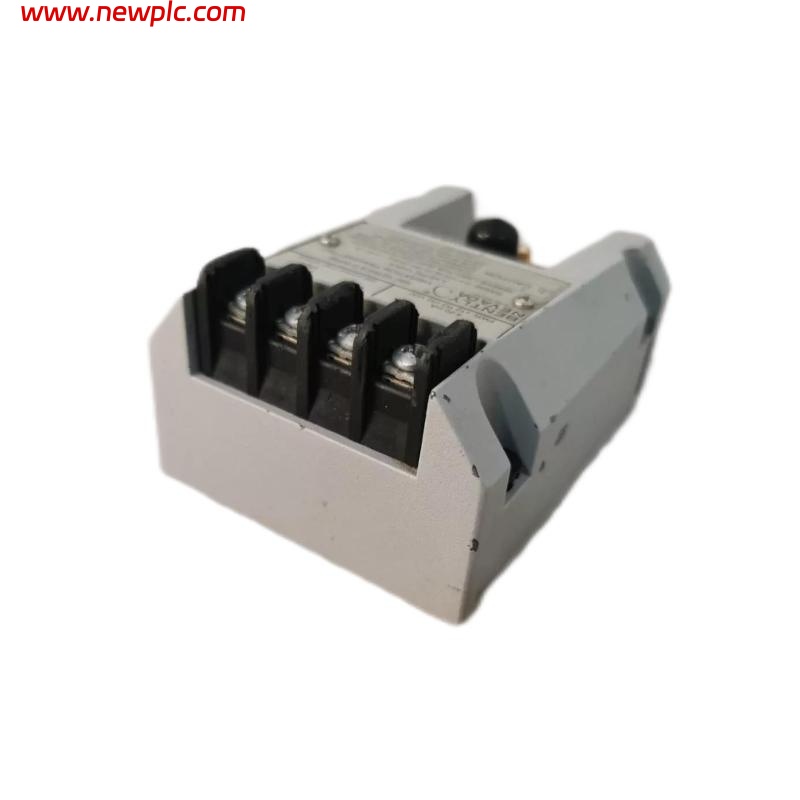

| Type | Bently Nevada 990 Vibration Transducer Interface Module |
| Function | Converts and conditions proximity probe signals for machinery protection and monitoring systems |
| Input | Compatible with Bently Nevada proximity probe systems (e.g., 3300, 3300 XL series) |
| Output | 4–20 mA proportional to vibration or position |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Processing | Linearized displacement or vibration output |
| Mounting Type | DIN rail or panel mount |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (typical) |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | Approximately 0.43 kg |
| Applications | Condition monitoring, machinery protection, and predictive maintenance systems |
FAQ
FAQ
Q1: What is the main function of the 990-04-50-01-CN module?
It converts and conditions vibration or displacement signals from proximity probes into a standard 4–20 mA output for monitoring and control systems.
Q2: Which proximity probes are compatible with this module?
It is compatible with Bently Nevada 3300 and 3300 XL series proximity probes.
Q3: What type of signal output does the module provide?
The module provides a 4–20 mA current output proportional to the vibration amplitude or shaft position.
Q4: How is the 990-04-50-01-CN typically installed?
It can be installed on a DIN rail or mounted on a control panel for easy integration into existing systems.
Q5: What is the power requirement for this module?
The module operates on a nominal 24 VDC power supply.
Q6: What is the operating temperature range?
It is designed to work reliably in environments between -35°C and +70°C.
Q7: Is the output linearized for accurate measurements?
Yes, the output is linearized to ensure precise proportional representation of the measured vibration or displacement.
Q8: What are the common applications of this device?
It is used in machinery protection, condition monitoring, and process control systems in industries like power generation, petrochemicals, and manufacturing.
