Technical Specifications
| Item | Specification |
|---|---|
| Model | 990-04-70-01-00 (P/N 122115-01) |

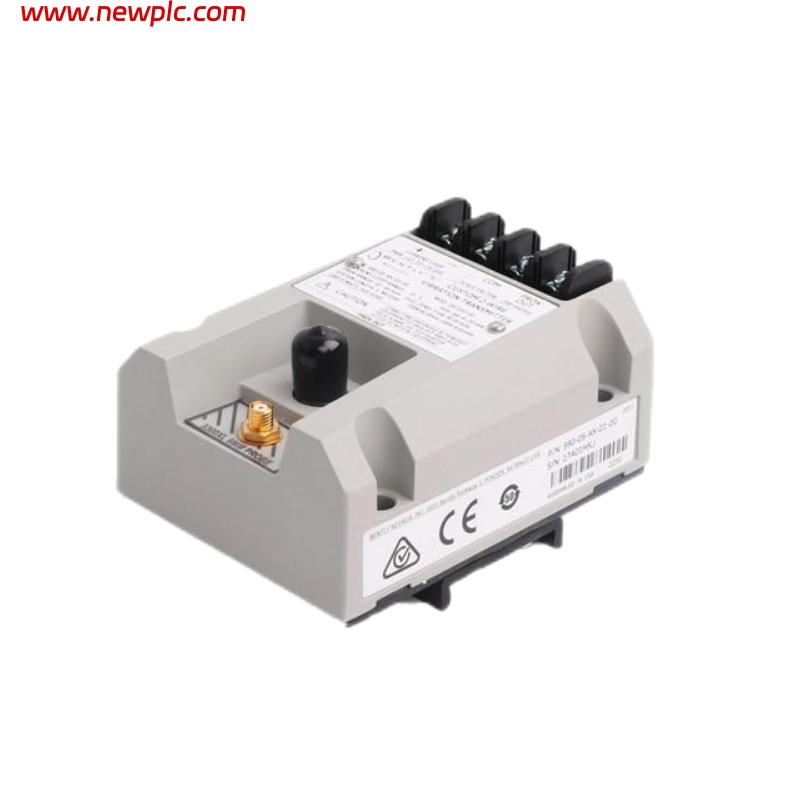

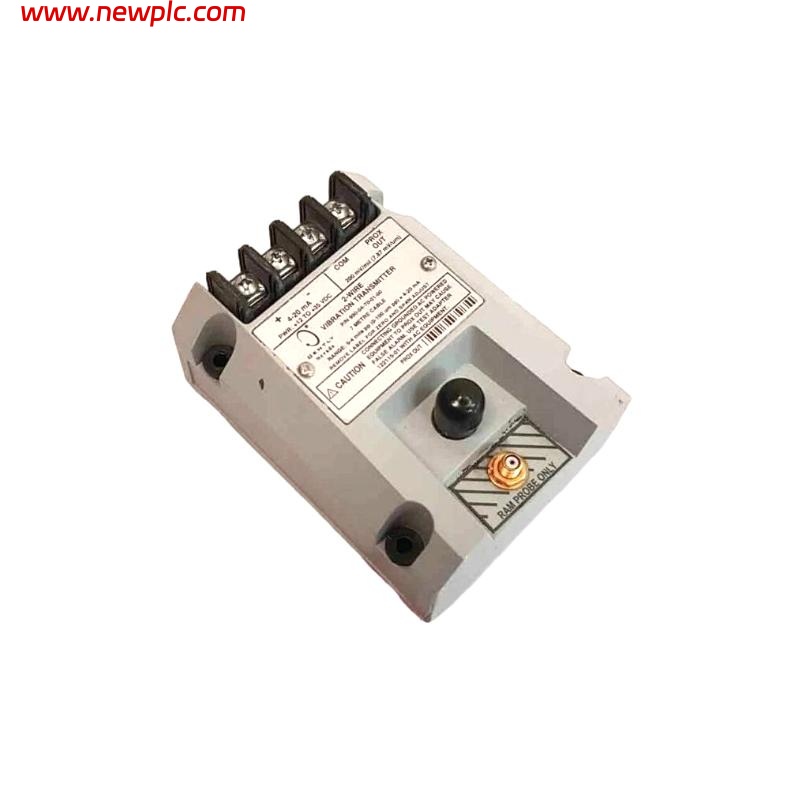

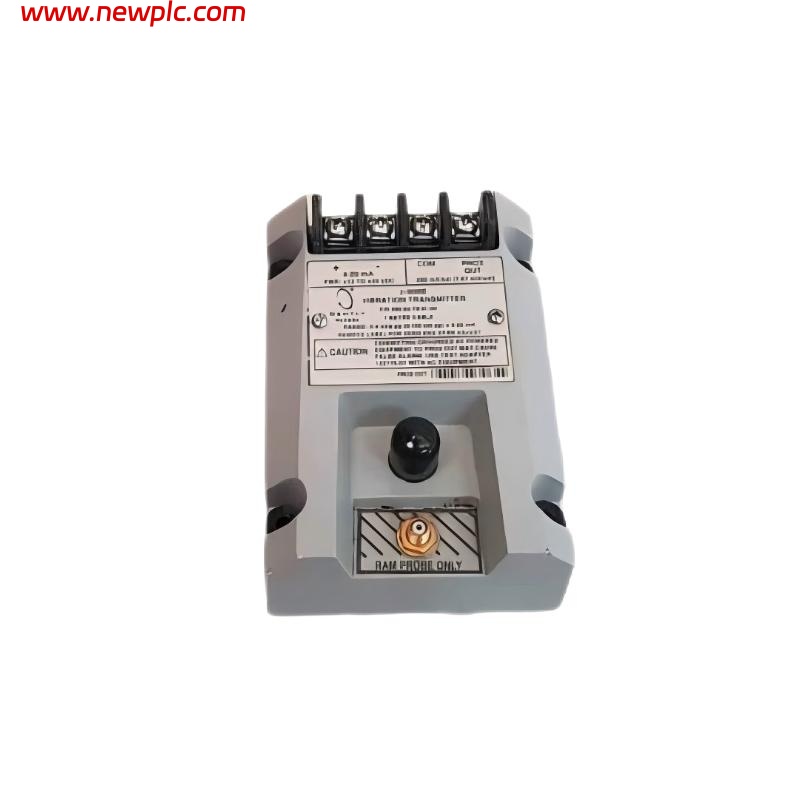

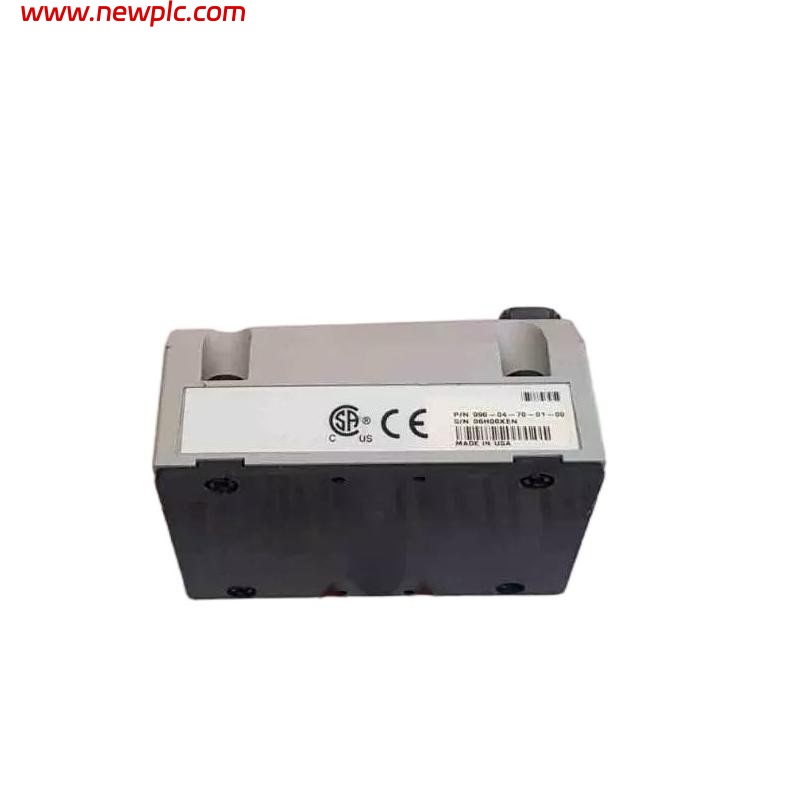

| Type | Bently Nevada 990 Vibration Transducer Interface Module |
| Function | Converts proximity probe signals into standard 4–20 mA outputs for vibration or position monitoring |
| Input | Compatible with Bently Nevada proximity probe systems (e.g., 3300, 3300 XL series) |
| Output | 4–20 mA proportional to vibration amplitude or shaft displacement |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Processing | Linearized and filtered signal conditioning |
| Mounting Type | DIN rail or panel mount |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (typical) |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | Approximately 0.43 kg |
| Applications | Used for machinery vibration monitoring, bearing protection, and process condition monitoring |
FAQ
FAQ
Q1: What is the main purpose of the 990-04-70-01-00 module?
It converts raw proximity probe signals into a standard 4–20 mA output suitable for industrial control and monitoring systems.
Q2: Which proximity probes are supported by this model?
It supports Bently Nevada 3300 and 3300 XL series proximity probes.
Q3: What type of signal output does it provide?
The device provides a 4–20 mA current output representing vibration amplitude or shaft position.
Q4: Can it be mounted easily in industrial control panels?
Yes, it can be mounted on a DIN rail or directly onto a control panel for flexible installation.
Q5: What is the operating voltage of this module?
The module operates with a nominal 24 VDC supply.
Q6: How does it handle signal accuracy?
It features linearized and filtered signal processing for accurate and stable readings.
Q7: What is the environmental operating range?
It operates reliably between -35°C and +70°C with up to 95% non-condensing humidity.
Q8: In which applications is this module typically used?
It is commonly used in vibration monitoring systems for turbines, compressors, pumps, and other rotating equipment to ensure reliable machine protection.
