Technical Specifications
| Item | Specification |
|---|---|
| Model | 990-05-70-02-01 |

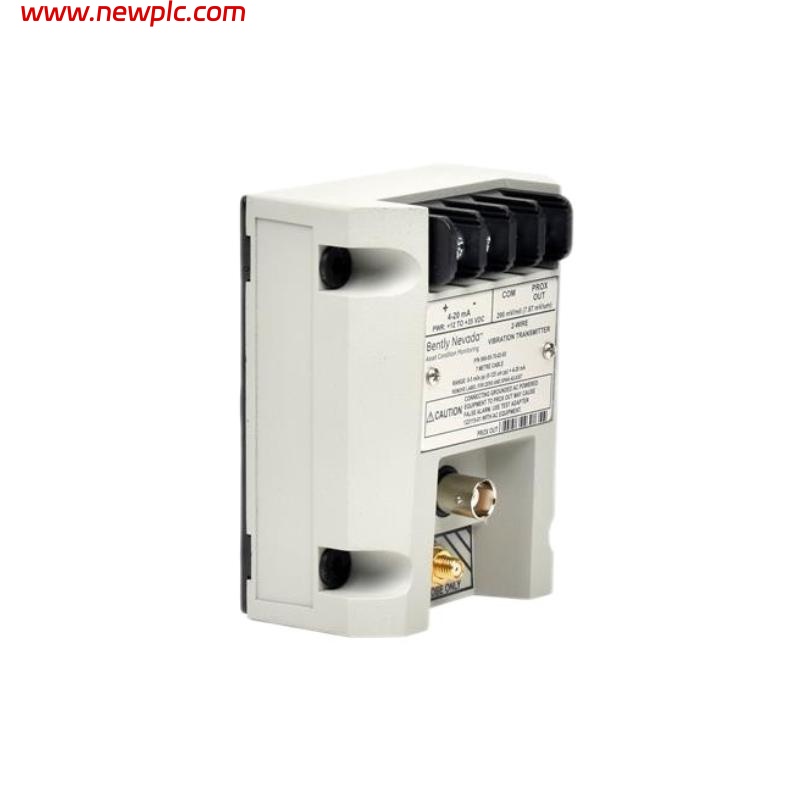

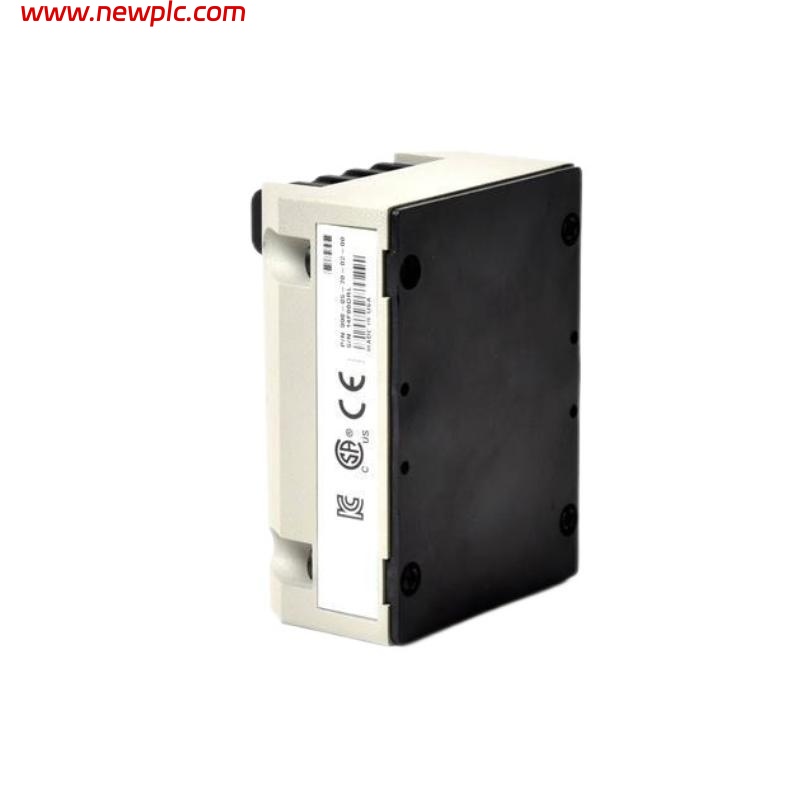

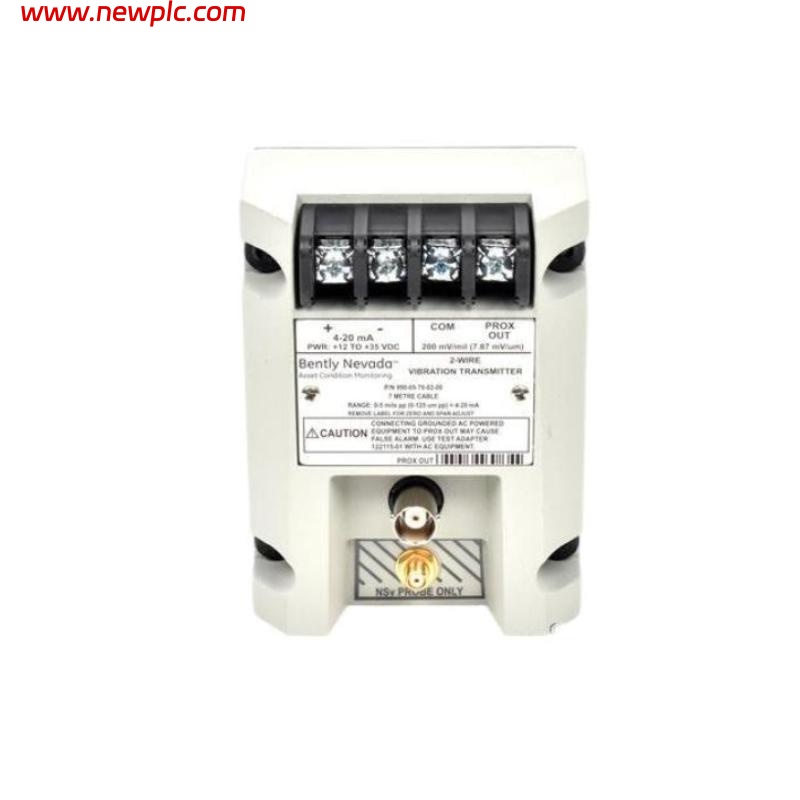

| Type | Bently Nevada 990 Series Vibration Transducer Interface Module |
| Function | Converts and conditions proximity probe signals into a standard 4–20 mA output for machinery vibration or displacement monitoring |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC proportional to vibration amplitude or shaft position |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Conditioning | Linearized, filtered, and temperature-compensated output |
| Mounting Type | DIN rail or panel mount |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (typical) |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Applications | Used in vibration monitoring, bearing condition tracking, and rotating machinery protection systems |
FAQ
FAQ
Q1: What is the main function of the 990-05-70-02-01 module?
It converts proximity probe signals into a 4–20 mA output for vibration or shaft position monitoring in industrial systems.
Q2: Which probe systems are compatible with this module?
It works with Bently Nevada 3300 and 3300 XL proximity probe systems.
Q3: What kind of output signal does it generate?
It produces a 4–20 mA DC output proportional to vibration or displacement measurements.
Q4: How is the module installed?
It can be easily installed using a DIN rail or mounted directly onto a control panel.
Q5: What is the required power supply?
The module operates on a nominal 24 VDC power supply.
Q6: What is the operating temperature range?
It is designed to function effectively from -35°C to +70°C.
Q7: What are the dimensions and weight of the module?
The unit measures 100.1 mm × 73.9 mm × 53.3 mm and weighs approximately 0.43 kg.
Q8: What are the typical application areas for this model?
It is used for vibration monitoring and machinery protection in turbines, compressors, pumps, and other rotating equipment.
