Technical Specifications
| Item | Specification |
|---|---|
| Model | 990-05-70-02-05 |

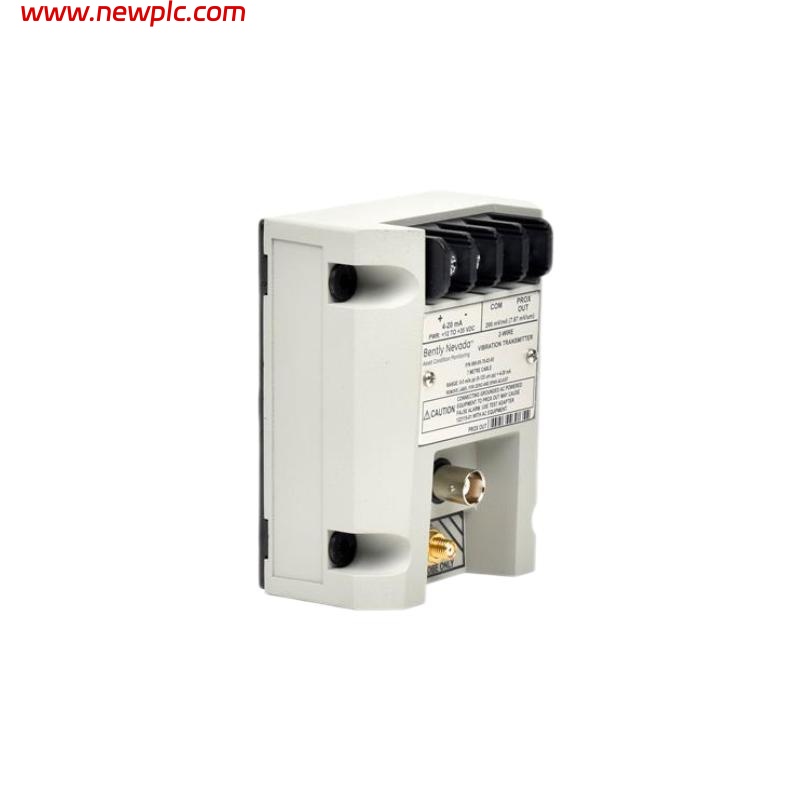

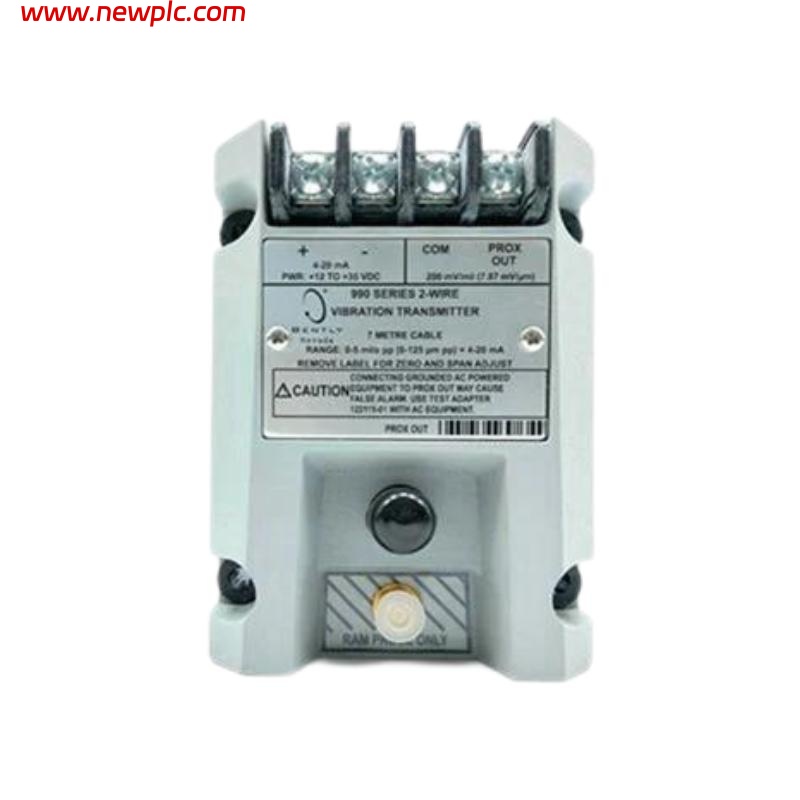

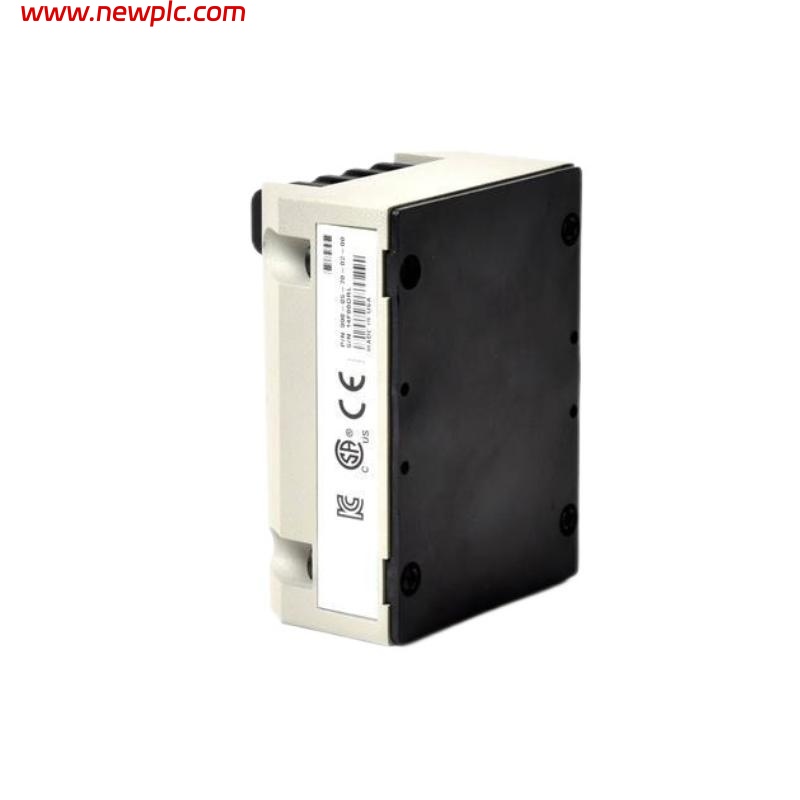

| Type | Bently Nevada 990 Series Vibration Transducer Interface Module |
| Function | Converts proximity probe signals into a 4–20 mA DC output for monitoring vibration or shaft displacement |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC proportional to vibration amplitude or shaft position |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Conditioning | Linearized, filtered, and temperature-compensated for stable measurements |
| Mounting Type | DIN rail or panel mount |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (typical) |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Applications | Machinery vibration monitoring, shaft displacement detection, and industrial condition-based maintenance |
FAQ
FAQ
Q1: What is the primary purpose of the 990-05-70-02-05 module?
It converts signals from proximity probes into a standard 4–20 mA output for continuous vibration or displacement monitoring.
Q2: Which types of proximity probes are compatible with this model?
It supports Bently Nevada 3300 and 3300 XL series proximity probe systems.
Q3: What kind of output signal does it provide?
The device delivers a 4–20 mA DC signal proportional to the detected vibration level or shaft position.
Q4: How is the module typically mounted?
It can be mounted on a DIN rail or attached directly to a control panel.
Q5: What power supply is required for proper operation?
The module requires a 24 VDC nominal power source.
Q6: What are the environmental operating limits?
It operates efficiently from -35°C to +70°C with up to 95% non-condensing humidity.
Q7: What are the physical dimensions and weight of this module?
The unit measures 100.1 mm × 73.9 mm × 53.3 mm and weighs approximately 0.43 kg.
Q8: In which applications is the 990-05-70-02-05 commonly used?
It is ideal for use in machinery protection and condition monitoring systems for turbines, compressors, motors, and pumps.
