Technical Specifications
| Item | Specification |
|---|---|
| Model | 990-05-XX-03 |

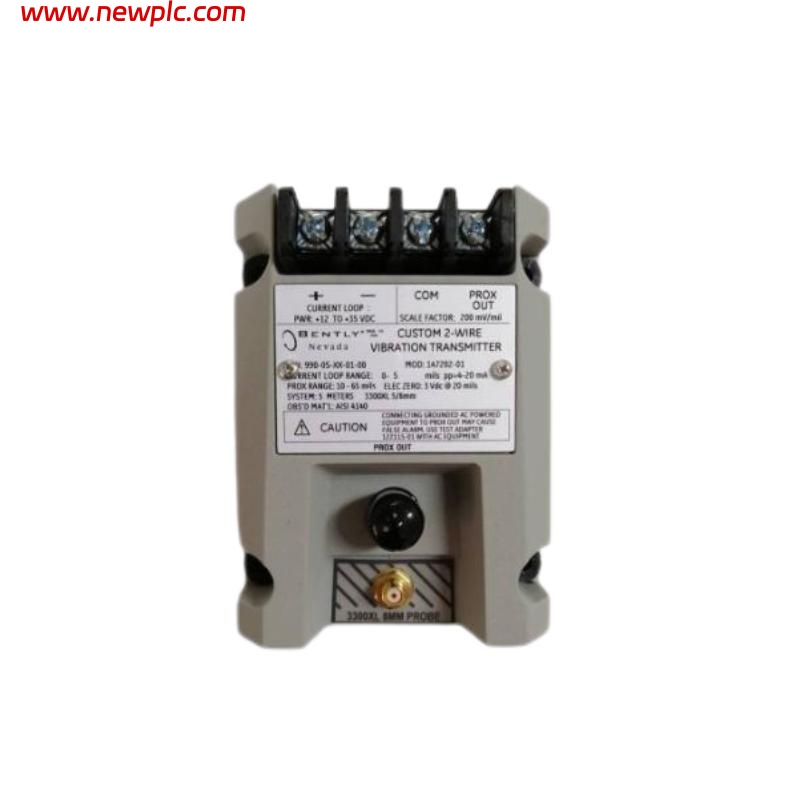

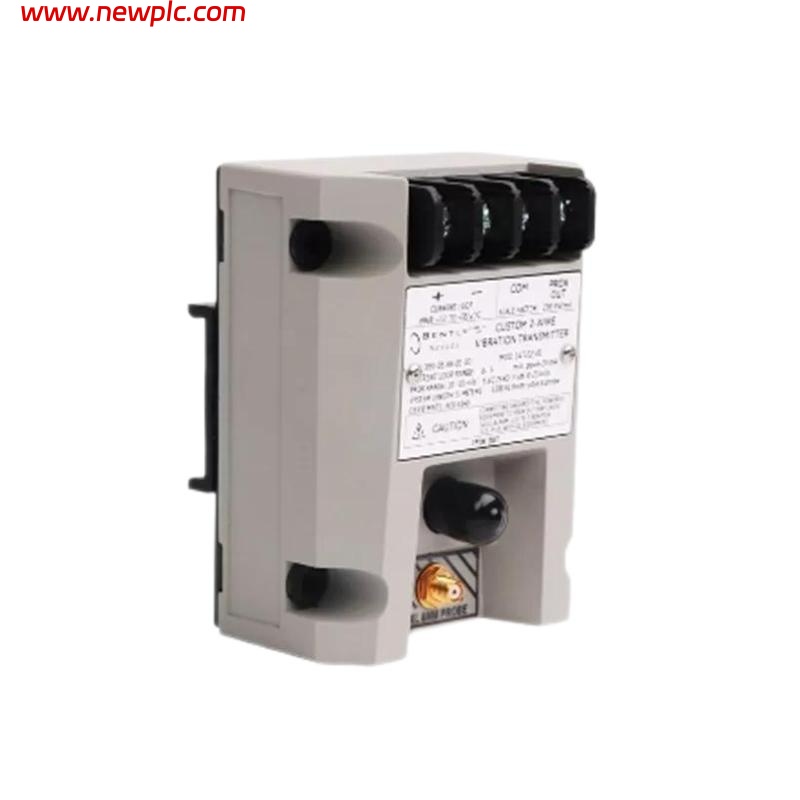

| Type | Bently Nevada 990 Series Vibration Transducer Interface Module |
| Function | Converts proximity probe signals into a standard 4–20 mA DC output for continuous machinery vibration and shaft position monitoring |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC signal proportional to vibration amplitude or shaft displacement |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Conditioning | Linearized, temperature-compensated, and noise-filtered signal processing |
| Mounting Type | DIN rail or panel mount |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (typical) |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Typical Configuration | Third-generation model, supports enhanced probe linearization and output stability |
| Applications | Continuous vibration and displacement monitoring for turbines, compressors, pumps, and motors |
FAQ
FAQ
Q1: What is the function of the 990-05-XX-03 module?
It converts proximity probe signals into a 4–20 mA DC output for monitoring machine vibration and shaft position in real time.
Q2: What does “XX” in the model number represent?
“XX” denotes variable configuration options such as calibration range, probe type, or factory customization.
Q3: Which proximity probes can be used with this module?
It is compatible with Bently Nevada 3300 and 3300 XL proximity probe systems.
Q4: What type of output signal does it provide?
The module outputs a 4–20 mA DC signal proportional to the detected vibration or displacement levels.
Q5: What are the mounting options?
It can be mounted on a DIN rail or directly on a panel for flexibility in industrial installations.
Q6: What are the required operating conditions?
It operates from -35°C to +70°C with a 24 VDC power supply.
Q7: What are its size and weight specifications?
The unit measures 100.1 mm × 73.9 mm × 53.3 mm and weighs approximately 0.43 kg.
Q8: Where is this module typically applied?
It is widely used in machinery protection and condition monitoring systems for critical rotating equipment such as turbines, compressors, and electric motors.
