Technical Specifications
| Item | Specification |
|---|---|
| Model | 990-10-XX-01 (167541-01) |

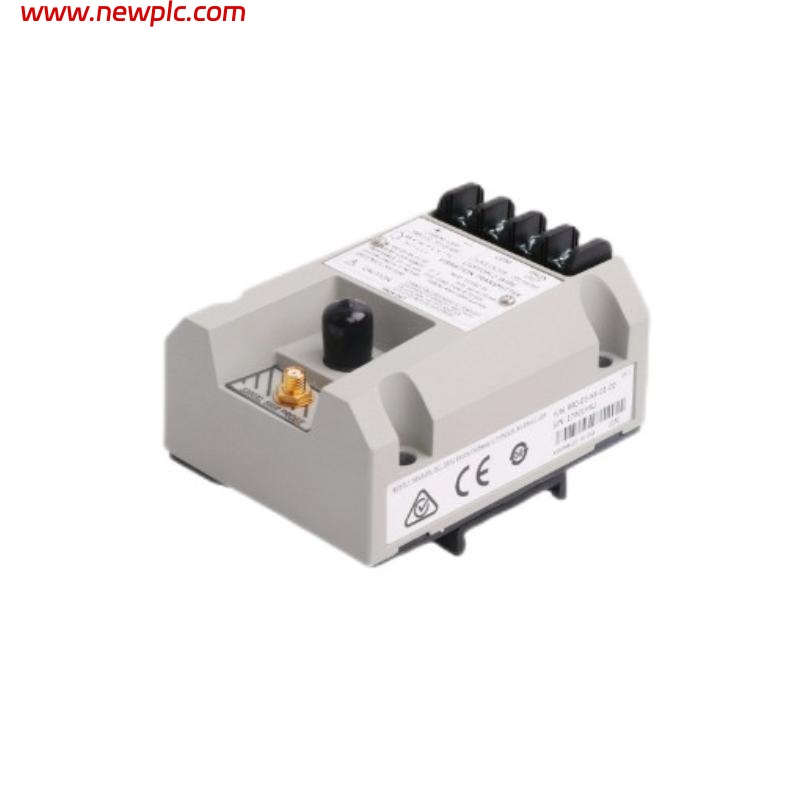

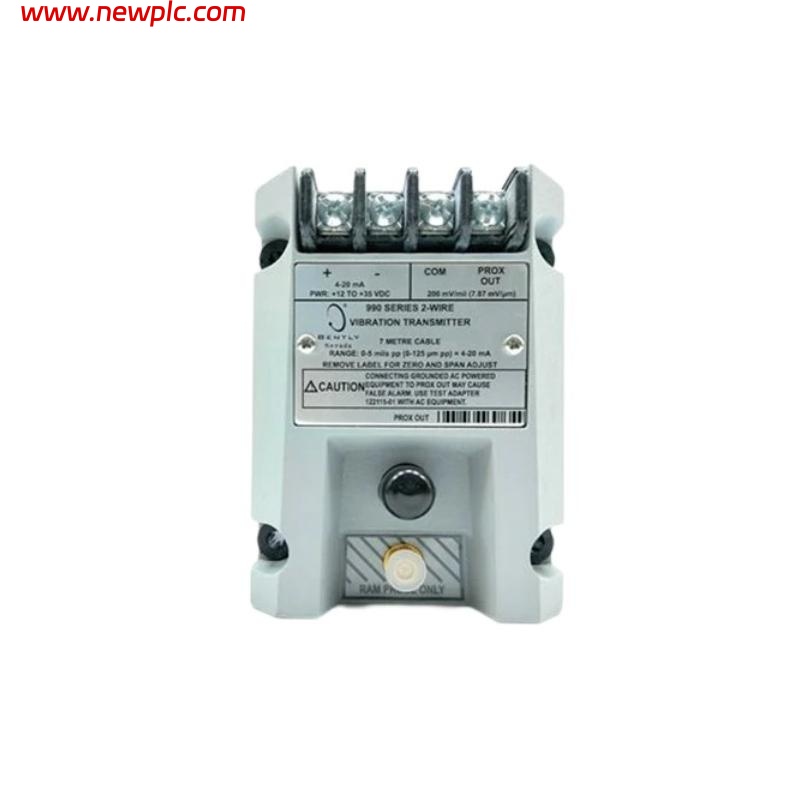

| Type | Bently Nevada 990 Series Vibration Transducer Interface Module |
| Function | Converts proximity probe signals into a 4–20 mA DC output for continuous monitoring of machinery vibration and shaft displacement |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC current signal proportional to vibration amplitude or shaft position |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Conditioning | Linearized, temperature-compensated, and noise-filtered output |
| Mounting Type | DIN rail or panel mount |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (typical) |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Part Number | 167541-01 |
| Country Code | Standard global configuration |
| Applications | Machinery protection and condition monitoring for turbines, compressors, pumps, and motors |
FAQ
FAQ
Q1: What is the main function of the 990-10-XX-01 (167541-01)?
It processes signals from proximity probes and converts them into a 4–20 mA DC output for continuous vibration and displacement monitoring.
Q2: What does the “XX” in the model number indicate?
“XX” refers to a variable configuration code, representing factory options such as calibration range, probe type, or specific application setup.
Q3: What proximity probe systems are compatible with this module?
It is designed for use with Bently Nevada 3300 and 3300 XL proximity probe systems.
Q4: What is the power requirement for this module?
The unit operates on a standard 24 VDC nominal power supply.
Q5: What type of output does it provide?
It delivers a 4–20 mA DC signal proportional to machine vibration or shaft position.
Q6: How is the module mounted?
It supports both DIN rail and panel mounting for convenient installation in control panels or monitoring racks.
Q7: What are the dimensions and weight of the unit?
The unit measures 100.1 mm × 73.9 mm × 53.3 mm and weighs 0.43 kg.
Q8: Where is the 990-10-XX-01 typically used?
It is commonly used in industrial environments for vibration monitoring and machinery protection in turbines, compressors, electric motors, and pumps.
