Technical Specifications
| Item | Specification |
|---|---|
| Model | 991-06-50-01-00 |

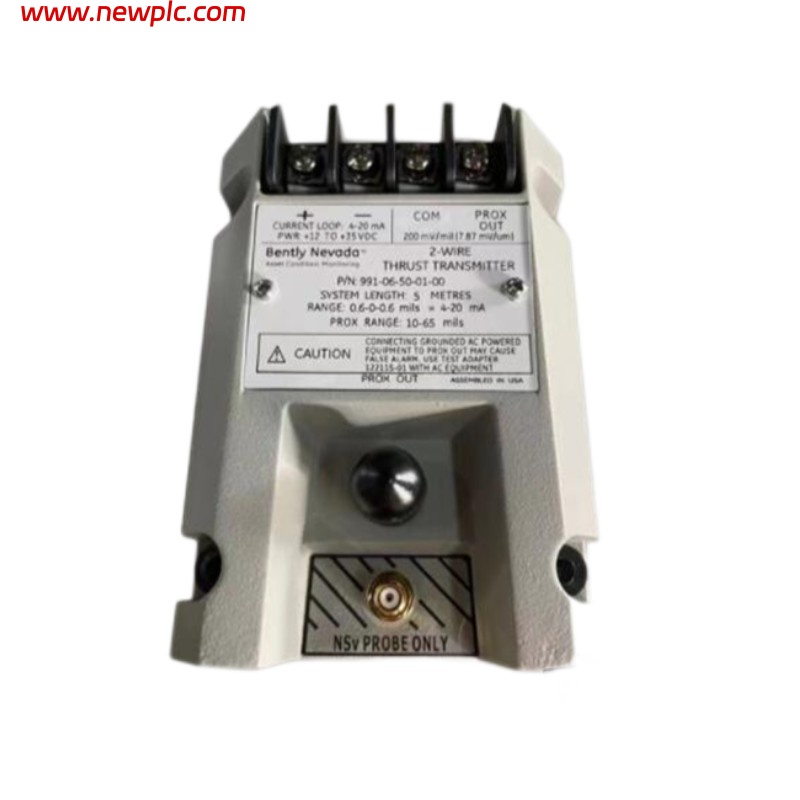

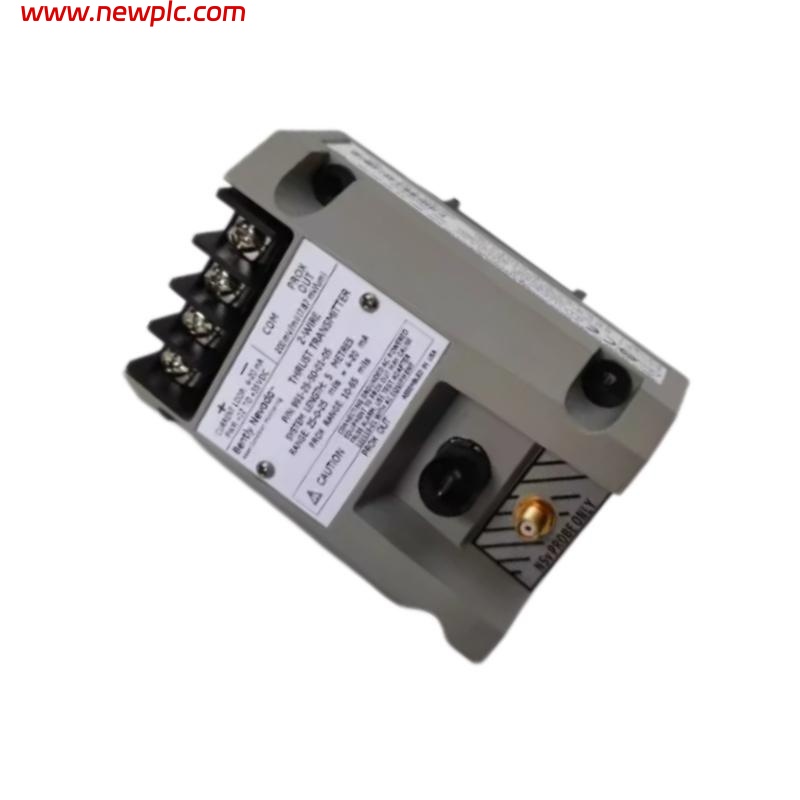

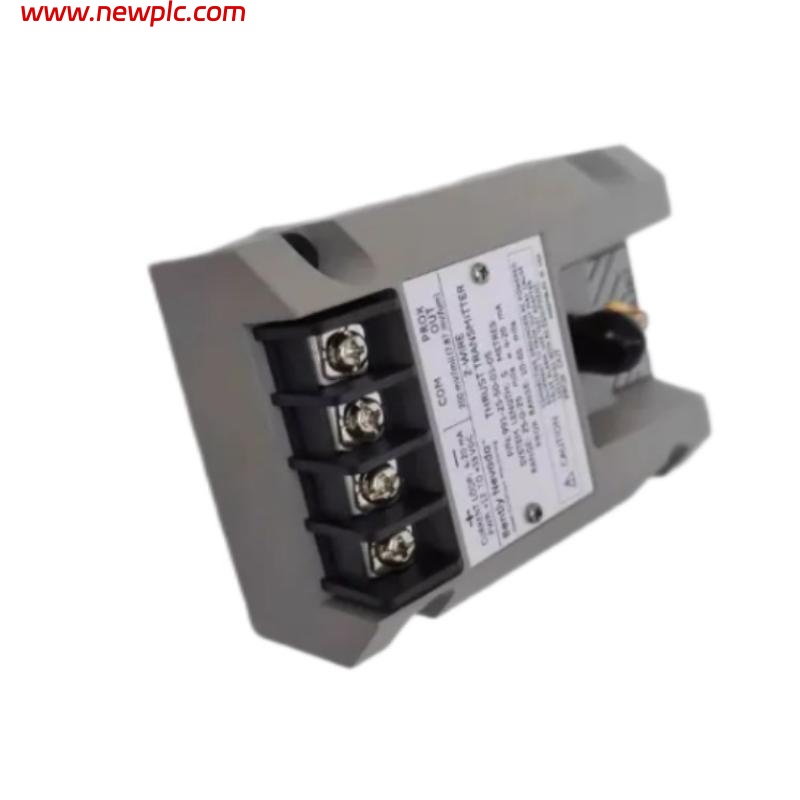

| Type | Bently Nevada 991 Series Vibration Transducer Interface Module |
| Function | Converts proximity probe or vibration sensor signals into a 4–20 mA DC output for machinery condition monitoring |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC proportional to vibration amplitude or shaft displacement |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Processing | Linear, temperature-compensated, and low-noise signal conditioning |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (standard industrial) |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Country Code | 00 – Global standard version |
| Applications | Vibration and shaft position monitoring for turbines, compressors, motors, and pumps |
FAQ
FAQ
Q1: What is the main purpose of the 991-06-50-01-00 module?
It converts signals from Bently Nevada proximity probes into a 4–20 mA DC output for monitoring vibration and shaft displacement in rotating machinery.
Q2: What does the “06-50” in the model number indicate?
It designates a specific configuration within the 991 Series, typically defining sensor type and output scaling.
Q3: Is this model compatible with 3300 XL probes?
Yes, it is fully compatible with both 3300 and 3300 XL proximity probe systems.
Q4: What type of signal output does it provide?
It provides a 4–20 mA DC current signal proportional to the measured vibration or position.
Q5: How is the module installed?
It can be easily installed using a DIN rail or fixed to a control panel, depending on the application.
Q6: What power supply does it require?
It operates with a nominal 24 VDC power input.
Q7: What are the physical dimensions and weight of the device?
The module measures 100.1 mm × 73.9 mm × 53.3 mm and weighs 0.43 kg.
Q8: Where is this module typically applied?
It is widely used in machinery protection and condition monitoring systems for turbines, compressors, and industrial pumps.
