Technical Specifications
| Item | Specification |
|---|---|
| Model | 991-06-50-01-01 |

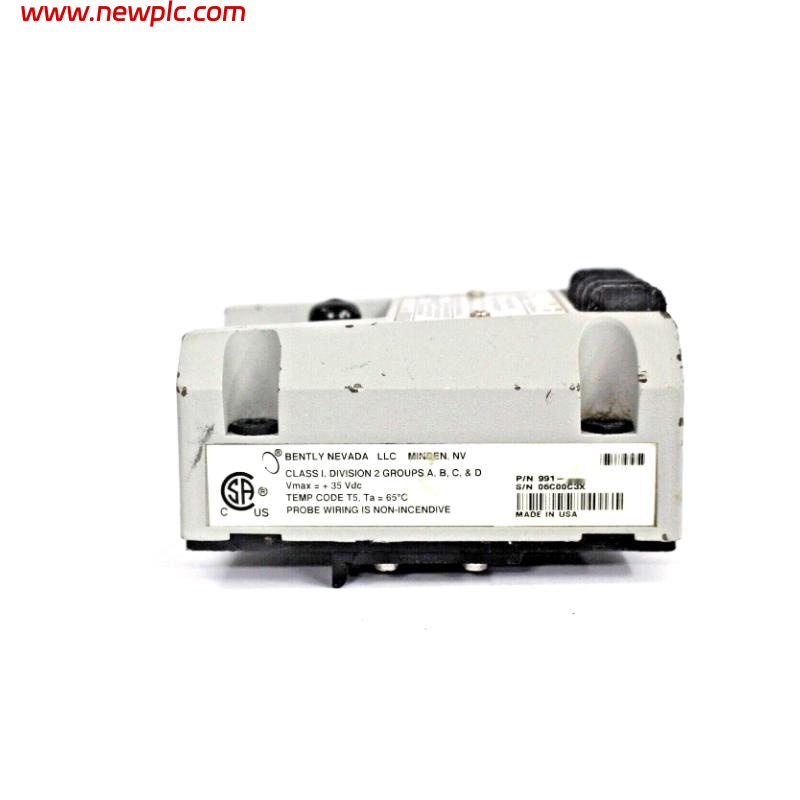

| Type | Bently Nevada 991 Series Vibration Transducer Interface Module |
| Function | Converts vibration or displacement probe signals into a 4–20 mA DC output for continuous machinery condition monitoring |
| Input | Compatible with Bently Nevada 3300 and 3300 XL proximity probe systems |
| Output | 4–20 mA DC proportional to vibration amplitude or shaft position |
| Power Supply | 24 VDC nominal |
| Frequency Response | DC to 10 kHz |
| Signal Processing | Linear, temperature-compensated, low-noise signal conditioning |
| Housing Material | Aluminum alloy |
| Protection Rating | IP20 (standard industrial) |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 100.1 mm × 73.9 mm × 53.3 mm |
| Weight | 0.43 kg |
| Country Code | 01 – Indicates a specific regional configuration or localized standard version |
| Applications | Vibration and shaft position monitoring for turbines, compressors, motors, and industrial pumps |
FAQ
FAQ
Q1: What is the function of the 991-06-50-01-01 module?
It converts proximity probe or vibration sensor signals into a standardized 4–20 mA output for monitoring machinery vibration or displacement.
Q2: What does the “01” at the end of the model number represent?
It denotes a regional or configuration variant, typically indicating compliance with specific customer or country requirements.
Q3: Can this unit be used with 3300 XL proximity probes?
Yes, it is designed to work with both 3300 and 3300 XL series probes.
Q4: What type of signal output does the module generate?
It outputs a 4–20 mA DC current signal that reflects the vibration level or shaft displacement.
Q5: How is the module powered?
It operates from a nominal 24 VDC power source.
Q6: What are the mounting options?
The module can be mounted on a DIN rail or directly onto a control panel.
Q7: What are the physical dimensions and weight of this module?
It measures 100.1 mm × 73.9 mm × 53.3 mm and weighs 0.43 kg.
Q8: In which industries is the 991-06-50-01-01 commonly used?
It is widely applied in rotating machinery systems such as compressors, turbines, and motors for vibration monitoring and equipment protection.
