Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 991-25-70-02-00 |

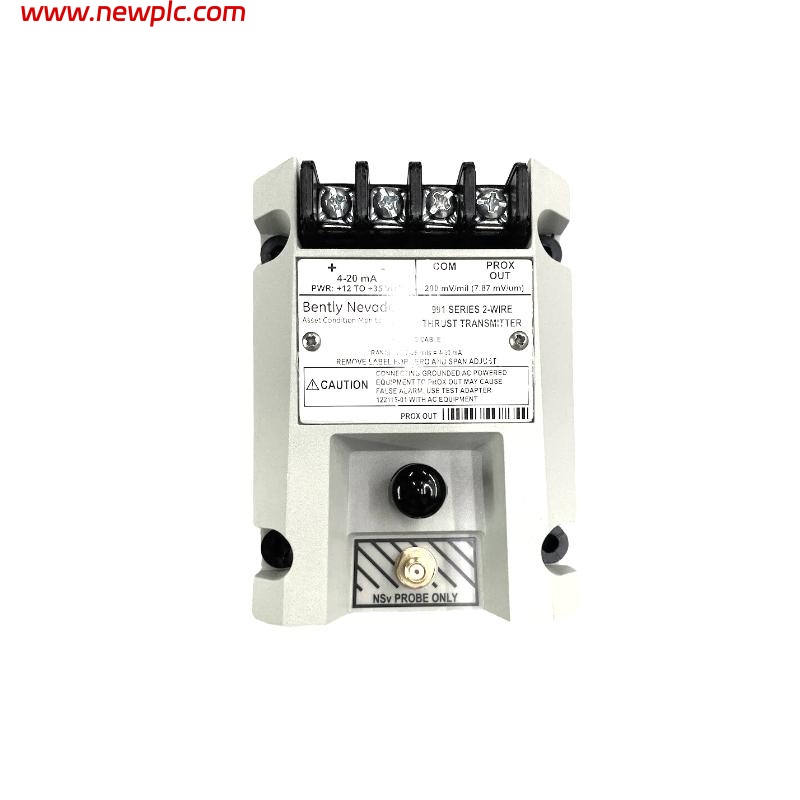

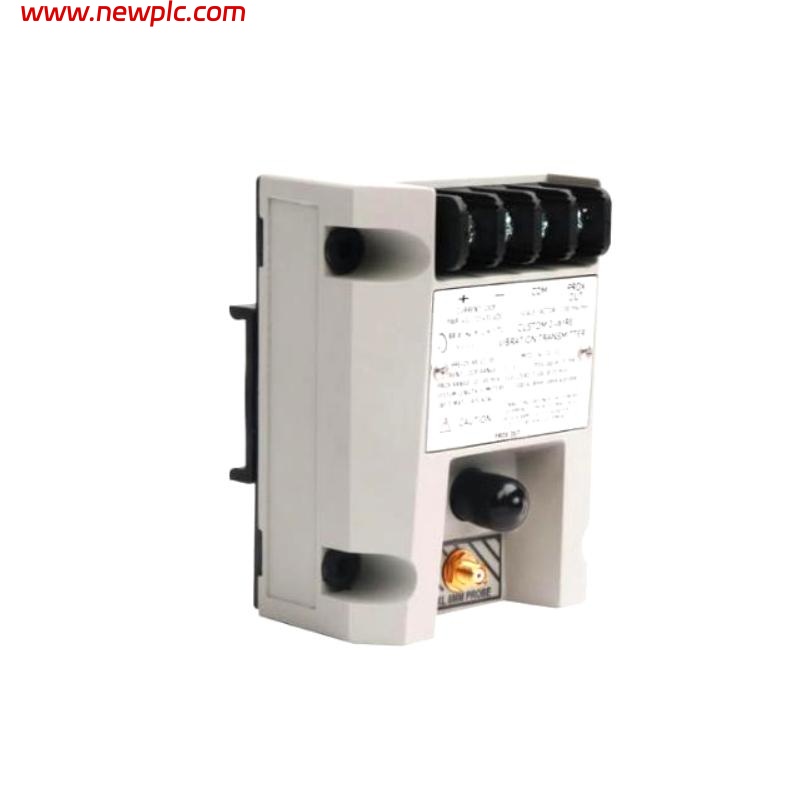

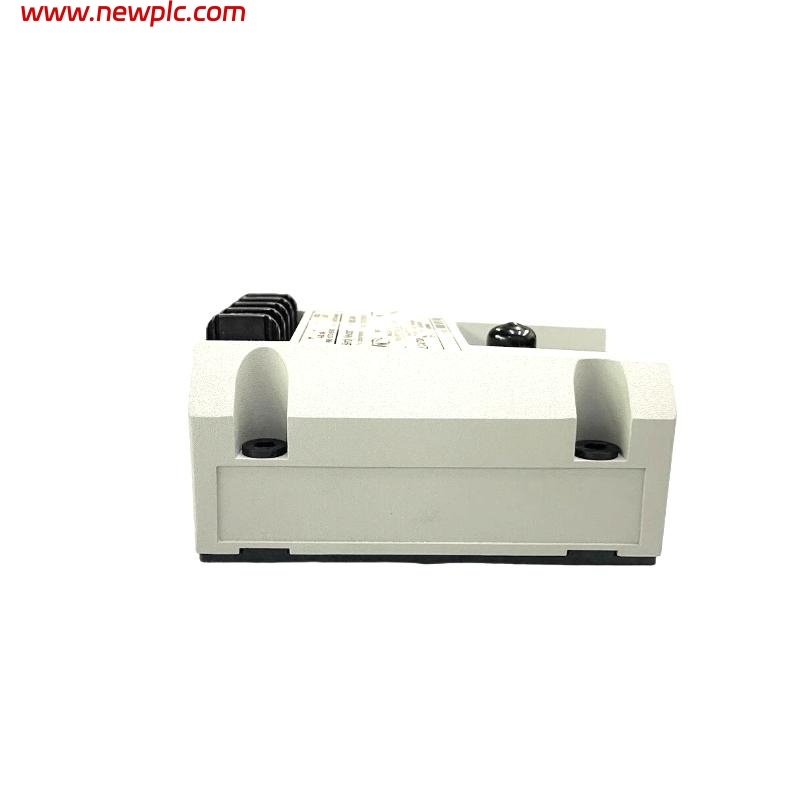

| Series | Bently Nevada 991 Thrust Sensor |
| Function | Measures axial thrust displacement in rotating machinery to ensure bearing protection and operational stability |
| Sensing Principle | Eddy current induction |
| Measurement Range | 0 to 2 mm (typical) |
| Linearity Error | ≤ ±1% of full scale |
| Sensitivity | 7.87 mV/µm (typical) |
| Operating Temperature | -35°C to +180°C |
| Housing Material | Stainless steel |
| Output Signal | Voltage output proportional to displacement |
| Mounting Method | Threaded installation |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | 0.43 kg |
FAQ
FAQ
Q1: What is the main purpose of the 991-25-70-02-00 thrust sensor?
A: It is used to measure axial thrust displacement in rotating shafts to prevent equipment damage caused by axial shifts.
Q2: What sensing technology does it use?
A: It uses eddy current induction technology for non-contact displacement measurement.
Q3: What is the measurement range of the sensor?
A: The standard measurement range is 0 to 2 mm.
Q4: What type of output signal does it provide?
A: It provides a linear voltage signal proportional to shaft displacement.
Q5: What material is used for the housing?
A: Constructed from corrosion-resistant stainless steel suitable for industrial environments.
Q6: What is the operating temperature range?
A: Operates reliably within -35°C to +180°C.
Q7: How is the sensor installed?
A: Installed using a threaded mount for convenient positioning and maintenance.
Q8: What are the dimensions and weight of the sensor?
A: Dimensions are 100.1 x 73.9 x 53.3 mm, and the weight is approximately 0.43 kg.
