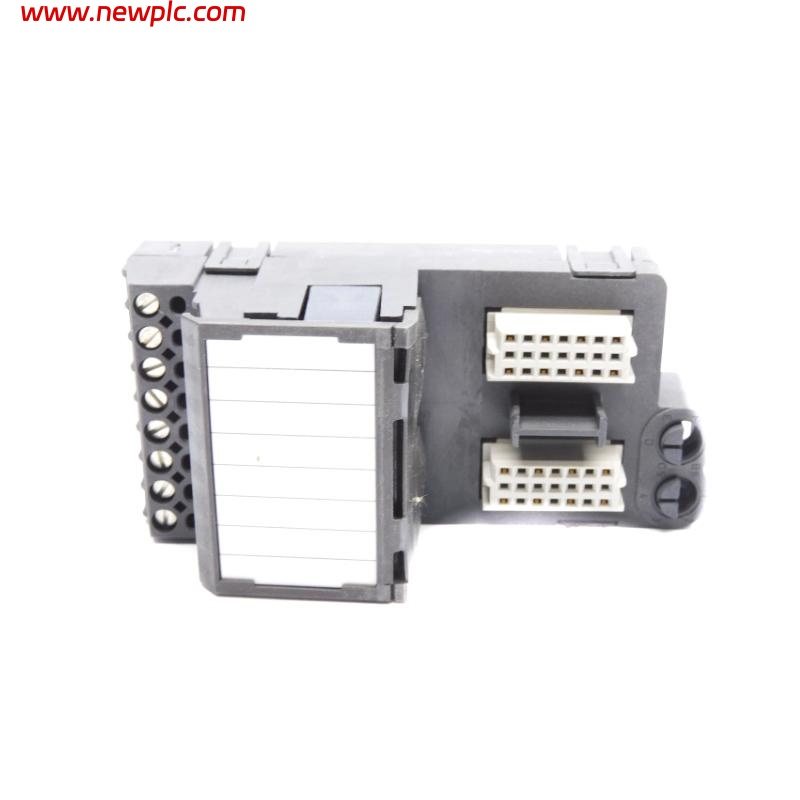

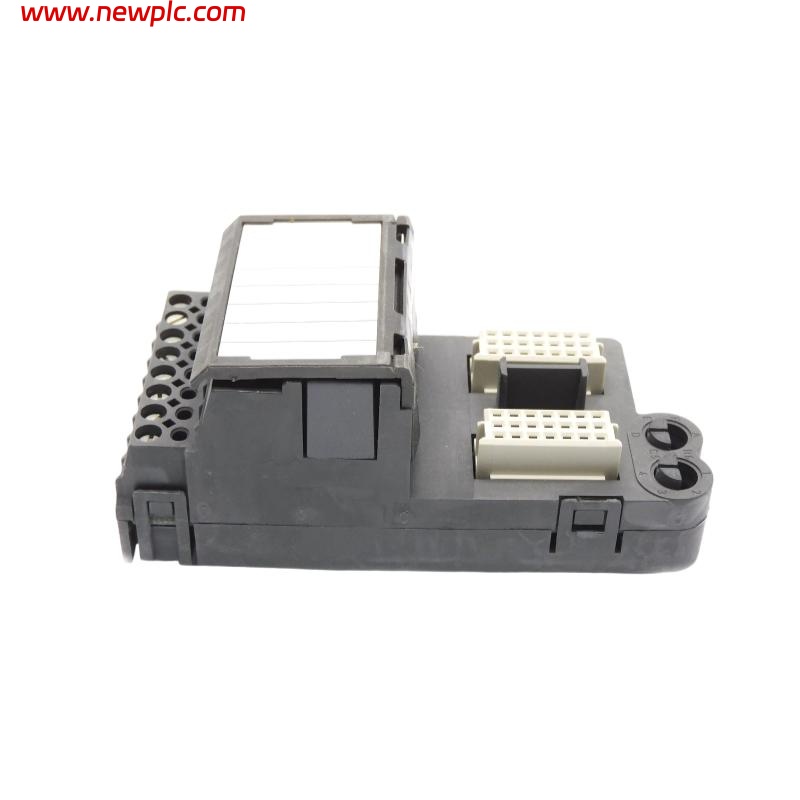

Emerson CE4005S2B1 KJ3221X1-BA1+KJ4001X1-CA1 Controller Module

FAQ

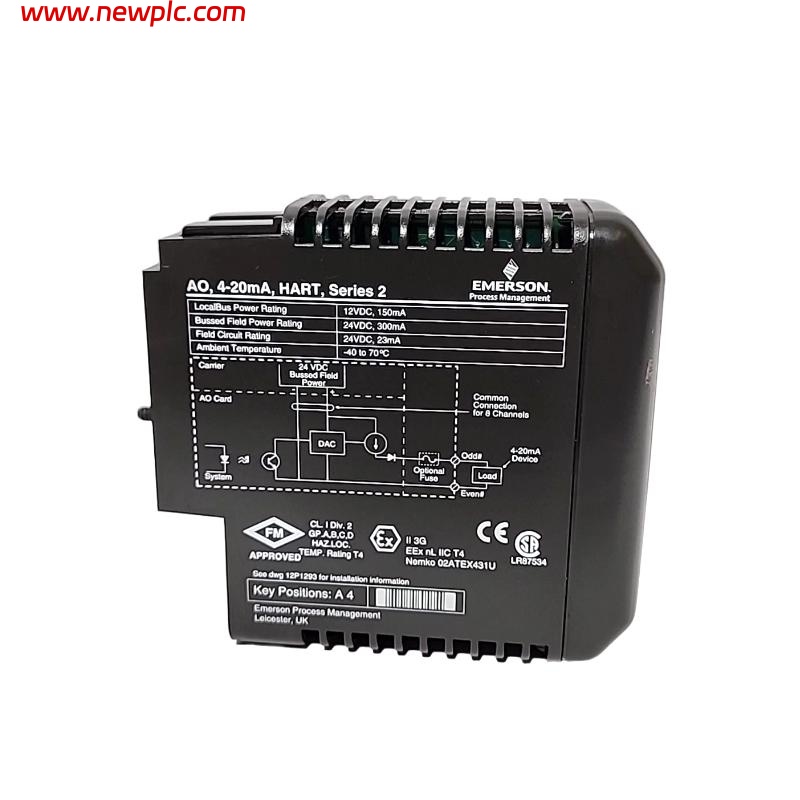

Q1: What type of product is the CE4005S2B1?
A1: The CE4005S2B1 is an analog output module from Emerson, used to transmit output signals from the control system to field devices.

Q2: What input signal types does it support?
A2: It supports 4–20 mA HART input signals.

Q3: How many input channels does the module provide?
A3: The module provides 8 input channels.

Q4: What are the power requirements of the module?
A4: The local bus power is 12 VDC at 150 mA; external field power is 24 VDC at 300 mA; power consumption per channel is 24 VDC at 23 mA.

Q5: What is the operating temperature range of the module?
A5: The operating temperature range is from -40°C to +70°C.

Q6: How is the module installed?
A6: The module can be mounted on a DIN rail.

Q7: What certifications does it comply with?
A7: It complies with CE, CSA, ATEX, and IECEx certification standards.

Q8: What are the dimensions and weight of the module?
A8: The dimensions are 107 x 41 x 105 mm, and the weight is 0.18 kg.
