Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson Control Techniques (Now Nidec Control Techniques) |

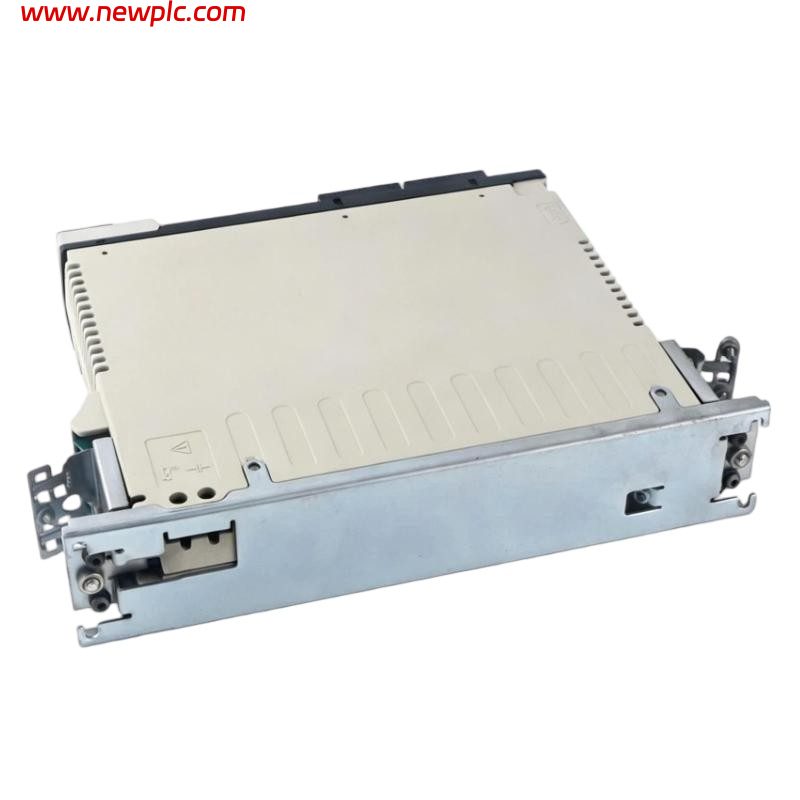

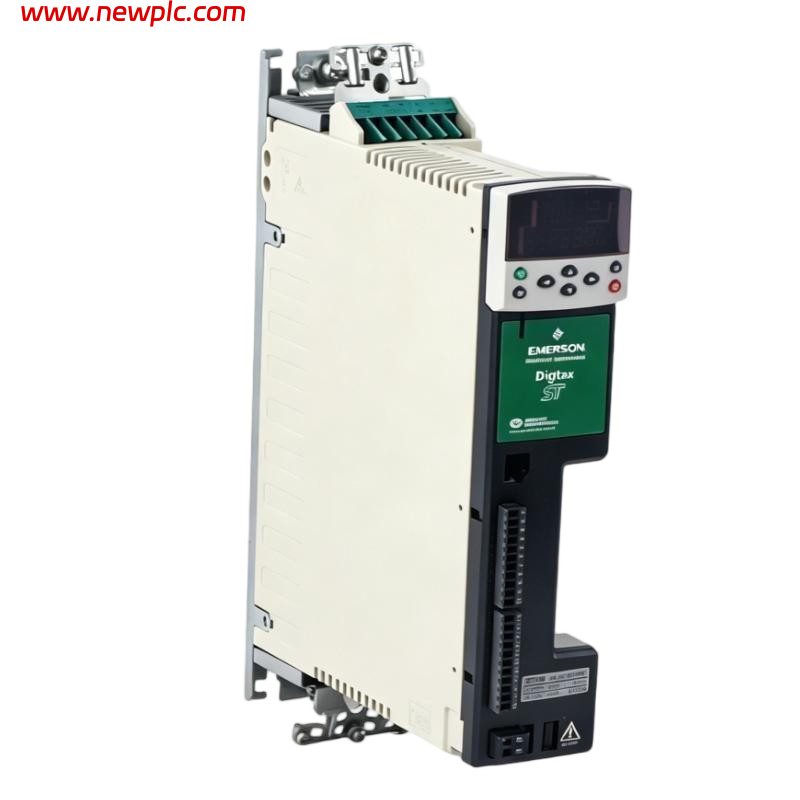

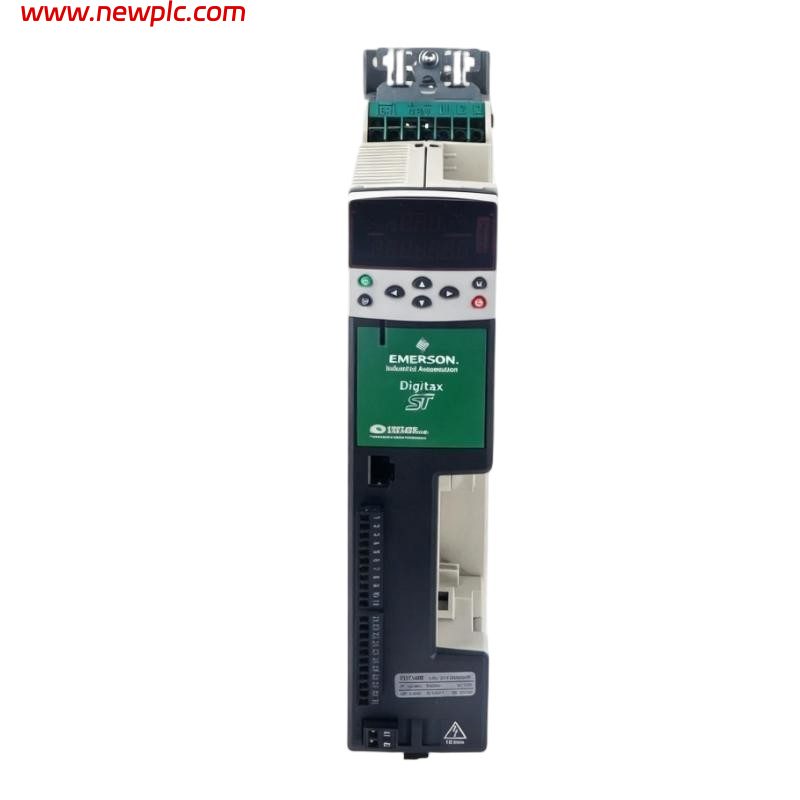

| Product Model | DST1405 |
| Product Type | Servo Drive |
| Series | Digitax ST |
| Function | High-performance AC servo drive for precision motion control |
| Input Voltage | 380–480 VAC, 3-Phase |
| Rated Voltage | 400 VAC |
| Input Frequency | 48–65 Hz |
| Number of Input Phases | 3 |
| Rated Input Current | Approx. 11.2 A |
| Continuous Output Current | 8.0 A RMS |
| Peak Output Current | 24.0 A RMS |
| Rated Power | Approx. 4.0 kW (application dependent) |
| Control Modes | Position Control, Velocity Control, Torque Control |
| Servo Feedback | Incremental Encoder, Absolute Encoder, Resolver, Sine/Cosine Encoder |
| Communication Options | Modbus RTU (RS-485) standard; optional EtherCAT, EtherNet/IP, PROFINET, PROFIBUS-DP, DeviceNet, CANopen, SERCOS, CTNet, CTSync |
| Safety Function | Safe Torque Off (STO) |
| EMC Filter | Integrated |
| Protection Rating | IP20 |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C to +50°C |
| Application | CNC machines, robotics, packaging equipment, printing machinery, textile machinery, semiconductor equipment, and automated production systems |
| Dimensions (W × H × D) | 62 × 322 × 226 mm |
| Weight | 2.1 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Emerson DST1405 used for?
The DST1405 is used to control AC servo motors in applications requiring precise position, speed, and torque control, such as CNC machining, robotics, packaging systems, conveyors, and automated production equipment.
Q2: What type of product is the DST1405?
The DST1405 is a Digitax ST intelligent servo drive designed for centralized or distributed servo motion control in industrial automation systems.
Q3: What are the electrical ratings of the DST1405?
The drive operates from a 380–480 VAC three-phase input, provides 8.0 A RMS continuous output current, and 24.0 A RMS peak output current.
Q4: What are the dimensions and weight of the DST1405?
The DST1405 measures approximately 62 × 322 × 226 mm and weighs approximately 2.1 kg (without keypad or optional modules).
Q5: Which feedback devices are supported by the DST1405?
The drive supports incremental encoders, absolute encoders, resolvers, and sine/cosine encoders, providing compatibility with a wide range of industrial servo motors.
Q6: Which communication protocols are available?
The DST1405 includes RS-485 with Modbus RTU as standard and supports optional communication modules for EtherCAT, EtherNet/IP, PROFINET, PROFIBUS-DP, DeviceNet, CANopen, SERCOS, CTNet, and CTSync.
Q7: Does the DST1405 include safety features?
Yes. The drive features an integrated Safe Torque Off (STO) function and an integrated EMC filter, helping improve machine safety and electromagnetic compatibility.
Q8: What are the advantages of the Emerson DST1405?
The DST1405 offers high peak torque capability, excellent dynamic response, compact dimensions, multiple feedback options, flexible industrial networking, integrated STO safety, and reliable operation for demanding industrial motion control applications.
