Technical Specifications
| Parameter Category | Technical Details |
|---|---|
| Model Number | KC4011X1-BQ1 |

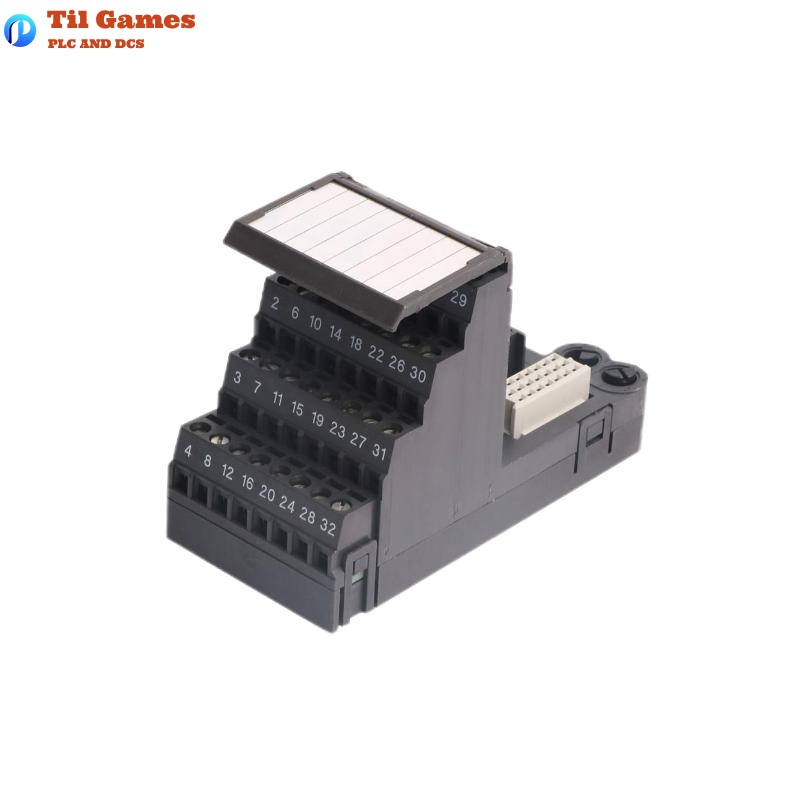

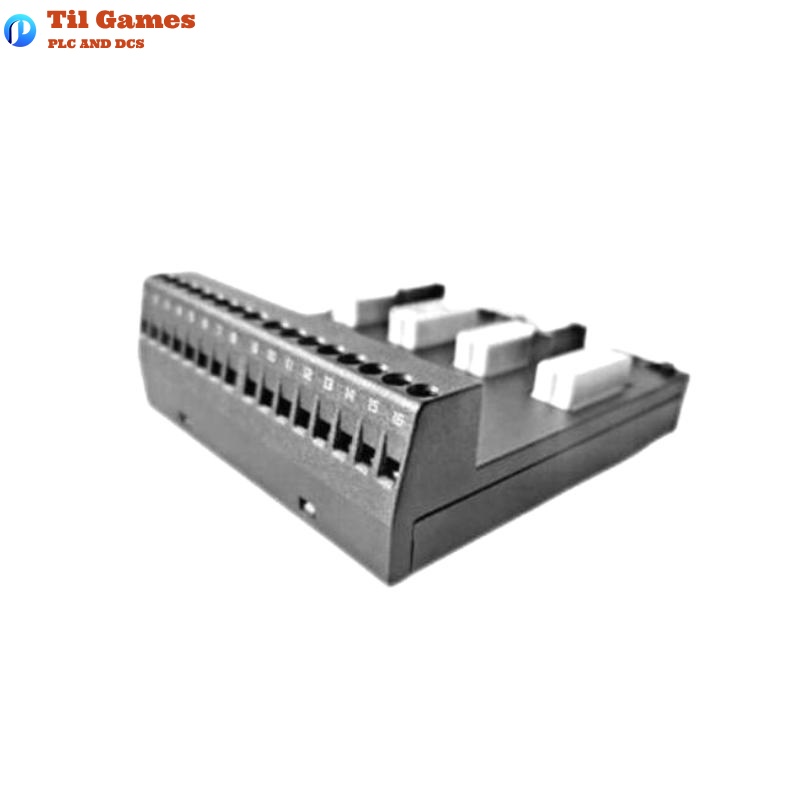

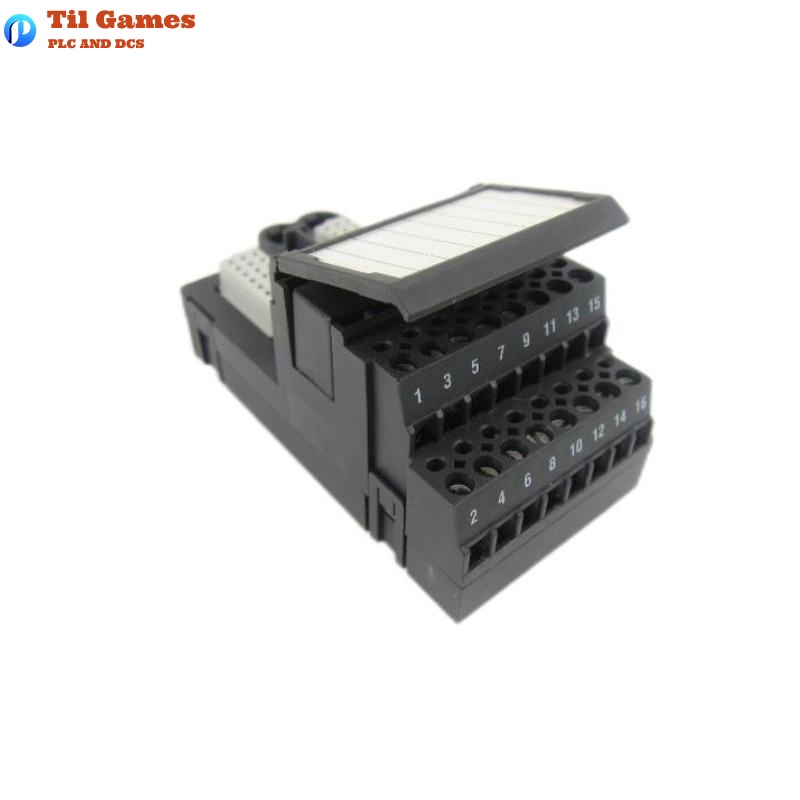

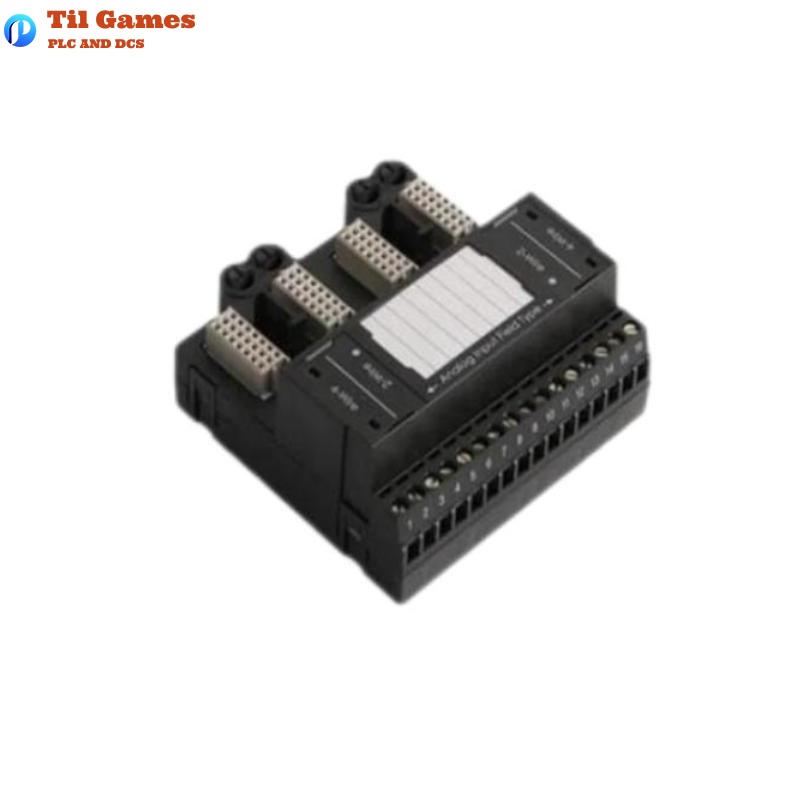

| Product Name | Simplex DO 40-Pin Mass Terminal Block |
| Power Supply | 24 VDC at 100 mA per channel |
| Operating Temperature | -40 °C to +70 °C |
| Shock | 10 g half-sine wave, 11 ms duration |
| Vibration | 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz |
| Relative Humidity | 5% to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Terminal Block Key | B4 |
| Dimensions (L x W x H) | 110 x 45 x 120 mm |
| Weight | 0.4 kg |
| Explosion Protection | Certified for ATEX, IECEx, FM, FMc (Zone 2) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of power does the KC4011X1-BQ1 support?
A1: It supports 24 VDC at 100 mA per channel.
Q2: Can the terminal block be replaced while the system is powered?
A2: Only if no I/O card is installed and no field wiring is connected.
Q3: Does this terminal block require calibration?
A3: No calibration is required. It is pre-configured from the factory.
Q4: Is it suitable for high humidity environments?
A4: Yes, as long as humidity stays within 5%–95% non-condensing.
Q5: Does it have explosion protection?
A5: Yes, it carries multiple certifications for use in Zone 2 hazardous areas.
Q6: Is any routine maintenance required?
A6: No. There are no user-serviceable parts.
Q7: Can it be used with any I/O card?
A7: No. The rotary keying must match the specific I/O card.
Q8: What precautions should be taken during installation?
A8: Follow the “DeltaV Zone 2 Installation Instructions” and hardware manuals strictly to ensure safe installation.
