Technical Specifications
| Specification Category | Details |
|---|---|

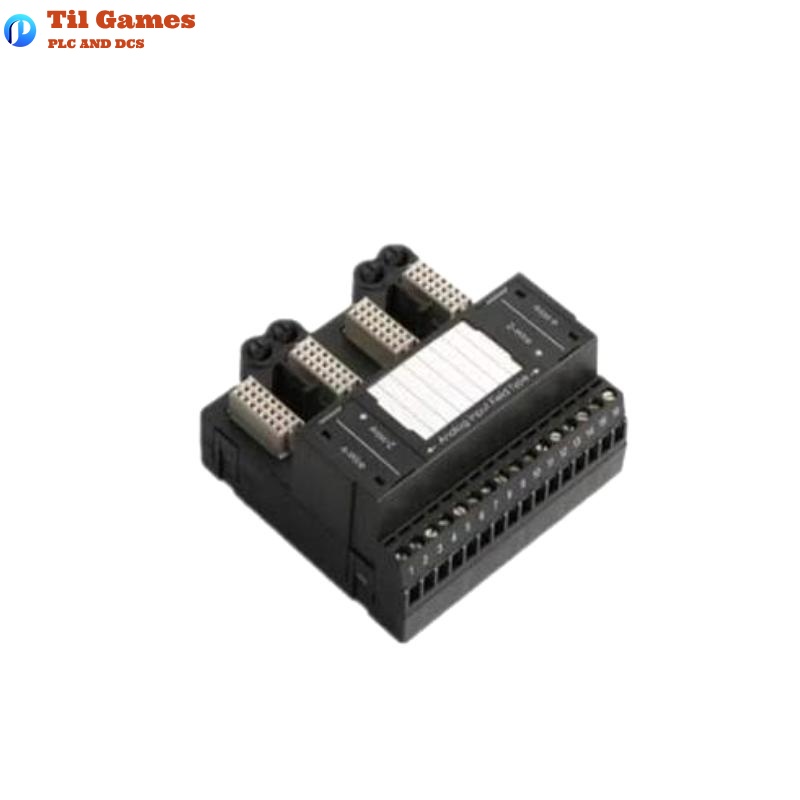

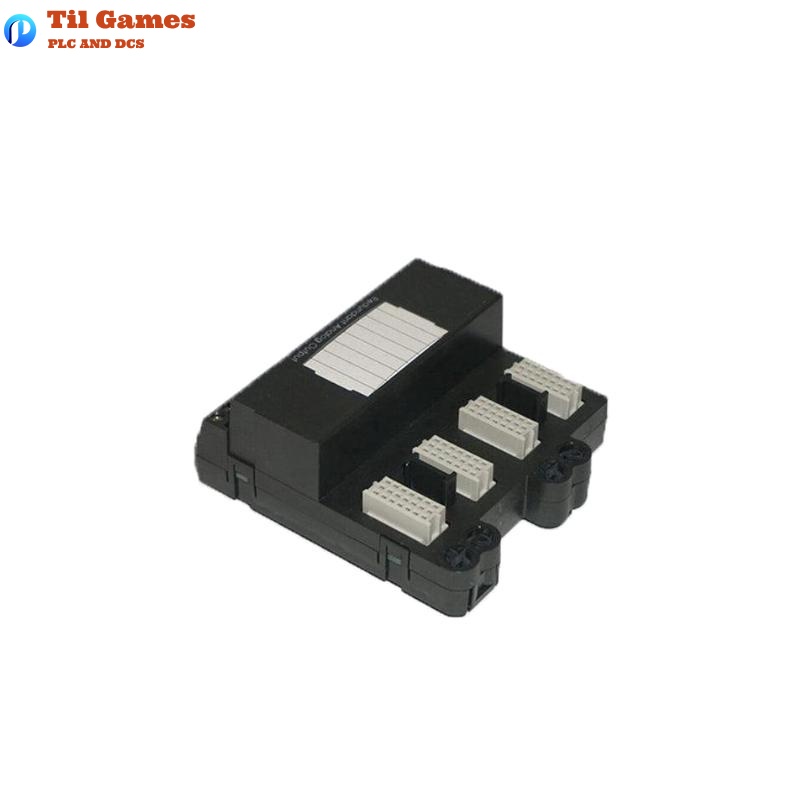

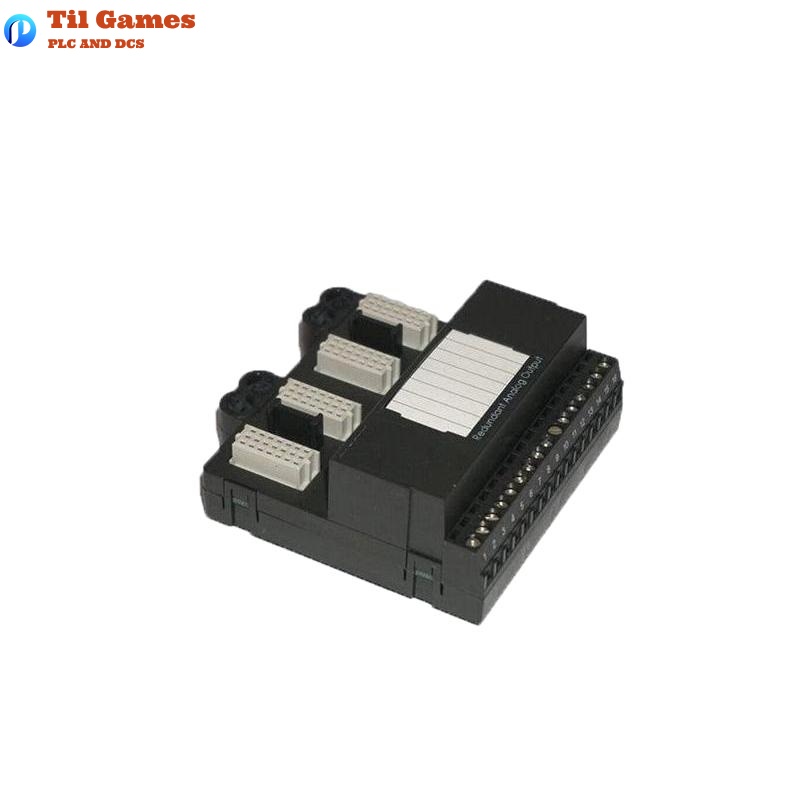

| Model | KC4011X1-BP1 |
| Type | 4-Wire 16-Channel Analog Input Terminal Block |
| Per Channel Power | 30 VDC at up to 500 mA |
| Operating Temperature | -40°C to +70°C |
| Shock | 10g half-sine wave for 11 ms |
| Vibration | 2–13.2 Hz at 1 mm peak-to-peak; 13.2–150 Hz at 0.7 g |
| Airborne Contaminants | ISA-S71.04 –1985 Class G3 |
| Relative Humidity | 5% to 95%, non-condensing |
| Safety Approvals | ATEX, IECEx, FM, UKEX |
| Terminal Block Keying | A6 |
| Dimensions (L×W×H) | 110 x 45 x 120 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the KC4011X1-BP1 support?
A1: It supports 16 analog input channels with 4-wire configuration.
Q2: Can the terminal block be replaced while the system is powered?
A2: Yes, but only if no I/O card is installed and no field wiring is connected.
Q3: Does the unit require periodic calibration?
A3: No, calibration is not required.
Q4: What is the operating temperature range of this module?
A4: The unit operates in temperatures from -40°C to +70°C.
Q5: Is the module vibration-resistant?
A5: Yes, it withstands vibrations up to 150 Hz at specified levels.
Q6: What safety certifications does it comply with?
A6: The module is certified under ATEX, IECEx, FM, and UKEX.
Q7: Is it suitable for environments with corrosive gases?
A7: Yes, it meets ISA Class G3 for airborne contaminants.
Q8: Are there any user-serviceable parts inside the module?
A8: No, the unit contains no user-serviceable components and must not be disassembled.
