Technical Specifications
| Item | Description |
|---|---|
| Model | KC4011X1-BA1 |

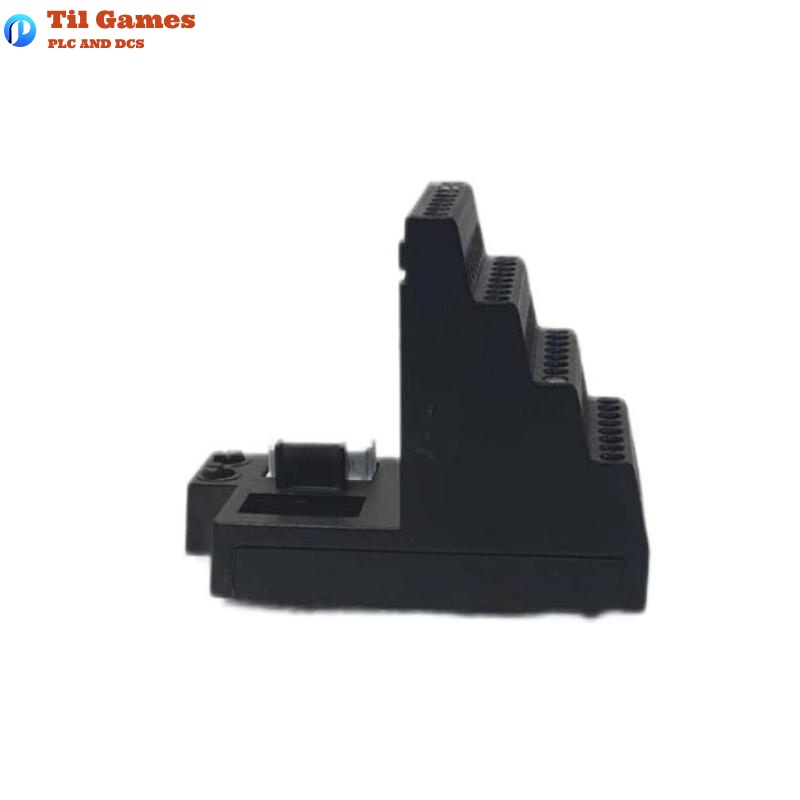

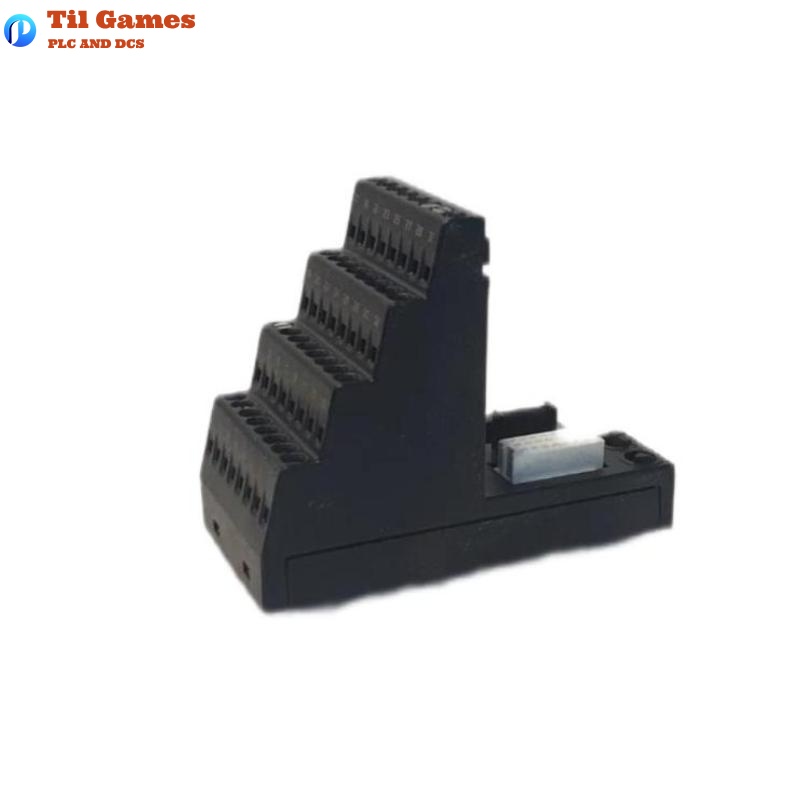

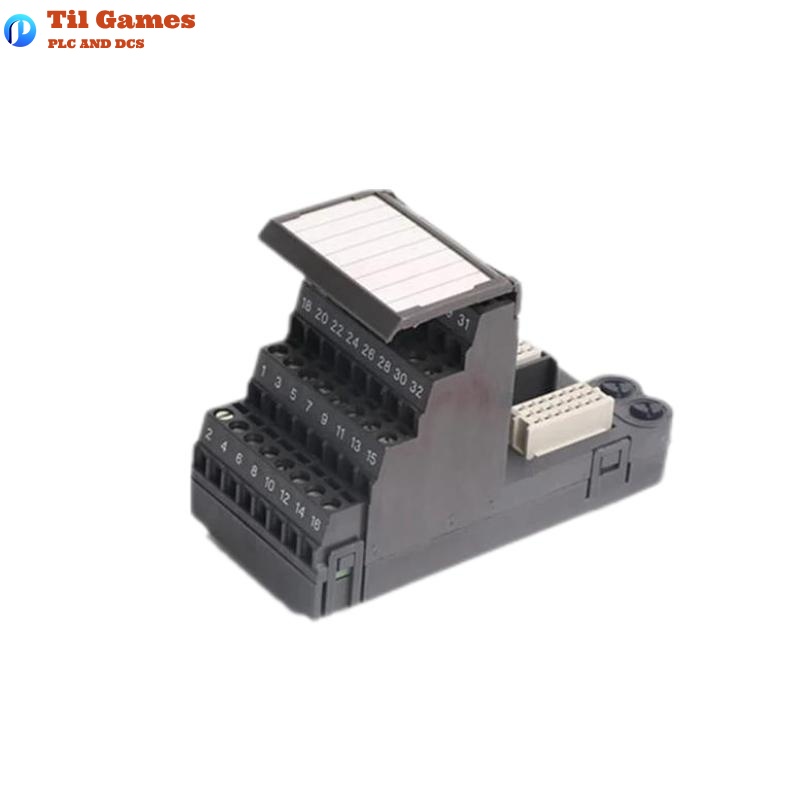

| Product Name | 4-Wire 16-Channel Analog Input Terminal Block |
| Power Specification | 30 VDC @ 500 mA per channel |
| Operating Temperature | -40°C to +70°C |
| Shock Rating | 10 g half-sine wave for 11 ms |
| Vibration Rating | 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
| Airborne Contaminants | ISA-S71.04–1985 Class G3 |
| Relative Humidity | 5% to 95%, non-condensing |
| Certifications | ATEX II 3G Ex ec IIC Gc, FM, IECEx |
| Hazardous Location | CL. I Div. 2 GP. A,B,C,D; CL. I Zone 2 AEx/Ex ec IIC Gc |
| Terminal Block Keying | A2 |
| Installation Condition | Must be inserted/removed without I/O card and no field wiring connected |
| Maintenance | No user-serviceable parts, no calibration required |
| Dimensions (L x W x H) | 110 x 45 x 120 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range for this terminal block?
A1: It operates within a temperature range of -40°C to +70°C.
Q2: What is the power rating per channel?
A2: Each channel supports 30 VDC at a maximum of 500 mA.
Q3: Can this terminal block be hot-swapped?
A3: Yes, it can be inserted or removed with system power on, provided no I/O card is installed and no field wiring is connected.
Q4: Is calibration required for this module?
A4: No, calibration is not required; the unit has no user-serviceable components.
Q5: Is this product certified for hazardous area use?
A5: Yes, it is certified under ATEX, FM, and IECEx standards for use in Zone 2 hazardous environments.
Q6: What are the vibration and shock ratings?
A6: Shock is rated at 10 g for 11 ms; vibration is 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz).
Q7: What is the airborne contaminants rating?
A7: Rated for ISA-S71.04-1985 Class G3 airborne contaminant levels.
Q8: What are the physical dimensions and weight of the unit?
A8: The dimensions are 110 x 45 x 120 mm and the weight is 0.4 kg.
