Technical Specifications
| Parameter Category | Description |
|---|---|

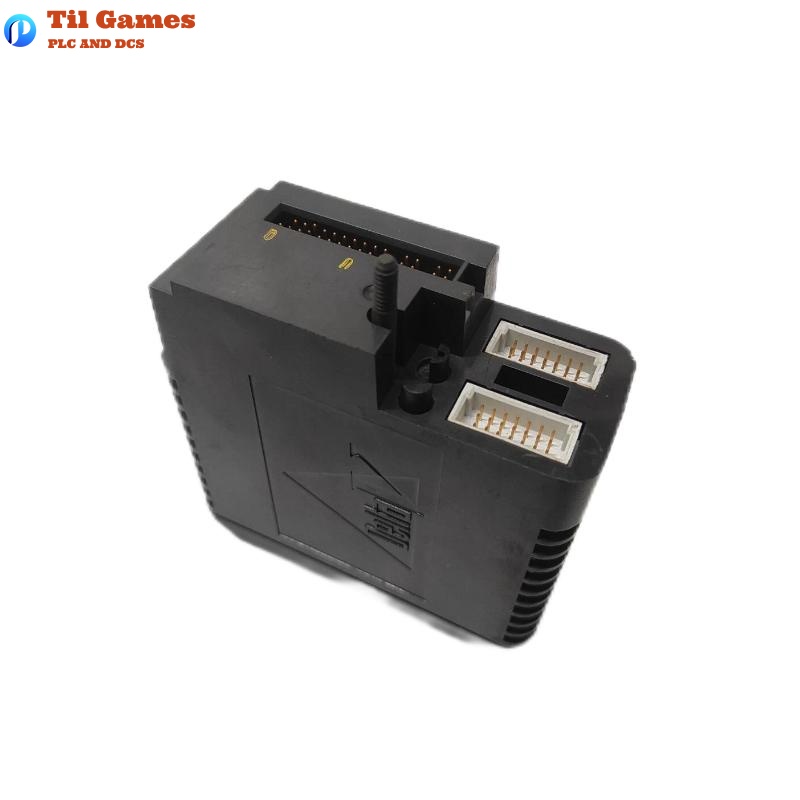

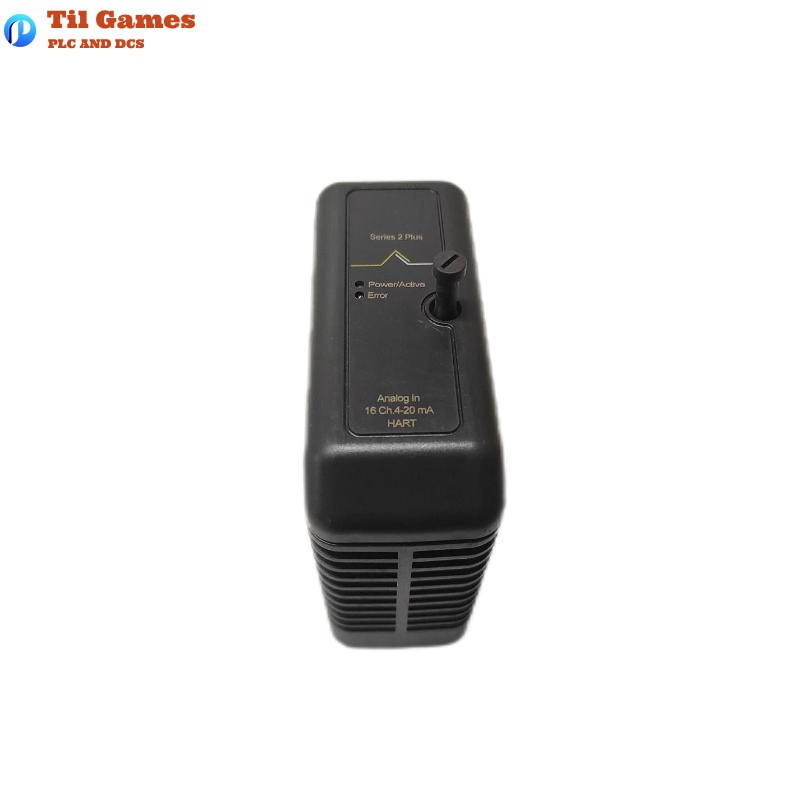

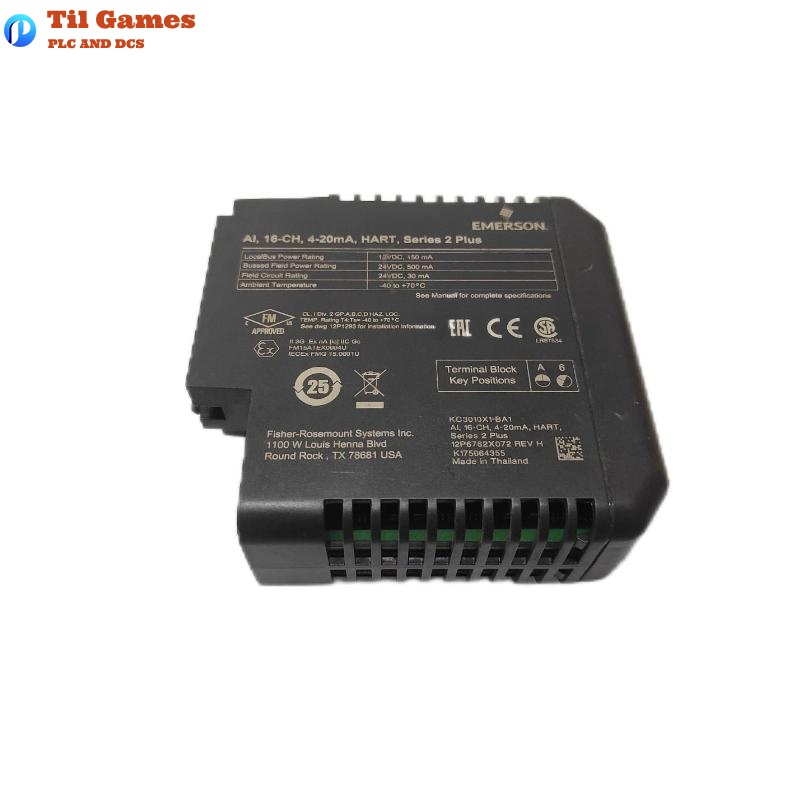

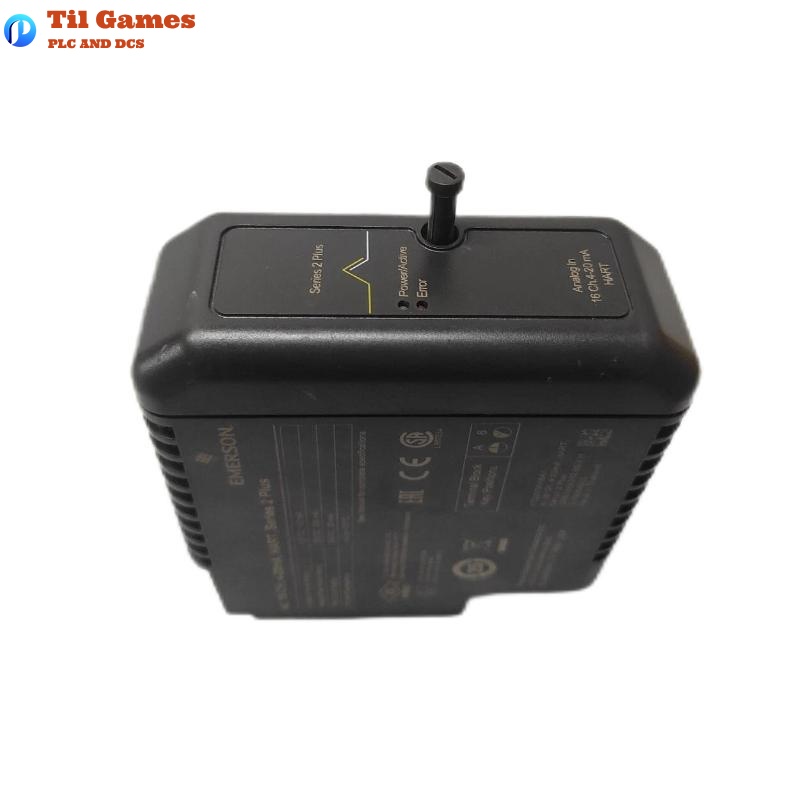

| Module Name | KC3010X1-BA1 |
| Input Channels | 16 channels |
| Input Signal Type | 4-20 mA with HART support |
| Local Bus Power | 12 VDC at 150 mA |
| Bussed Field Power | 24 VDC at 500 mA |
| Field Circuit Power | 24 VDC at 30 mA per channel |
| Operating Temperature | -40 °C to +70 °C |
| Vibration | 1 mm (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
| Shock | 10 g, 11 ms half-sine pulse |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5% to 95%, non-condensing |
| Installation Area | Zone 2 hazardous areas |
| Certification | ATEX II 3 G Ex nA [ic] IIC Gc |
| Terminal Block Keying | Position A6 |
| Dimensions (W x H x D) | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What input types are supported by the KC3010X1-BA1 module?
A1: It supports 4-20 mA analog inputs with HART communication capability.
Q2: How many channels does the module support?
A2: The module supports up to 16 analog input channels.
Q3: What is the operating temperature range of this module?
A3: It operates reliably from -40°C to +70°C.
Q4: Is the module certified for use in hazardous areas?
A4: Yes, it is ATEX Zone 2 certified for II 3 G Ex nA [ic] IIC Gc environments.
Q5: What power considerations should be made during installation?
A5: Field power must be disconnected before installation or removal; hot-swapping is not supported.
Q6: Does the module require calibration?
A6: No calibration is required; the module is pre-configured at the factory.
Q7: Can the module be replaced while powered on?
A7: No, the module must be powered down before insertion or removal.
Q8: Does the module have contamination protection?
A8: Yes, it complies with ISA-S71.04 Class G3 standards for airborne contaminants.
