Technical Specifications
| Item | Specification |
|---|---|

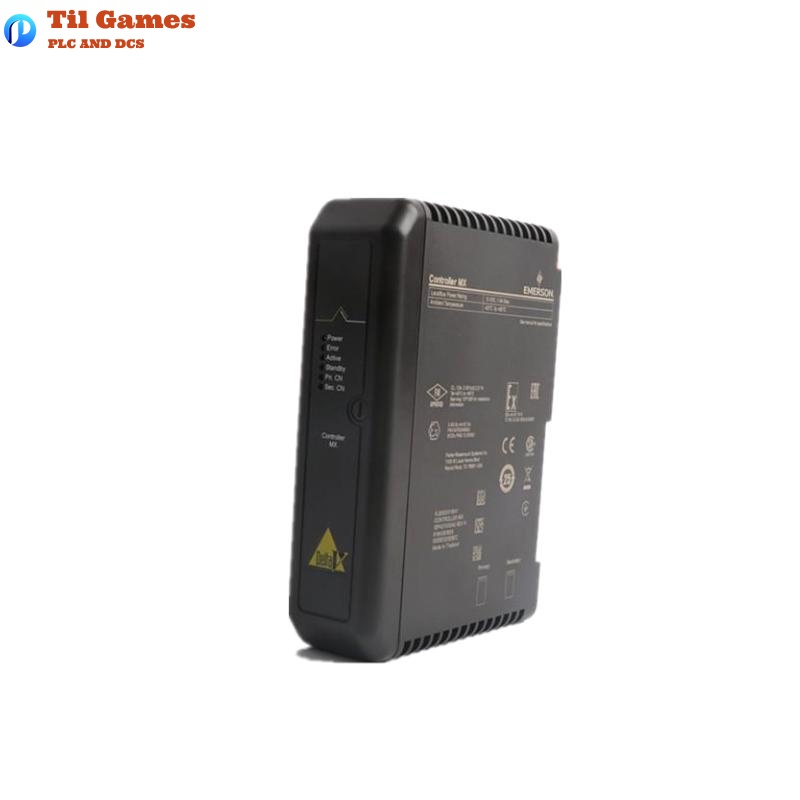

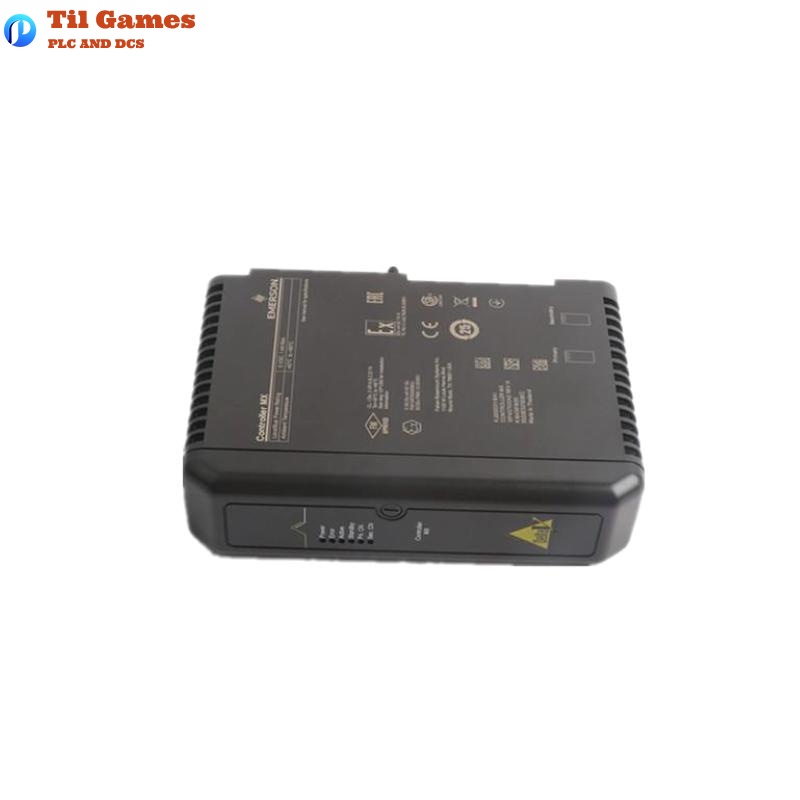

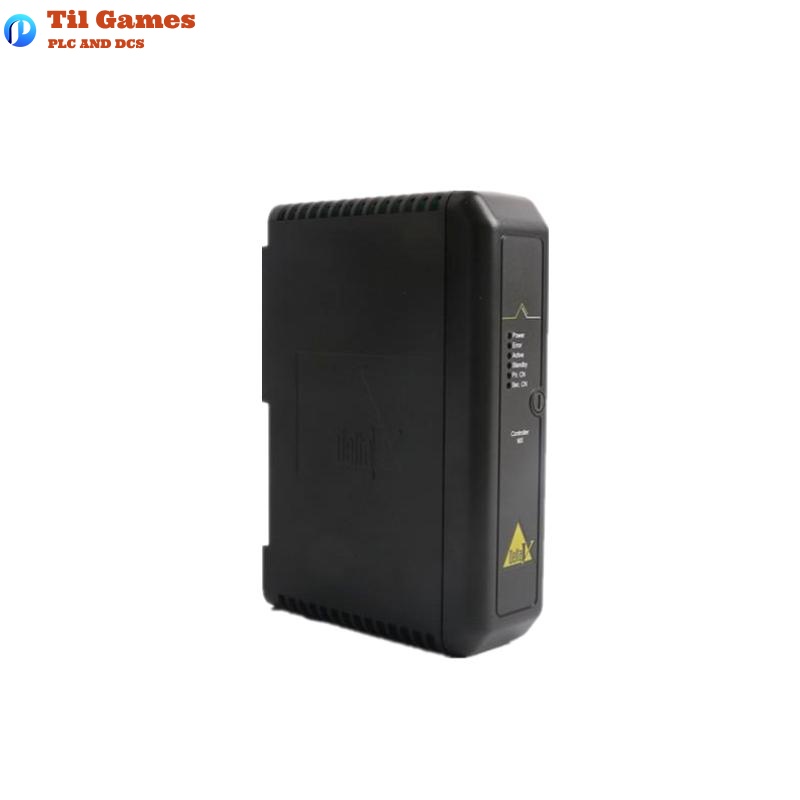

| Model Number | KJ2005X1-BA1 (MX Controller) |
| User Memory | 96 MB |
| Power Dissipation | 5.0 W typical, 7.0 W max |
| Power Supply | Supplied by system power via 2-wide carrier |
| Fuse Protection | 3.0 A, non-replaceable |
| Control Network Interface | 8-pin RJ-45 (Primary and Redundant) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% – 95%, non-condensing |
| Shock Resistance | 10g ½-sine wave for 11 ms |
| Contaminant Protection | ISA-S71.04-1985 G3 (Conformal Coating) |
| Redundancy Support | 1:1 Controller Redundancy |
| I/O Support | Supports CHARM I/O (DeltaV v14.3 or later) |
| Mounting | Right slot of Power/Controller Carrier |
| Certifications | CE, FM, CSA, ATEX, IECEx, IACS, ABS, DNV, Achilles Level 2 |
| Hazardous Area Compliance | Class I, Div 2, Groups A-D, T4; ATEX/IECEx Zone 2 |
| Cold Restart | Supports autonomous cold restart |
| Dimensions | 139.1 x 41.8 x 160.6 mm |
| Weight | 0.272 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the KJ2005X1-BA1 support online replacement?
A1: Yes, it supports hot-swapping without disrupting the control process.
Q2: What is the maximum number of DSTs supported?
A2: It supports 50 DSTs by default and can be licensed up to 1500 DSTs.
Q3: Is this controller compatible with legacy PROVOX or RS3 systems?
A3: Yes, it supports migration interfaces for PROVOX and RS3, making it suitable for system upgrades.
Q4: What DeltaV version is required to operate the controller?
A4: It requires DeltaV v10.3.0 or later. A hotfix is needed for v11.3.2 and earlier.
Q5: Does it support redundant network communication?
A5: Yes, it features primary and secondary RJ-45 ports and supports 1:1 redundancy.
Q6: In what environments can this controller be installed?
A6: It is certified for Class I, Division 2 and ATEX Zone 2 hazardous locations.
Q7: Does the controller support HART data pass-through?
A7: Yes, it enables smart HART information to be accessed remotely by workstation tools.
Q8: What LED indicators are provided on the module?
A8: It has indicators for power, error, active/standby state, network status, and upgrade status.
