Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KJ2003X1-BK1 |
| Max Discrete Signal Tags (DSTs) | 750 |
| SCADA Tags | 3200 |
| Max Output Data Rate | 2000 values per second |
| Max Input Data Rate | 250 values per second |
| Max Client Nodes (unsolicited) | 64 |
| Module Execution Rates | 100 ms to 60 s (selectable: 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, etc.) |
| Memory | 48 MB |
| Power Dissipation | 5.0 W (normal), 7.0 W (max) |
| Dimensions (W x D x H) | 162 x 41.8 x 199.3 mm |
| Weight | 2.5 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20, NEMA 12 |
| Corrosive Gas Rating | ISA-S71.04 G3 |
| Vibration Resistance | 1 mm (5–16 Hz), 0.5 g (16–150 Hz) |
| Shock Resistance | 10 g, 11 ms ½ sine wave |
| Electrical Protection | 3.0 A internal fuse (non-replaceable) |
| Primary/Secondary Network Ports | Dual 8-pin RJ-45 connectors (Ethernet) |

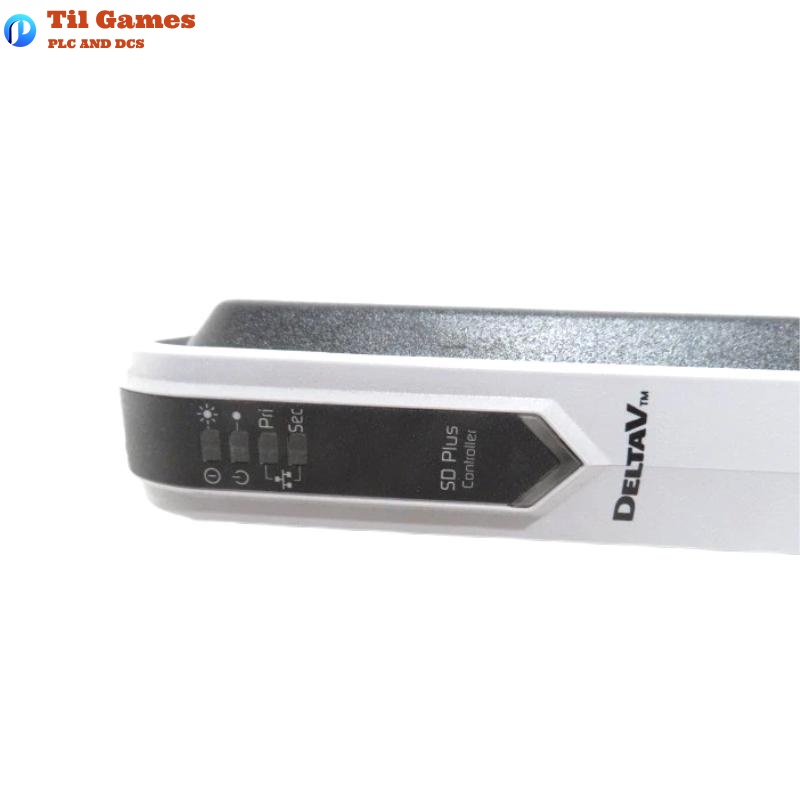

| LED Indicators | Power, Error, Active, Standby, Primary/Secondary Communication |
FAQ
FAQ
Q1: What is the maximum number of I/O signals the KJ2003X1-BK1 supports?
A1: The controller supports up to 750 individual I/O signals.
Q2: Does the controller support redundant configuration?
A2: Yes, it supports 1:1 redundancy with a second controller and power supply.
Q3: What types of I/O modules are compatible with this controller?
A3: It supports traditional DeltaV I/O cards, CHARM I/O cards, and WirelessHART I/O.
Q4: What is the memory capacity of the KJ2003X1-BK1?
A4: The controller has 48 MB of working memory.
Q5: Is the controller suitable for harsh environments?
A5: Yes, it meets G3 requirements and operates between -40°C and +70°C.
Q6: Can I upgrade from SD Plus to SX Controller without changing configurations?
A6: Yes, existing configurations and documentation remain compatible.
Q7: What diagnostic capabilities are integrated?
A7: It includes automatic diagnostics and timestamped event notifications.
Q8: What is the physical size and weight of the unit?
A8: Dimensions are 162 x 41.8 x 199.3 mm, and the weight is 2.5 kg.
