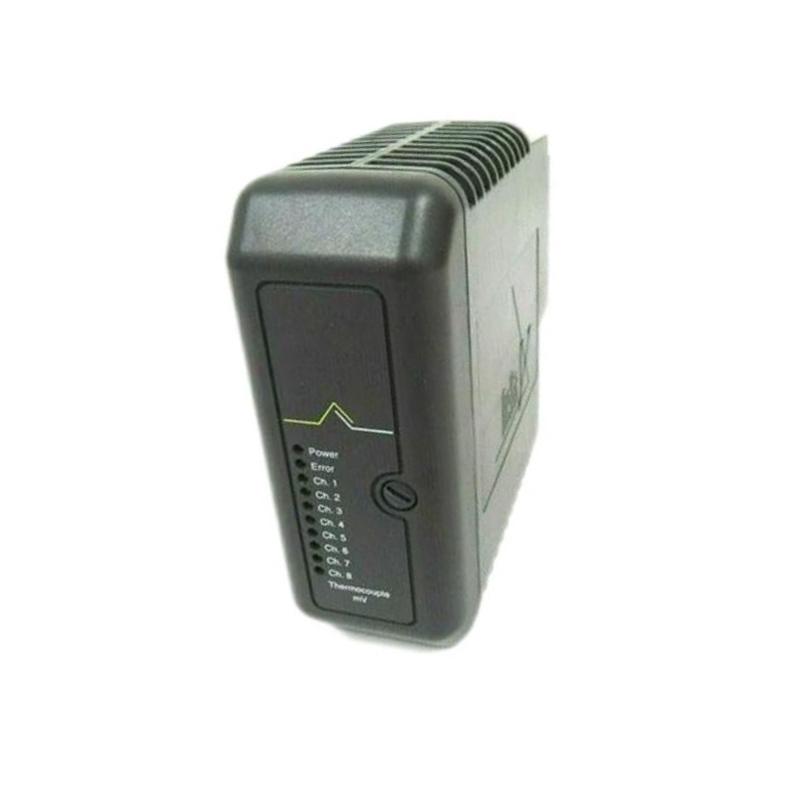

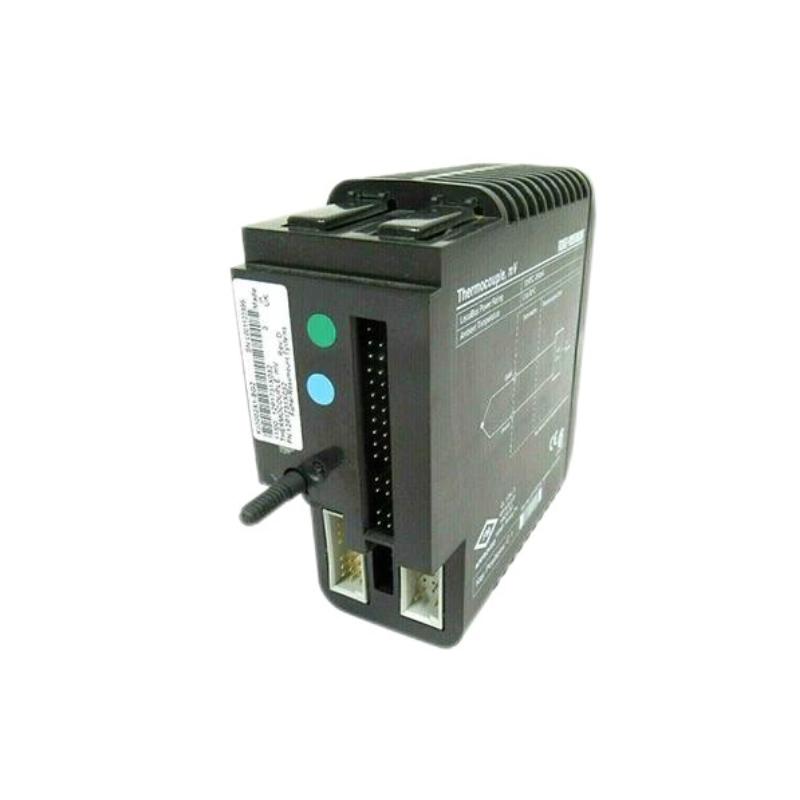

Emerson KJ3002X1-BG2 12P1731X032 DeltaV Analog Input Thermocouple Card

Frequently Asked Questions (FAQ)

Q1: How many thermocouple types are supported by KJ3002X1-BG2?
A1: The module supports multiple industry-standard thermocouple types; refer to the DeltaV configuration guide for specific types.

Q2: Is hot-swapping supported for this module?
A2: Yes, hot-swapping is supported when specific power supply conditions are met. See the system manual for full details.

Q3: What is the operating temperature range of the module?
A3: The operating range is from 0°C to +60°C.

Q4: Can this module be installed in Zone 2 hazardous areas?
A4: Yes, it can be installed in Zone 2 areas if enclosed in an IP54-rated (or better) cabinet according to EN 60079-15.

Q5: What is the input current per channel?
A5: The input current is 0.3 mA per channel.

Q6: What are the intrinsic safety parameters of the module?
A6: Uo = 5.5V, Io = 0.3mA, Po = 0.8mW, Co = 1000μF, Lo = 1000mH.

Q7: What are the module’s dimensions and weight?
A7: Dimensions: 107 x 41 x 105 mm; Weight: 0.281 kg.

Q8: Does KJ3002X1-BG2 provide energy-limited operation?
A8: Yes, the module is designed with energy-limited circuits suitable for Zone 2 intrinsic safety.

12P1731X032 Analog Input Thermocouple Card Emerson KJ3002X1-BG2
