Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | KJ3004X1-BA1 |
| Brand | Emerson |

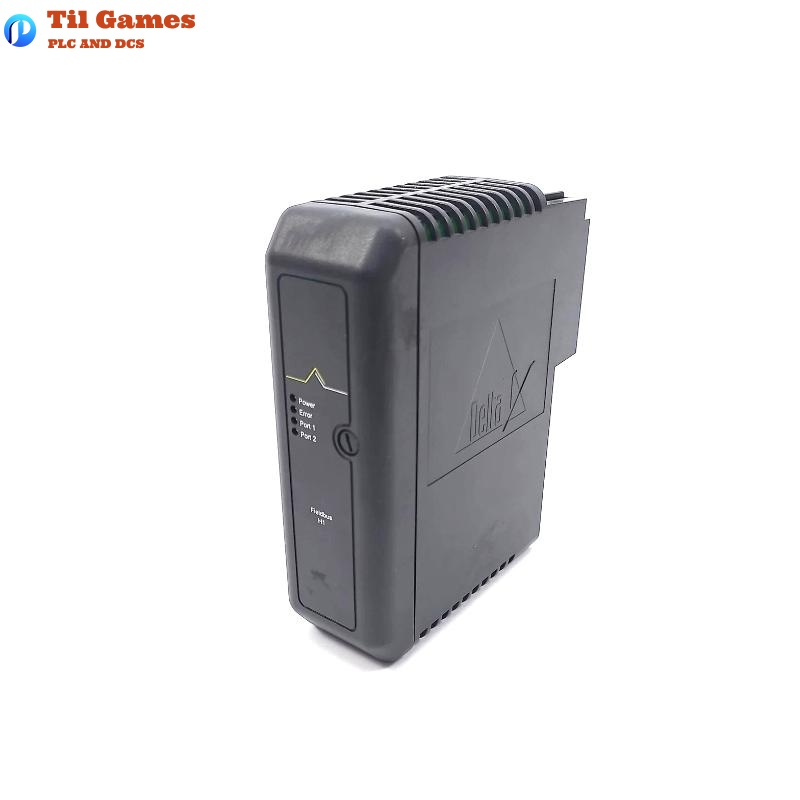

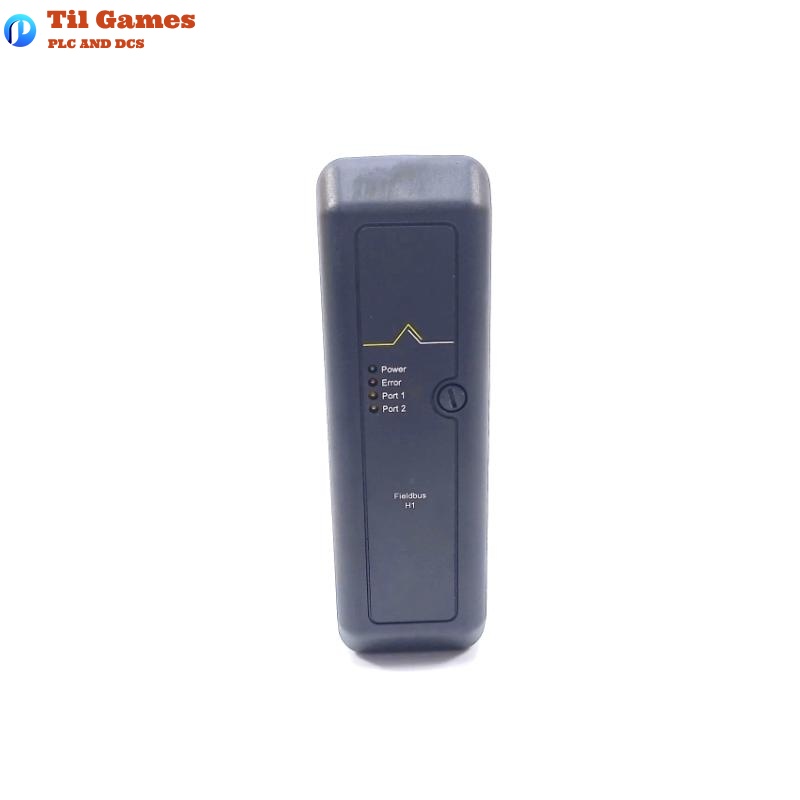

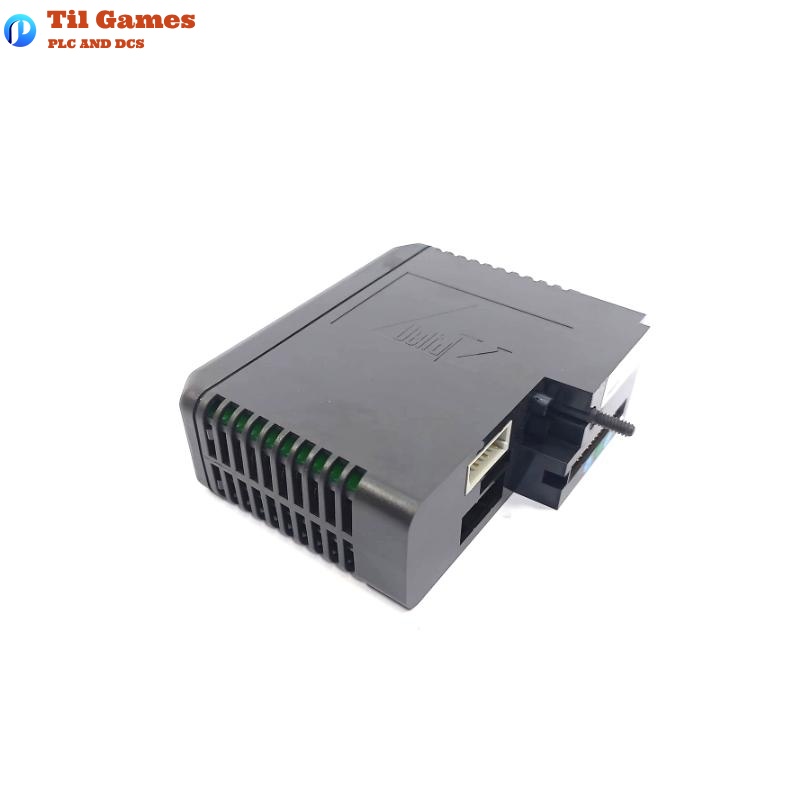

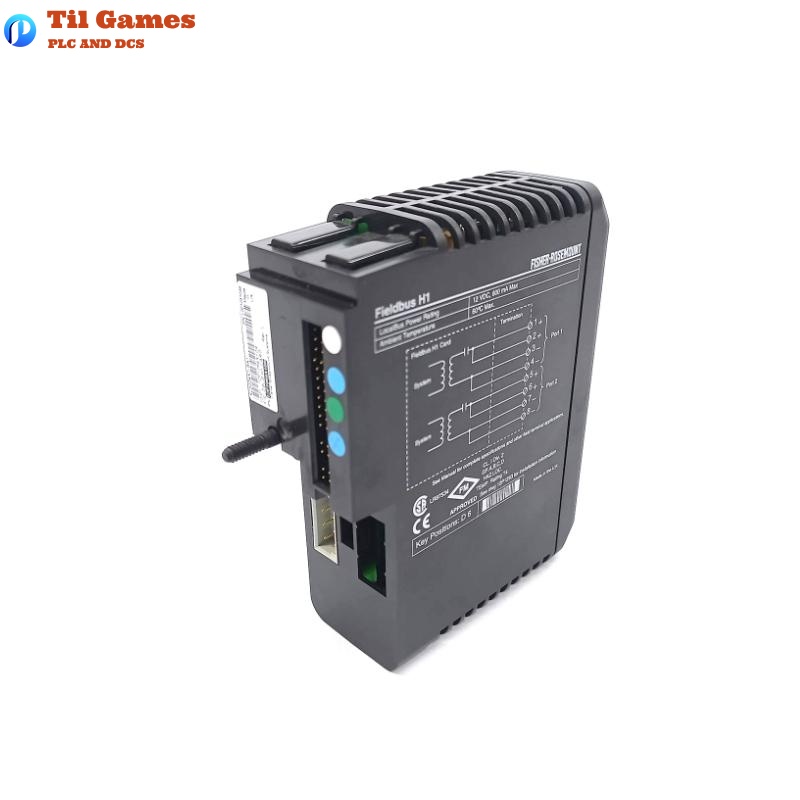

| Product Name | Fieldbus H1 Terminal Block |
| Interface Type | H1 Fieldbus |
| Mounting Method | DIN Rail Mounting |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Electrical Isolation | 250V AC RMS minimum |
| Connection Type | Screw Terminals |
| Material | Engineering Plastic |
| Dimensions (LxWxH) | 138 x 102 x 25 mm |
| Weight | 0.272 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is the KJ3004X1-BA1 used in?
A1: It is primarily used in Emerson DeltaV systems for H1 Fieldbus communication.
Q2: How many Fieldbus channels does it support?
A2: The KJ3004X1-BA1 supports a single H1 Fieldbus channel.
Q3: What types of I/O modules is it compatible with?
A3: It is compatible with DeltaV series I/O modules that support Fieldbus communication.
Q4: What is the operating temperature range of this module?
A4: The operating range is -40°C to +70°C.
Q5: What is the mounting method for this module?
A5: It uses standard DIN rail mounting for easy integration.
Q6: Does the module provide electrical isolation?
A6: Yes, it provides electrical isolation rated at 250V AC RMS.
Q7: What are the dimensions of the module?
A7: The module measures 138 x 102 x 25 mm.
Q8: Does this module require a separate power supply?
A8: No, it receives power from the system main module or backplane.
