Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ4001X1-CE1 |

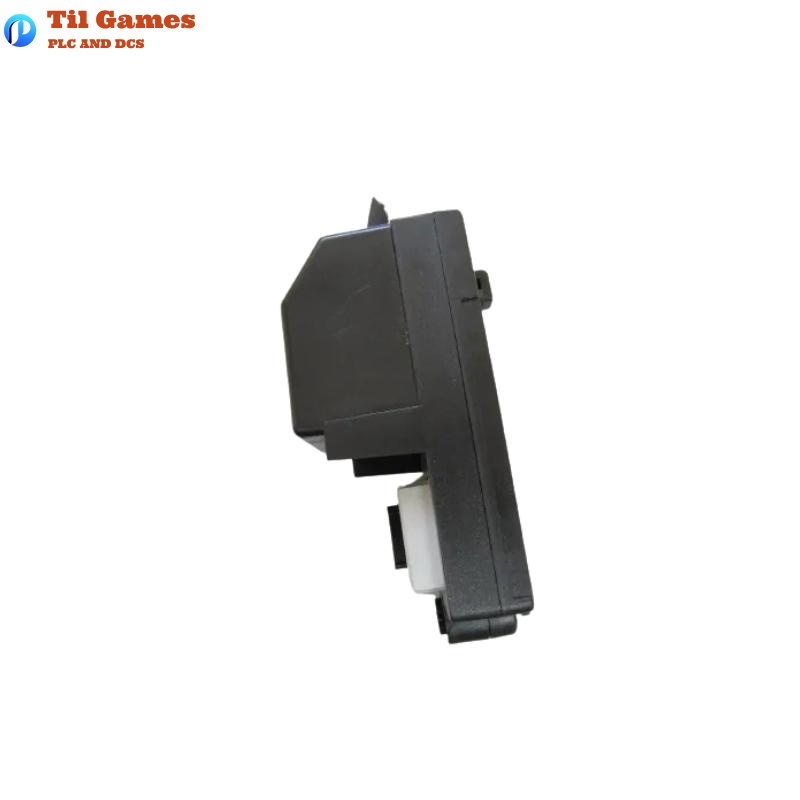

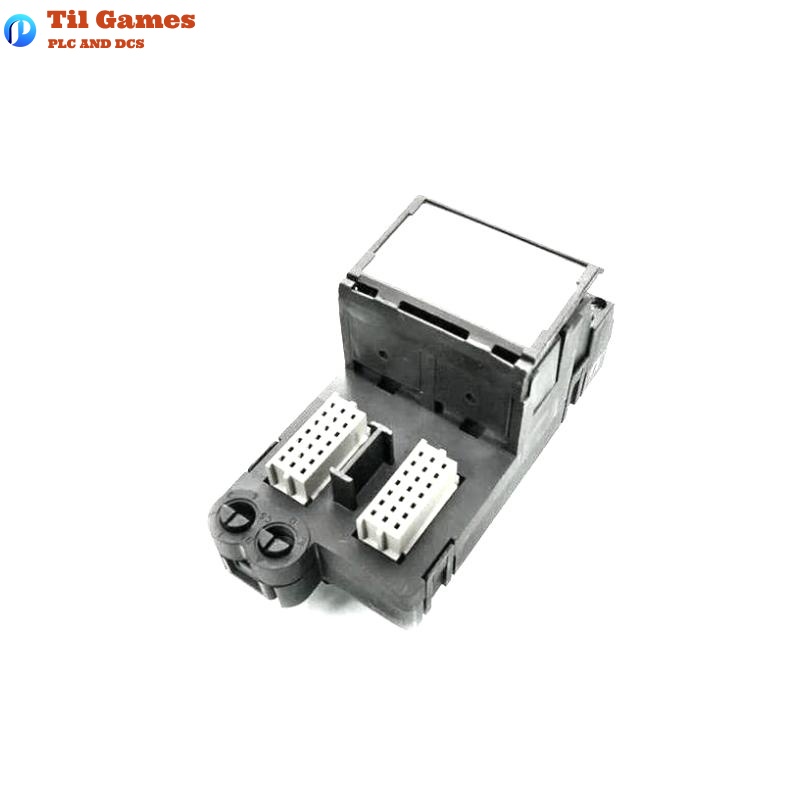

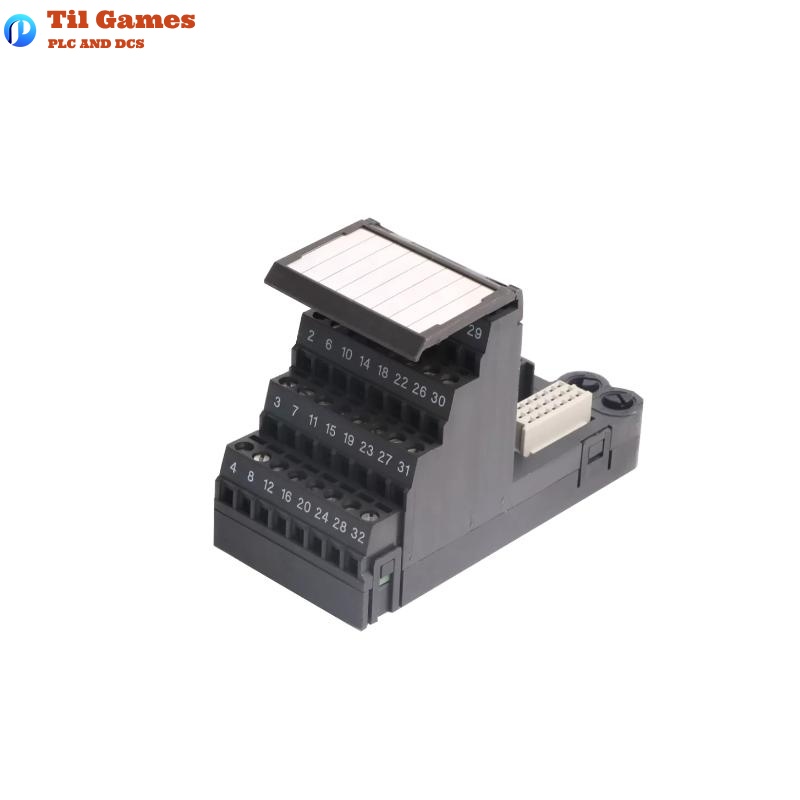

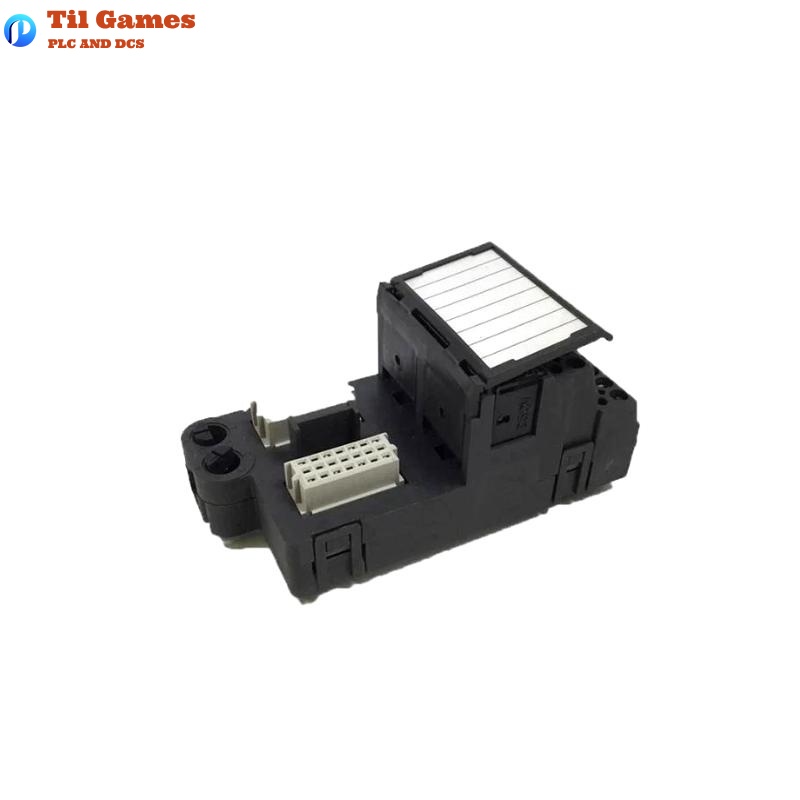

| Product Type | Mass Terminal Block, 16-Pin |
| Input Power Rating | 30 VDC @ 1 A per channel |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock Resistance | 10 g, half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Airborne Contaminants | ISA-S71.04 –1985 Class G3 |
| Certification (ATEX/IECEx/FM) | Ex ec IIC Gc; FM, ATEX, IECEx certified |
| Installation | Must be installed with system power OFF |
| Maintenance | No user-serviceable parts; calibration not needed |
| Dimensions (W x H x D) | 120 x 70 x 25 mm |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the maximum input current supported per channel?
A1: Each channel supports up to 1 A at 30 VDC.
Q2: Can the KJ4001X1-CE1 be inserted or removed while powered?
A2: No, the unit must not be inserted or removed while the system is energized.
Q3: What is the operational temperature range of this terminal block?
A3: The unit operates reliably from -40°C to +70°C.
Q4: Does this product require calibration?
A4: No calibration is required during its service life.
Q5: What type of environments is the product rated for?
A5: It is suitable for environments rated ISA-S71.04 –1985 Class G3.
Q6: Is the terminal block certified for hazardous locations?
A6: Yes, it is certified with ATEX, IECEx, and FM for Zone 2 and Class I Div. 2 hazardous areas.
Q7: Can it operate in high humidity conditions?
A7: Yes, it supports 5% to 95% non-condensing relative humidity.
Q8: Does the unit require regular maintenance?
A8: No, it has no user-serviceable parts and requires no periodic maintenance.
