Technical Specifications
| Parameter | Description |
|---|---|

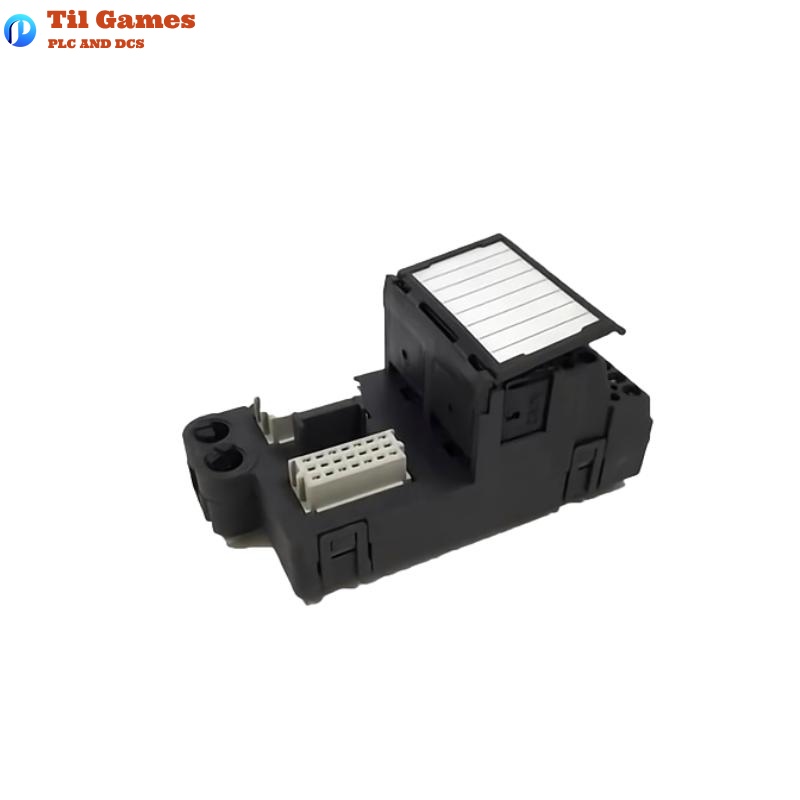

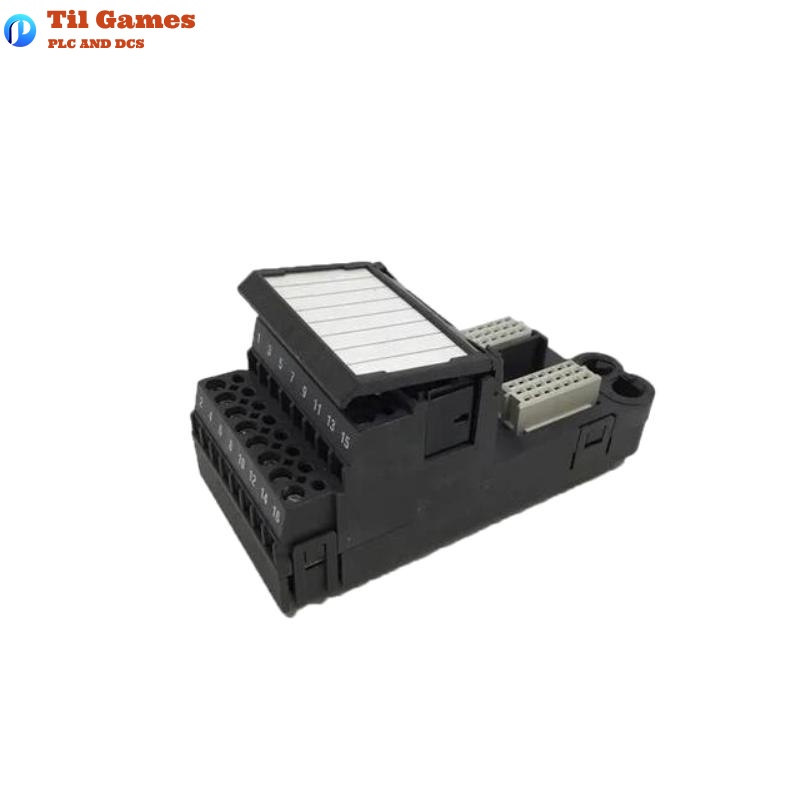

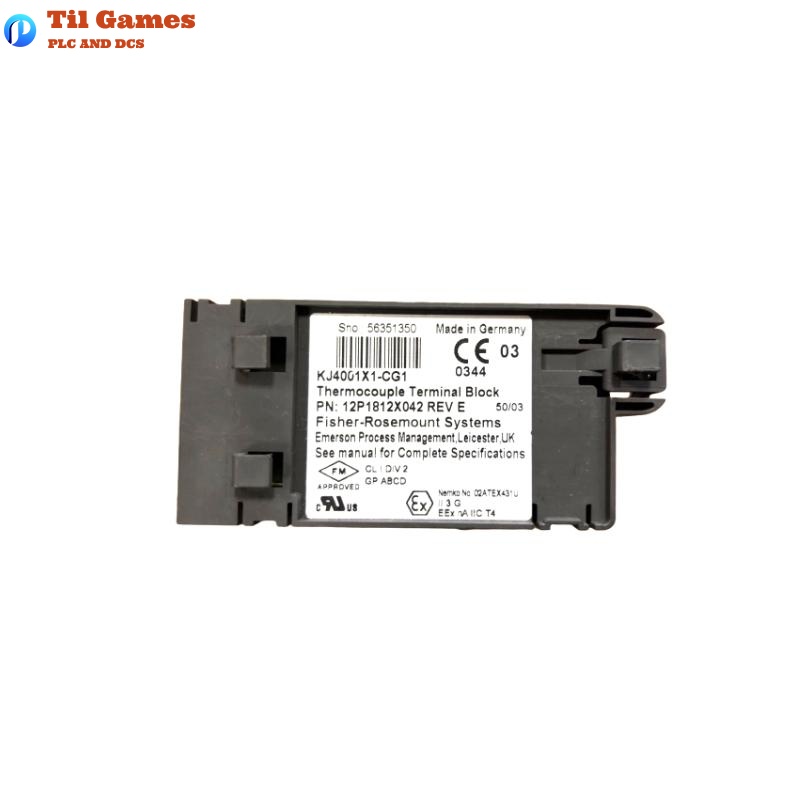

| Model Number | KJ4001X1-CG1 |
| Brand | Emerson |
| Product Type | Thermocouple Terminal Block |
| Number of Channels | 16 channels |
| Supported Thermocouple Types | J, K, T, E, R, S, B, N |
| Mounting Method | DIN rail mounting |
| Signal Type | Analog input (thermocouple) |
| Electrical Isolation | Channel-to-channel and channel-to-ground |
| Operating Voltage | 24 VDC |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (W x H x D) | 150 x 120 x 45 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What thermocouple types does the Emerson KJ4001X1-CG1 support?
A1: It supports thermocouple types J, K, T, E, R, S, B, and N.
Q2: Does each channel have electrical isolation?
A2: Yes, each channel is electrically isolated both channel-to-channel and channel-to-ground.
Q3: What is the operating voltage for this module?
A3: The module operates at 24 VDC.
Q4: What is the operating temperature range?
A4: The operating range is -40°C to +70°C, suitable for harsh environments.
Q5: What are typical applications for the KJ4001X1-CG1 module?
A5: It is commonly used in process control, energy management, chemical, power, and industrial automation systems.
Q6: Can it be installed on a standard DIN rail?
A6: Yes, it supports DIN rail mounting.
Q7: What are the dimensions and weight of the module?
A7: The dimensions are 150 x 120 x 45 mm, and it weighs 0.7 kg.
Q8: Does this module support redundancy?
A8: This module itself is non-redundant; redundancy can be achieved through system-level design.
