Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | KJ4001X1-NB1 |
| Part Number | 12P3368X012 |

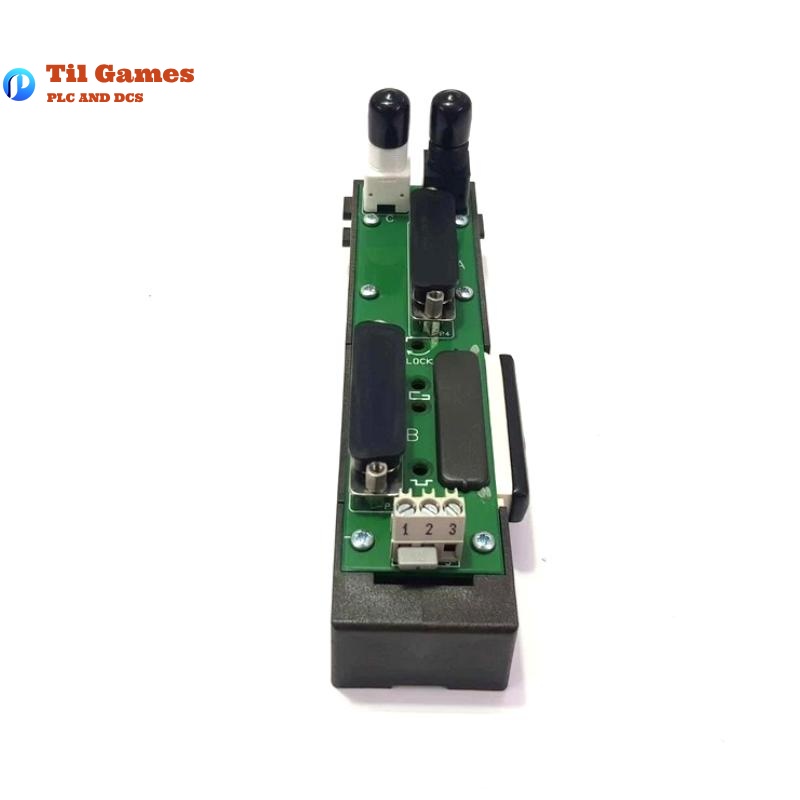

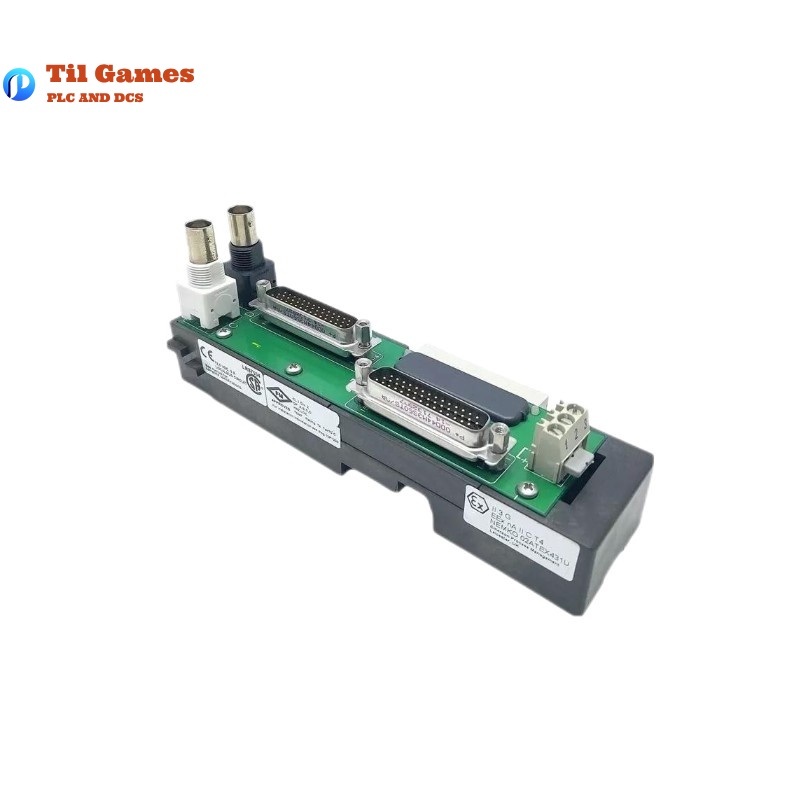

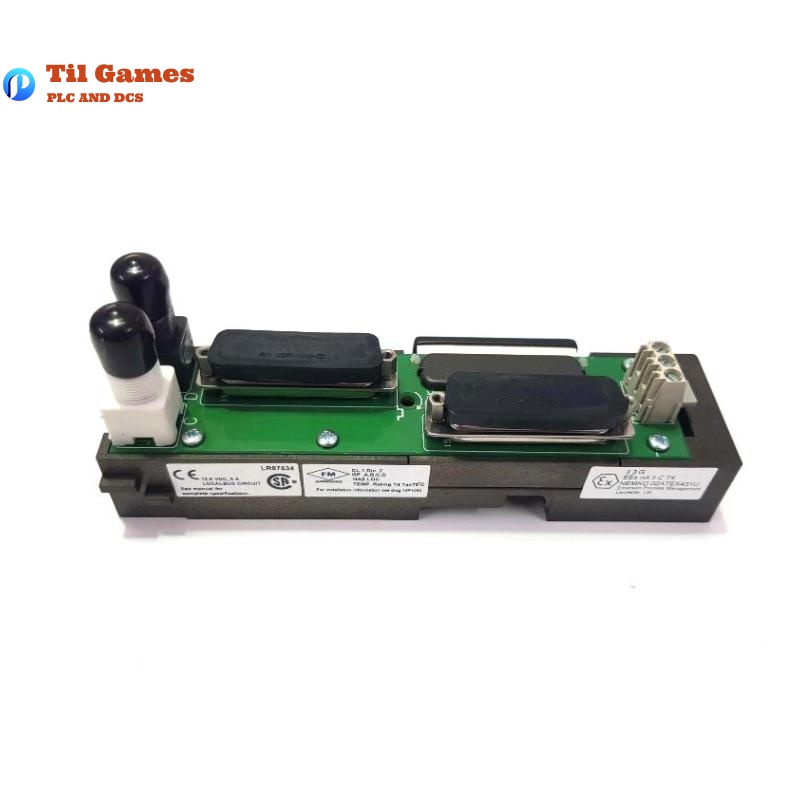

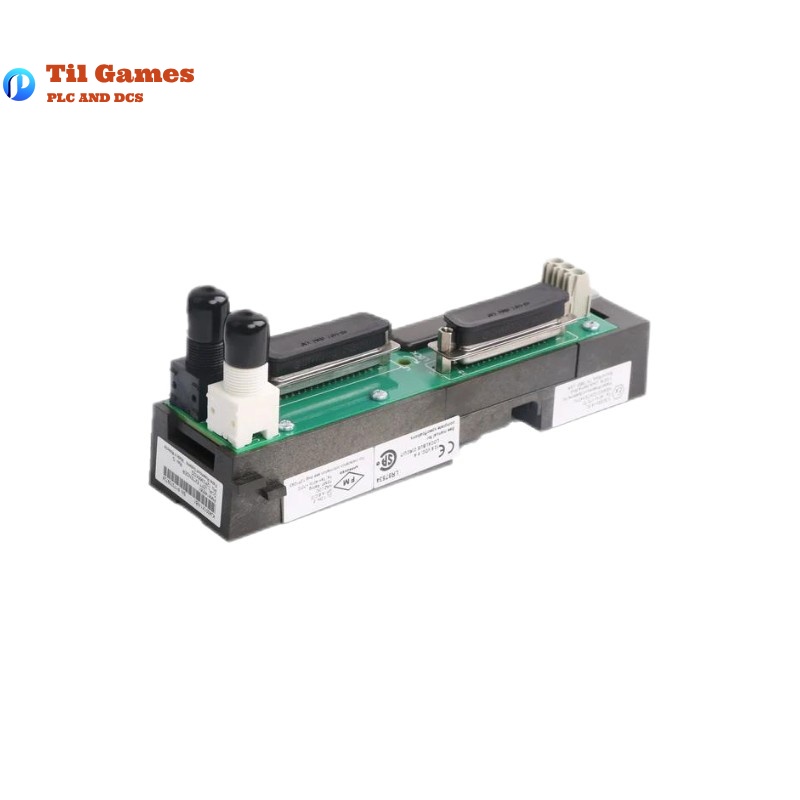

| Product Type | 1-Wide I/O Carrier Extender (Left) |
| Power Supply (Local Bus) | 12 VDC at 8 A |
| Operating Temperature | -40°C to +70°C |
| Shock Resistance | 10g, 11ms half sine wave |
| Vibration Resistance | 1mm peak-to-peak (2–13.2Hz), 0.7g (13.2–150Hz) |
| Airborne Contaminants | ISA-S71.04 –1985 Class G3 |
| Relative Humidity | 5% to 95%, non-condensing |
| Installation Limitations | Max total length of I/O Carriers + Extenders: 6.5m |
| Insertion/Removal Condition | Must be powered down before removing or inserting |
| Dimensions (W x H x D) | 35 x 55 x 155 mm |
| Weight | 0.2 kg |
| Certifications | ATEX, FM, IECEx for Zone 2 / Class I Div. 2 use |
| Maintenance | No user-serviceable parts, no calibration required |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can the KJ4001X1-NB1 be hot-swapped?
A1: No. The unit must not be inserted or removed while the system is energized.
Q2: What is the maximum supported length for connected carriers and extenders?
A2: The combined length must not exceed 6.5 meters.
Q3: Is calibration needed during installation or maintenance?
A3: No calibration is required for this product.
Q4: What environmental conditions does the module support?
A4: It operates between -40°C to +70°C, 5–95% RH non-condensing, and resists shock and vibration per specifications.
Q5: Can this module be used in hazardous locations?
A5: Yes. It is certified for use in Class I Div. 2 and Zone 2 hazardous areas.
Q6: What type of contaminants can the unit tolerate?
A6: The unit meets ISA-S71.04 –1985 Class G3 for airborne contaminants.
Q7: What power does the local bus provide?
A7: It supplies 12 VDC at 8 A.
Q8: Are there any user-serviceable components?
A8: No. The module is factory calibrated and should not be disassembled.
