Technical Specifications
| Category | Details |
|---|---|
| Model Number | KJ4006X1-BP1 |

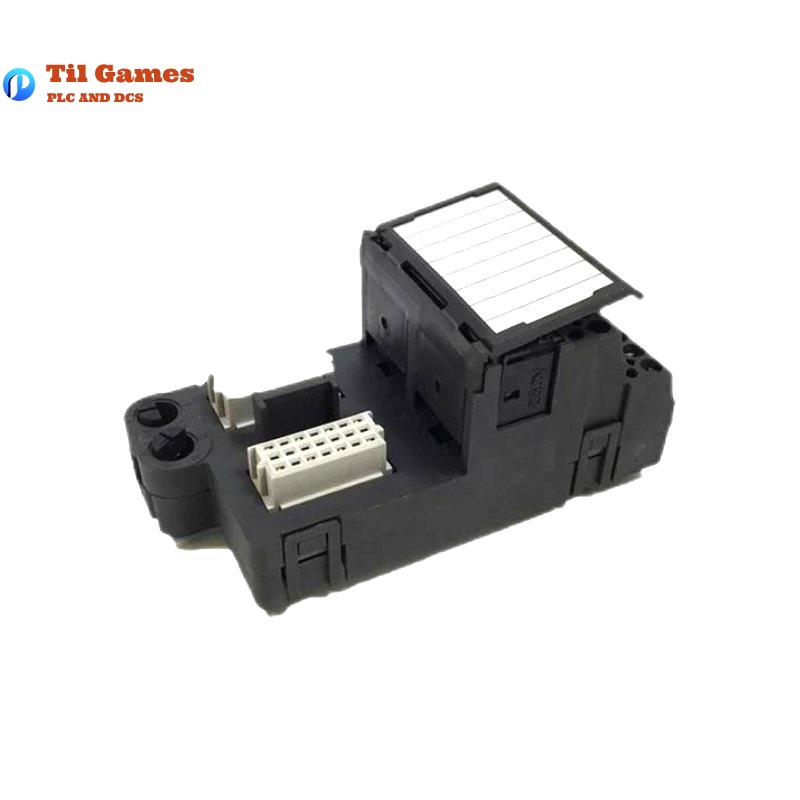

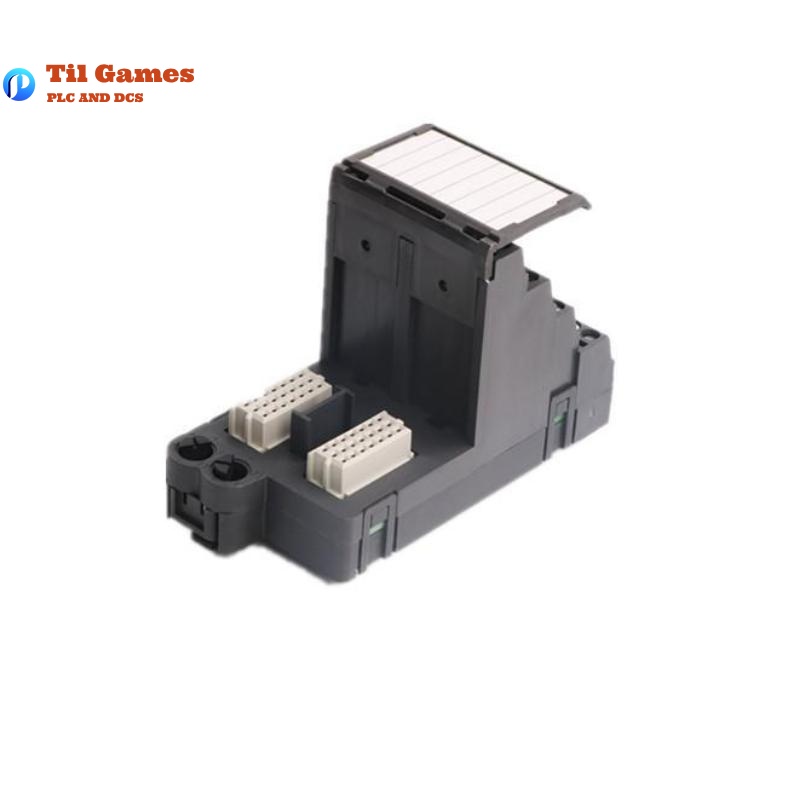

| Product Name | 40-Pin Mass Terminal Block |
| Hazardous Area Rating | II 3G Ex ec IIC Gc; CL. I Div. 2 GP. A,B,C,D; CL. I Zone 2 AEx/Ex ec IIC Gc |
| Field Power | 30 VDC at 3.2 A |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 10g, ½ Sinewave, 11ms duration |
| Vibration Resistance | 1mm Peak-to-Peak (2–13.2Hz); 0.7g (13.2–150Hz) |
| Airborne Contaminants | ISA-S71.04 –1985, Class G3 |
| Keying Position | Set according to installed I/O card |
| Removal Conditions | Permitted under power only if no I/O card or wiring is present |
| User Maintenance | No calibration required; no serviceable parts |
| Dimensions | 146 x 70 x 35 mm |
| Weight | 0.32 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What hazardous zones is the KJ4006X1-BP1 suitable for?
A1: It is rated for use in II 3G Ex ec IIC Gc environments, and is compliant with ATEX, IECEx, and North American CL.I Div.2 and Zone 2 standards.
Q2: What are its power specifications?
A2: It supports 30VDC field power with a maximum output current of 3.2A.
Q3: Can it be inserted or removed under power?
A3: Yes, but only if no I/O card is installed and no field wiring is connected.
Q4: Does the terminal block require calibration or maintenance?
A4: No, it requires no calibration and has no user-serviceable parts.
Q5: Is it reliable under extreme temperatures?
A5: Yes, it operates reliably between -40°C and +70°C.
Q6: How is compatibility with I/O cards ensured?
A6: A rotary keying system ensures proper matching based on the specific I/O card used.
Q7: Does it provide vibration resistance?
A7: Yes, it offers vibration resistance across a range of 2 to 150Hz.
Q8: What airborne contaminant standards does it meet?
A8: It complies with ISA-S71.04 –1985 Class G3, suitable for industrial contamination levels.
