Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ4003X1-BA1 |
| Manufacturer | Emerson |
| Product Series | DeltaV™ VerticalPlus |
| Product Type | 8-Wide VerticalPlus I/O Carrier (Left) |
| Application | DeltaV Distributed Control System (DCS) |
| Carrier Capacity | Supports VerticalPlus I/O Modules |
| LocalBus Power | 12.6 VDC at 15 A |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminant Rating | ISA-S71.04-1985 Class G3 |
| Protection Rating | IP20 |

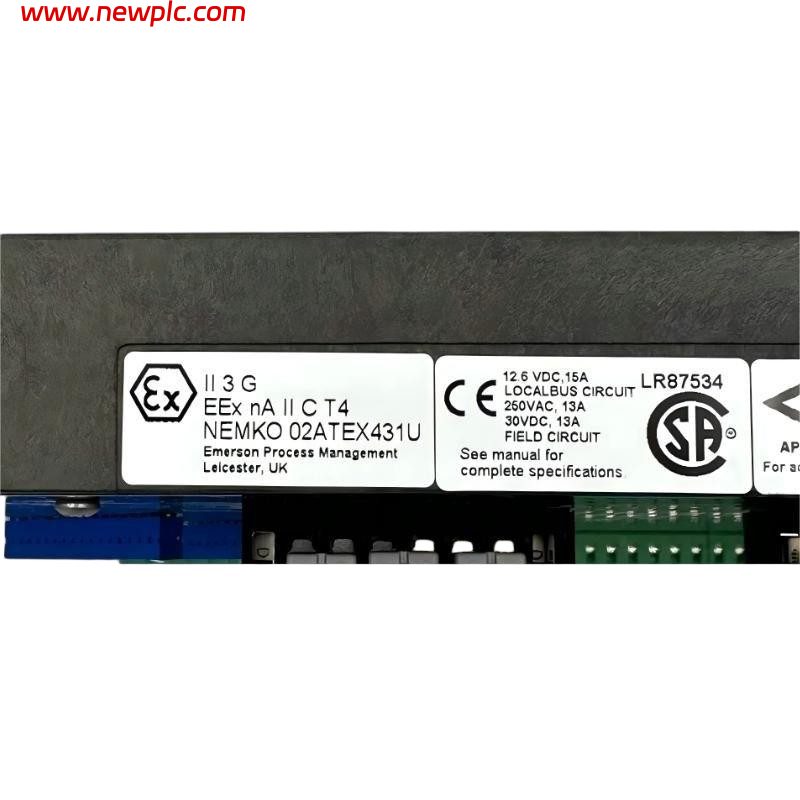

| Hazardous Area Approval | Class I, Division 2 / Zone 2 |
| Mounting Type | Cabinet / Rack Mount |
| Dimensions (L × W × H) | Approximately 300 mm × 220 mm × 30 mm |
| Weight | Approximately 0.4 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Emerson KJ4003X1-BA1 used for?
The KJ4003X1-BA1 is an 8-wide VerticalPlus I/O Carrier designed to house and connect I/O modules within an Emerson DeltaV distributed control system.
Q2: How many I/O modules can the carrier support?
The carrier is designed with an 8-wide configuration, allowing installation of multiple VerticalPlus I/O modules depending on the system architecture and module type.
Q3: What are the dimensions of the KJ4003X1-BA1?
The carrier measures approximately 300 mm in length, 220 mm in height, and 30 mm in width.
Q4: How much does the KJ4003X1-BA1 weigh?
The unit weighs approximately 0.4 kg, making it suitable for standard DeltaV cabinet installations.
Q5: What environmental conditions can the carrier withstand?
The carrier is rated for operation from -40°C to +70°C with relative humidity levels between 5% and 95% non-condensing.
Q6: Does the KJ4003X1-BA1 support hazardous-area installations?
Yes. The carrier is certified for use in Class I Division 2 and Zone 2 hazardous locations when installed according to Emerson guidelines.
Q7: What power specifications are supported by the carrier?
The KJ4003X1-BA1 supports LocalBus power at 12.6 VDC with a maximum current rating of 15 A.
Q8: Does the KJ4003X1-BA1 require routine maintenance or calibration?
No. The carrier contains no user-serviceable parts and does not require calibration during normal operation. Regular inspection of connections and mounting hardware is generally sufficient.
