Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ4003X1-BB1 |
| Manufacturer | Emerson |
| Product Series | DeltaV™ VerticalPlus |

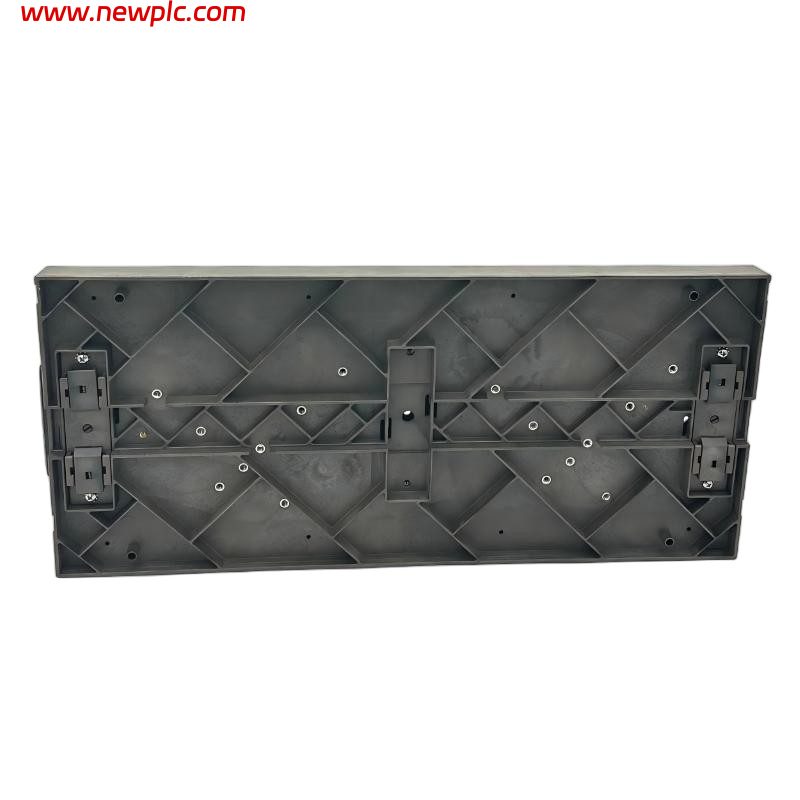

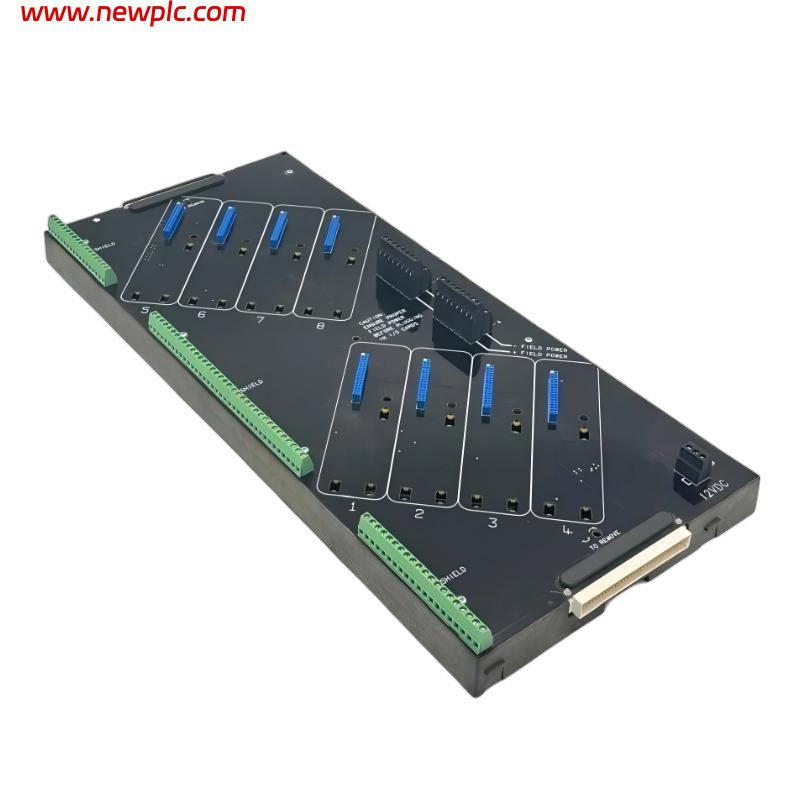

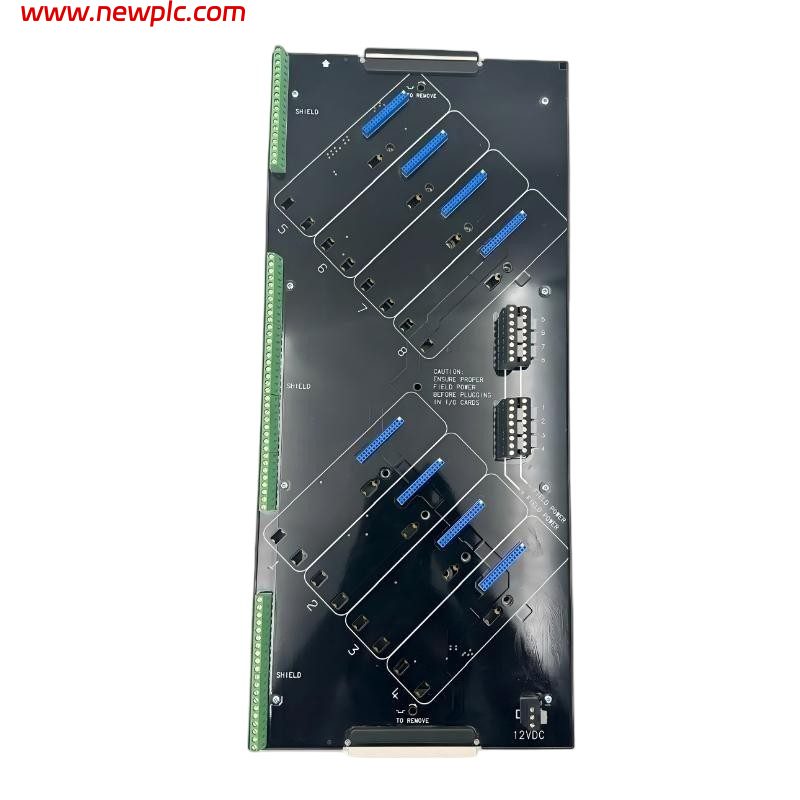

| Product Type | 4-Wide VerticalPlus I/O Carrier (Left) |
| Application | DeltaV Distributed Control System (DCS) |
| Carrier Capacity | Supports VerticalPlus I/O Modules |
| LocalBus Power | 12.6 VDC at 15 A |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz |
| Airborne Contaminant Rating | ISA-S71.04-1985 Class G3 |
| Protection Rating | IP20 |
| Hazardous Area Approval | Class I, Division 2 / Zone 2 |
| Mounting Type | Cabinet / Rack Mount |
| Dimensions (L × W × H) | Approximately 150 mm × 220 mm × 30 mm |
| Weight | Approximately 0.25 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Emerson KJ4003X1-BB1 used for?
The KJ4003X1-BB1 is a 4-wide VerticalPlus I/O Carrier designed to mount and connect VerticalPlus I/O modules in Emerson DeltaV distributed control systems.
Q2: How many I/O modules can this carrier support?
The 4-wide configuration allows installation of up to four VerticalPlus I/O modules, depending on the system configuration.
Q3: What are the dimensions of the KJ4003X1-BB1?
The carrier measures approximately 150 mm in length, 220 mm in height, and 30 mm in width.
Q4: How much does the KJ4003X1-BB1 weigh?
It weighs approximately 0.25 kg, suitable for standard cabinet installation.
Q5: What environmental conditions can the carrier handle?
The carrier operates reliably from -40°C to +70°C with relative humidity between 5% and 95% non-condensing.
Q6: Can the KJ4003X1-BB1 be used in hazardous areas?
Yes. It is approved for use in Class I Division 2 and Zone 2 hazardous locations when installed according to Emerson guidelines.
Q7: What are the power specifications for this carrier?
It provides LocalBus power at 12.6 VDC with a maximum current rating of 15 A.
Q8: Does the KJ4003X1-BB1 require maintenance or calibration?
No routine maintenance or calibration is required. Inspection of connections and mounting hardware is recommended for system reliability.
