Technical Specifications
| Parameter | Specification |
|---|---|

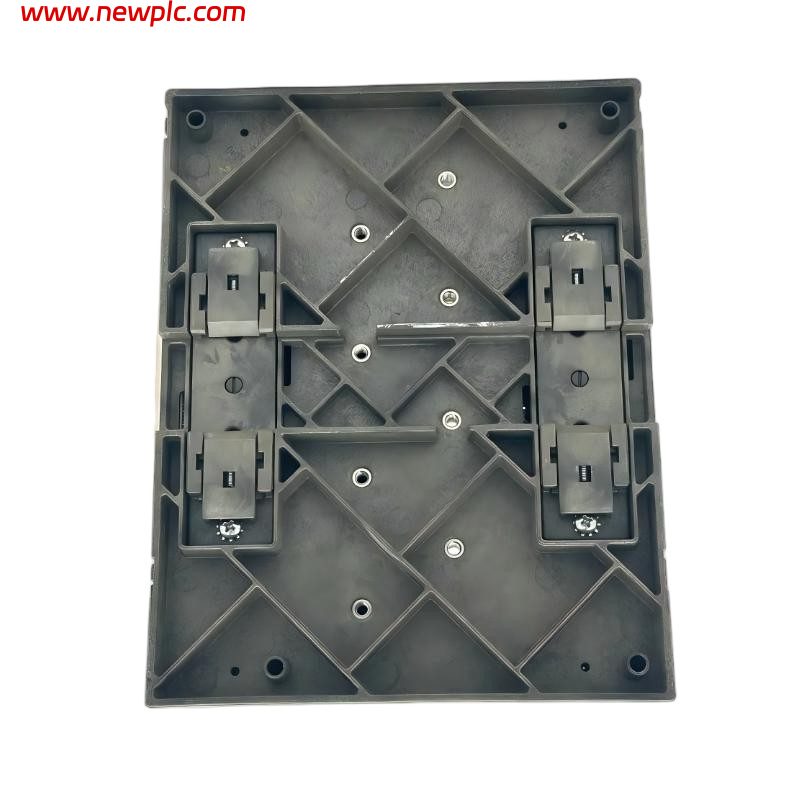

| Model Number | KJ4003X1-BC1 |
| Manufacturer | Emerson |
| Product Series | DeltaV™ VerticalPlus |
| Product Type | 4-Wide VerticalPlus Power/Controller Carrier |
| Application | DeltaV Distributed Control System (DCS) |
| Carrier Capacity | Supports DeltaV Controller and Power Supply Modules |
| LocalBus Power | 12.6 VDC at 15 A |
| Maximum LocalBus Extension Length | 6.5 m |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminant Rating | ISA-S71.04-1985 Class G3 |
| Protection Rating | IP20 |
| Hazardous Area Approval | Class I, Division 2 / Zone 2 |
| Mounting Type | Cabinet / Rack Mount |
| Dimensions (L × W × H) | Approximately 150 mm × 220 mm × 30 mm |
| Weight | Approximately 0.35 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Emerson KJ4003X1-BC1 used for?
The KJ4003X1-BC1 is a VerticalPlus Power/Controller Carrier used to house DeltaV controllers and power supply modules while providing LocalBus communication throughout the control system.
Q2: Which DeltaV systems support the KJ4003X1-BC1?
The carrier is designed for Emerson DeltaV VerticalPlus architectures and integrates with compatible DeltaV controllers, power supplies, and I/O subsystem components.
Q3: What are the dimensions of the KJ4003X1-BC1?
The carrier has approximate dimensions of 150 mm × 220 mm × 30 mm, making it suitable for installation in standard DeltaV control cabinets.
Q4: How much does the KJ4003X1-BC1 weigh?
The unit weighs approximately 0.35 kg, allowing easy installation and replacement during system maintenance.
Q5: What are the power specifications of the KJ4003X1-BC1?
The carrier supports LocalBus power rated at 12.6 VDC with a maximum current capacity of 15 A.
Q6: What environmental conditions can the KJ4003X1-BC1 withstand?
It is designed to operate in temperatures ranging from -40°C to +70°C and can withstand relative humidity levels from 5% to 95% non-condensing.
Q7: Is the KJ4003X1-BC1 suitable for hazardous locations?
Yes. The carrier is certified for installation in Class I Division 2 and Zone 2 hazardous areas when installed according to Emerson guidelines.
Q8: Does the KJ4003X1-BC1 require calibration or routine maintenance?
No calibration is required. The carrier contains no user-serviceable parts and is designed for long-term operation with minimal maintenance beyond routine inspection of connections and mounting hardware.
