Technical Specifications
| Item | Specification |
|---|---|

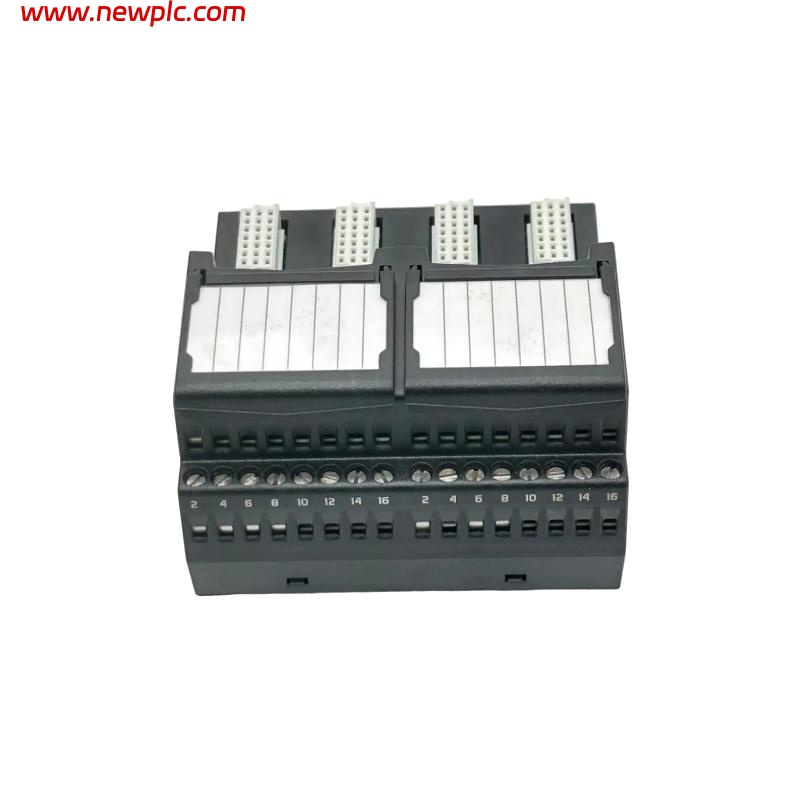

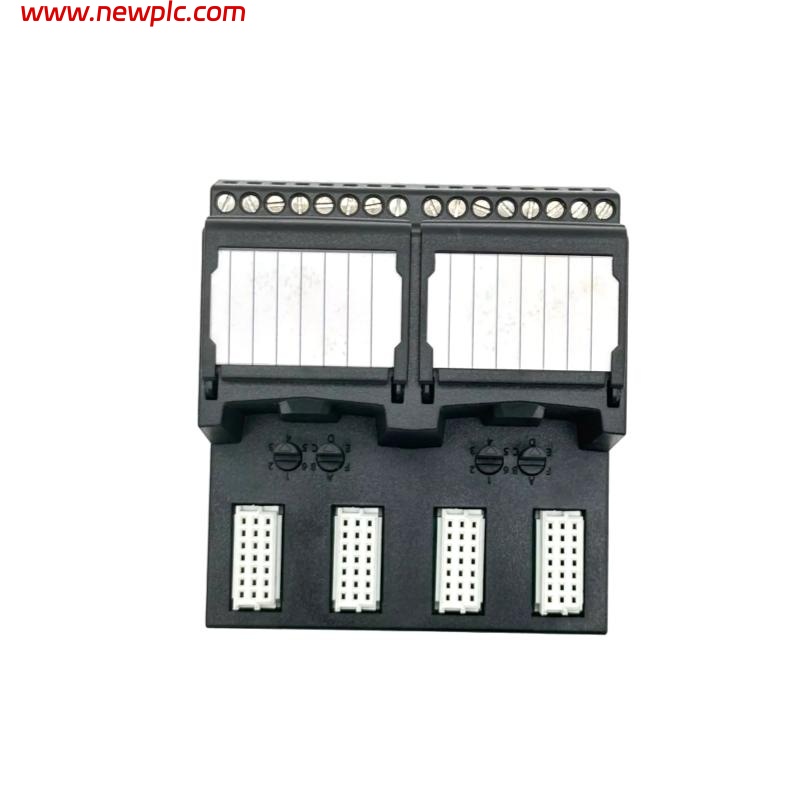

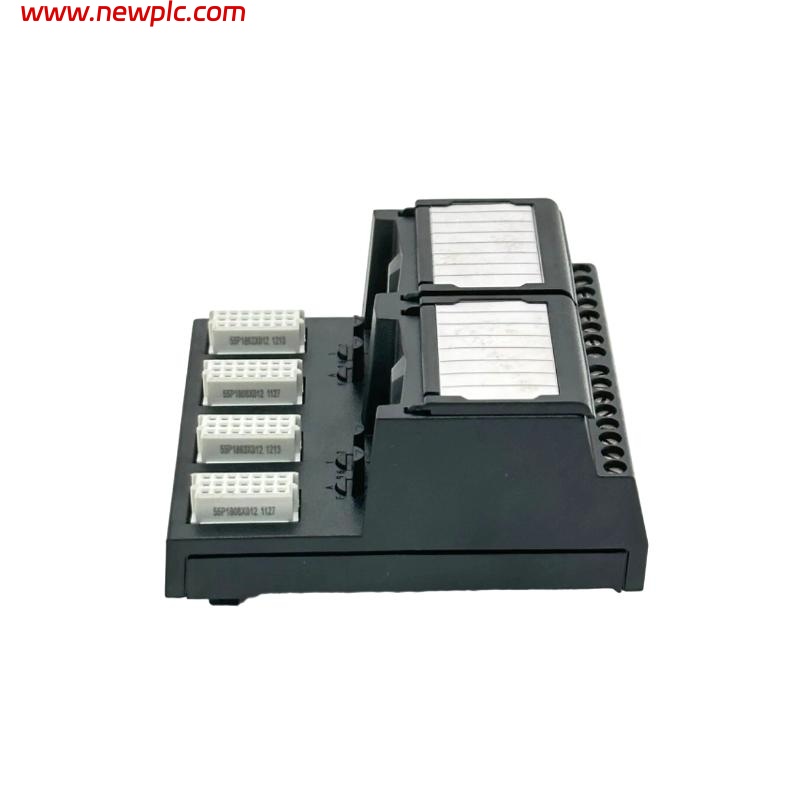

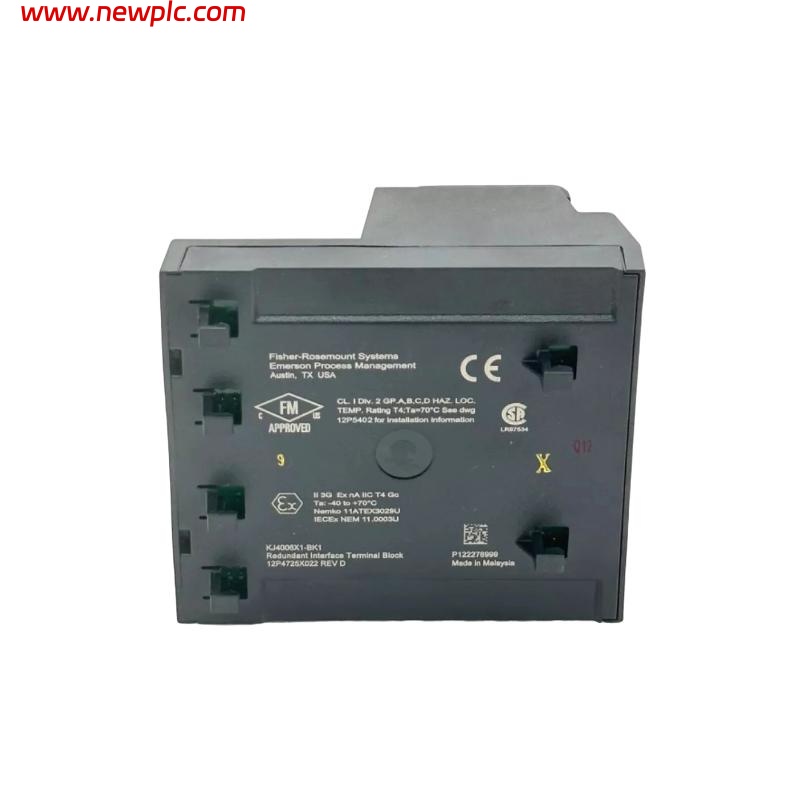

| Model | KJ4006X1-BK1 12P4725X022 |
| Product Type | Redundant Interface Terminal Block |
| Function | Provides redundant field wiring interface between redundant I/O modules and field devices |
| System Compatibility | Emerson DeltaV and Ovation control systems |
| Terminal Type | Screw-clamp terminal block |
| Number of Terminals | 32 channels (16 per redundant path) |
| Rated Voltage | 24 V DC nominal |
| Rated Current | 2 A per channel |
| Redundancy Type | Dual I/O redundancy with automatic failover |
| Contact Resistance | < 10 mΩ |
| Insulation Resistance | > 100 MΩ at 500 V DC |
| Mounting Type | DIN rail or panel mount |
| Wire Size Supported | 0.5 mm² – 2.5 mm² (20–14 AWG) |
| Housing Material | Flame-retardant polyamide |
| Color | Grey |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95%, non-condensing |
| Dimensions | 150 x 100 x 40 mm |
| Weight | 0.05 kg |
| Certifications | CE, UL, RoHS |
FAQ
FAQ
Q1: What is the main function of the Emerson KJ4006X1-BK1 terminal block?
A1: It serves as a redundant interface between redundant I/O modules and field devices, ensuring uninterrupted operation in case of module failure.
Q2: How many channels does the KJ4006X1-BK1 support?
A2: It supports 32 terminal points, divided into two redundant paths of 16 channels each.
Q3: What systems are compatible with this terminal block?
A3: It is fully compatible with Emerson DeltaV and Ovation control systems.
Q4: What redundancy feature does it offer?
A4: It provides dual I/O redundancy with automatic failover to ensure continuous signal transmission.
Q5: What is the rated current per terminal channel?
A5: Each channel can handle up to 2 A of current.
Q6: What type of wire connection does the KJ4006X1-BK1 use?
A6: It uses screw-clamp terminals for secure and vibration-resistant wiring.
Q7: What is the operating temperature range?
A7: The operating temperature range is 0°C to +60°C.
Q8: What are the dimensions and weight of the terminal block?
A8: Dimensions are 150 x 100 x 40 mm, and weight is approximately 0.05 kg.
