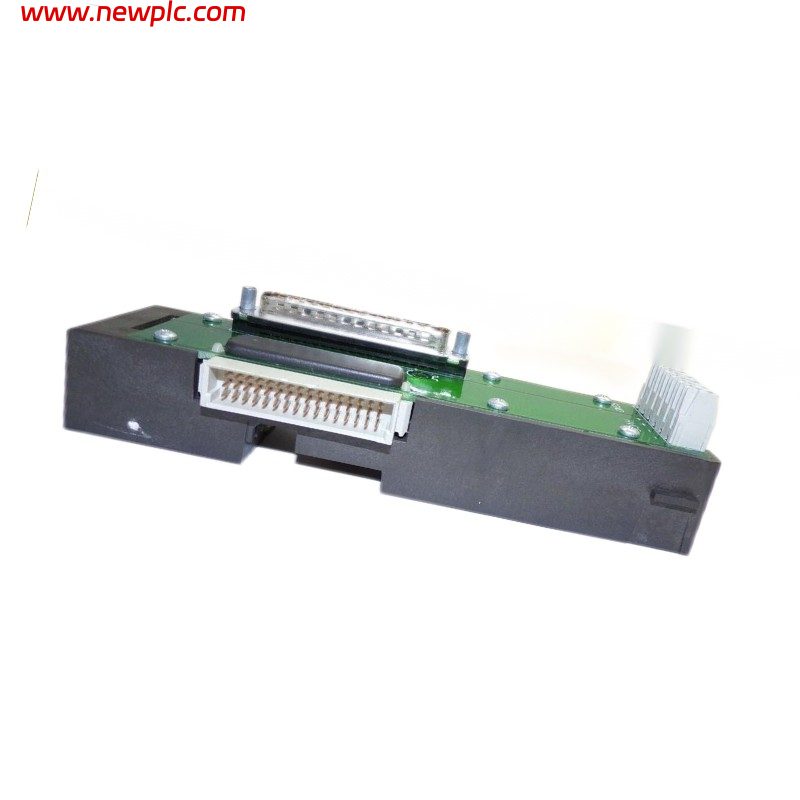

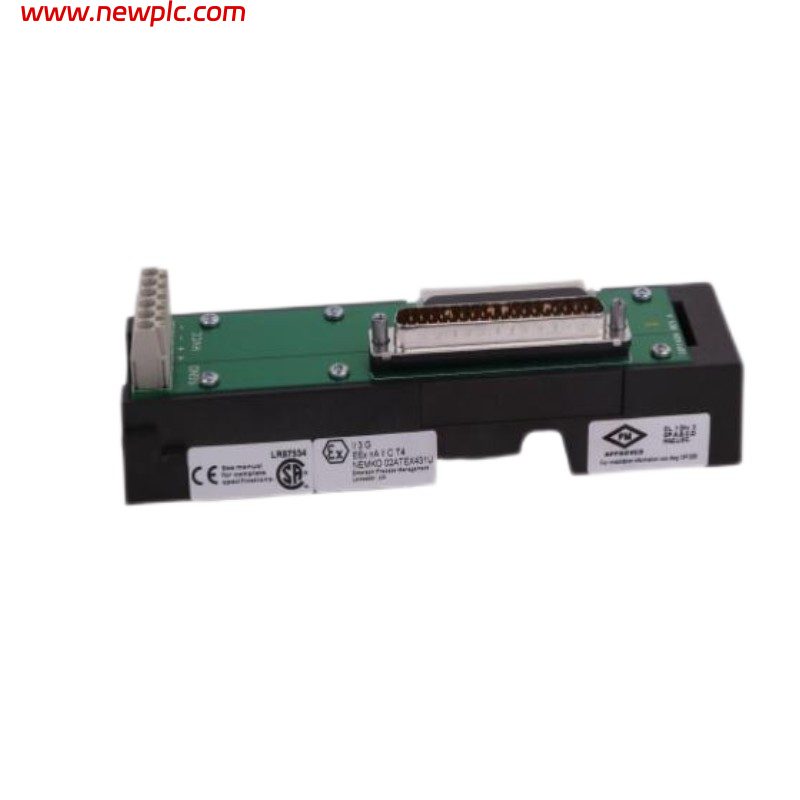

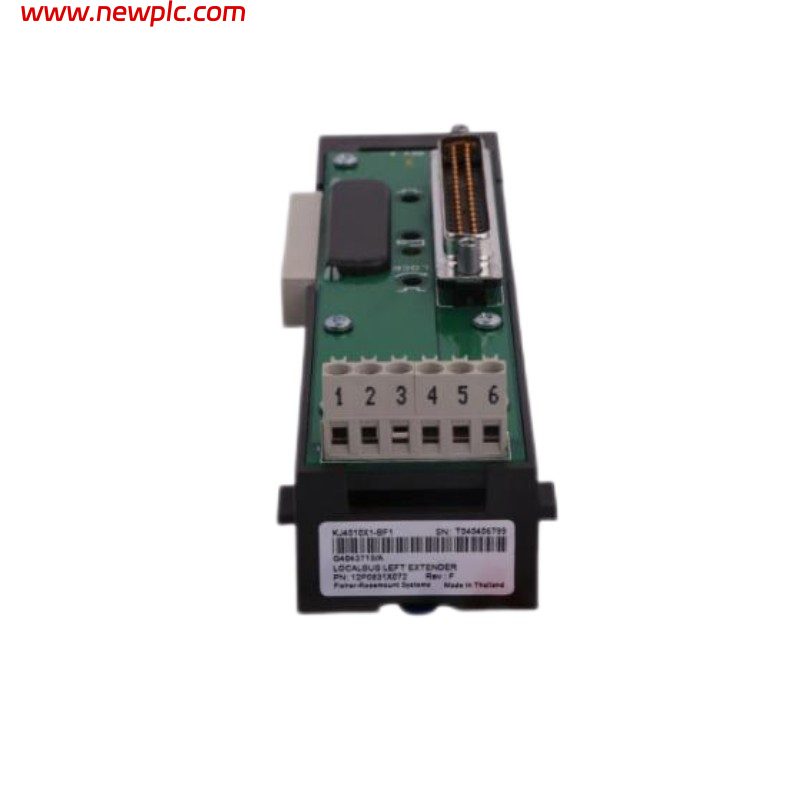

Emerson KJ4010X1-BF1 8-Wide VerticalPlus End Extender Carrier

FAQ

Q1: What is the Emerson KJ4010X1-BF1 used for?
It is a left-side End Extender Carrier for 8-wide VerticalPlus I/O stacks, providing LocalBus termination and mechanical support in DeltaV systems.

Q2: How many modules can this carrier support?
As an 8-wide end extender, it completes an 8-wide I/O stack and supports all modules installed within that stack.

Q3: What are the physical dimensions of the KJ4010X1-BF1?
The carrier measures approximately 300 mm × 220 mm × 30 mm.

Q4: How much does the KJ4010X1-BF1 weigh?
It weighs approximately 0.48 kg.

Q5: What is the operating voltage?
It operates on LocalBus power at 12.6 VDC with a maximum current of 15 A.

Q6: Can it operate in harsh environments?
Yes, it supports temperatures from -40°C to +70°C and relative humidity from 5%–95% non-condensing.

Q7: Is the KJ4010X1-BF1 suitable for hazardous areas?
Yes, it is certified for Class I Division 2 and Zone 2 hazardous locations.

Q8: Does it require maintenance or calibration?
No, the carrier has no user-serviceable parts and does not require calibration during normal operation.
