Technical Specifications
| Parameter | Description |
|---|---|

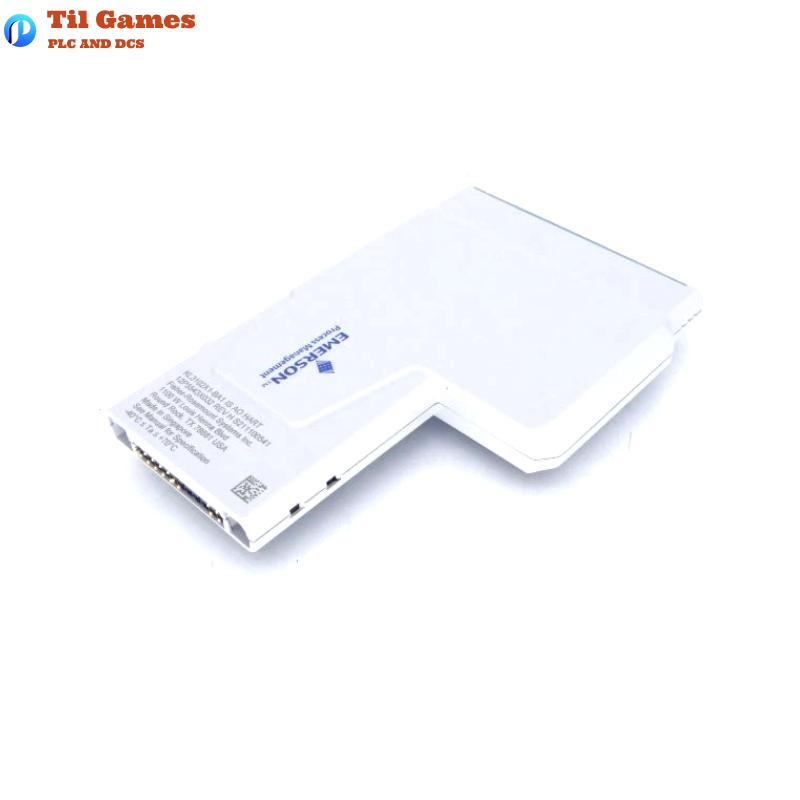

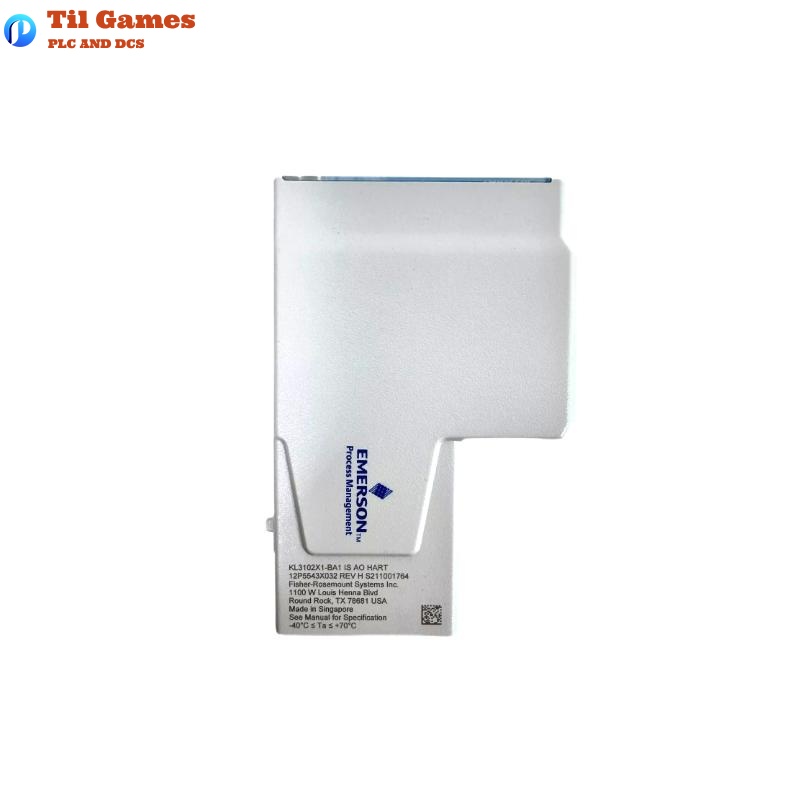

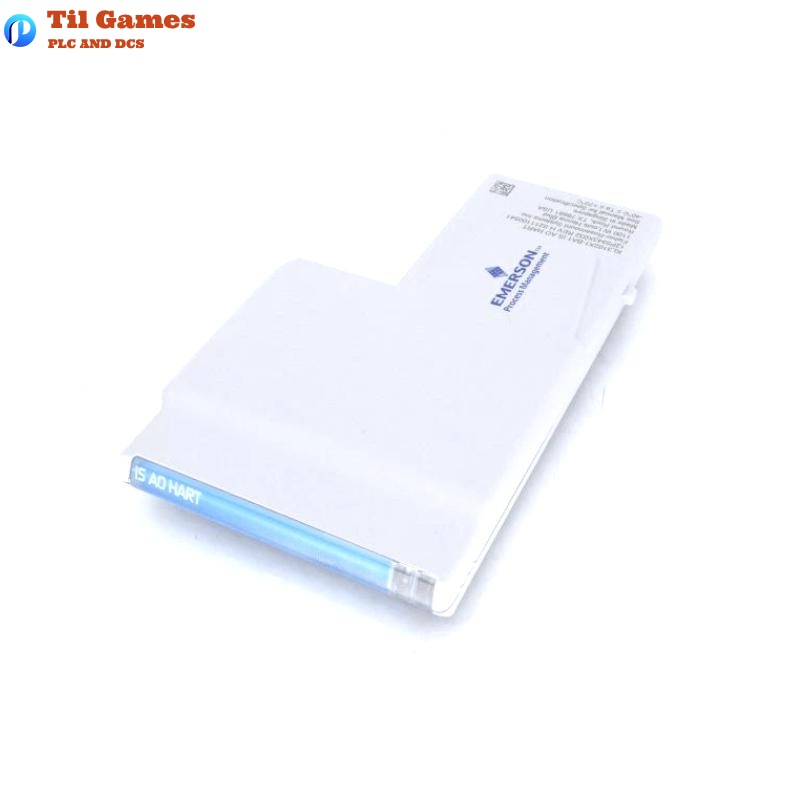

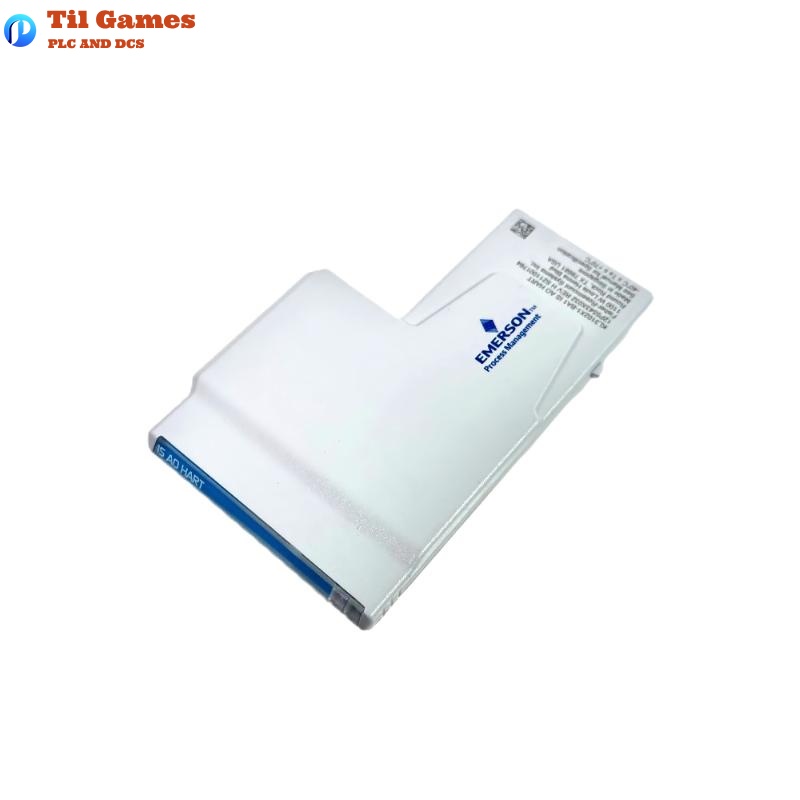

| Product Name | KL3102X1-BA1 Intrinsically Safe Analog Output HART CHARM |
| Output Type | 4–20 mA Analog Output with HART Communication |
| Bus Power Rating | +6.3 VDC at 0 mA |
| Field Circuit Power Rating | +24 VDC at 56 mA |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Vibration Resistance | 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Airborne Contaminants Rating | ISA-S71.04-1985 Class G3 |
| Terminal Block Key Position | C2 |
| Hazardous Area Certifications | ATEX, IECEx, FM (Class I, II, III; Division 1 & 2; Zone 2) |
| Removal/Insertion | Not hot-swappable (do not remove/insert under power) |
| User Serviceable Parts | None (no disassembly or calibration required) |
| Dimensions (W x D x H) | 94 x 12.5 x 60 mm |
| Weight | 0.048 kg |
FAQ
FAQ
Q1: What type of signal does the KL3102X1-BA1 output?
A1: It outputs a 4–20 mA analog signal with HART communication capability.
Q2: Is the KL3102X1-BA1 safe to use in hazardous areas?
A2: Yes, it is certified for use in hazardous areas under ATEX, IECEx, and FM standards.
Q3: Can the module be removed or inserted while powered?
A3: No, it must not be removed or inserted with system power energized.
Q4: What is the operating temperature range of this module?
A4: It operates in environments from -40°C to +70°C.
Q5: Does this module require calibration or maintenance?
A5: No, it has no user-serviceable parts and requires no calibration.
Q6: What is the power requirement for the field circuit?
A6: The field circuit operates at +24 VDC and draws 56 mA.
Q7: What level of vibration can the module withstand?
A7: It withstands 1 mm peak-to-peak from 2 to 13.2 Hz and 0.7 g from 13.2 to 150 Hz.
Q8: How is the terminal block keyed?
A8: The terminal block key position is C2.
