Technical Specifications
| Parameter | Specification |
|---|---|

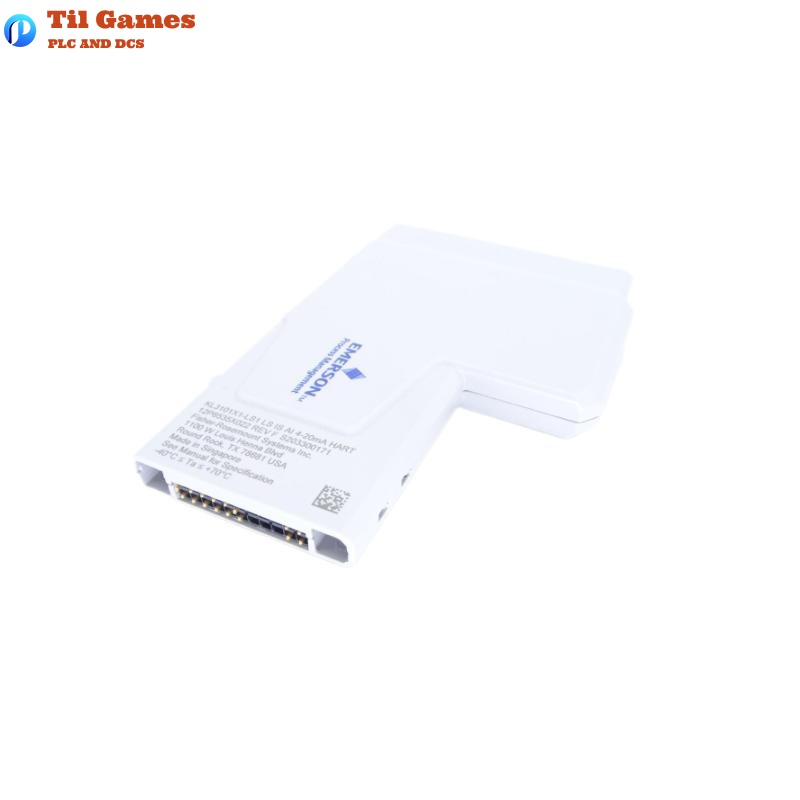

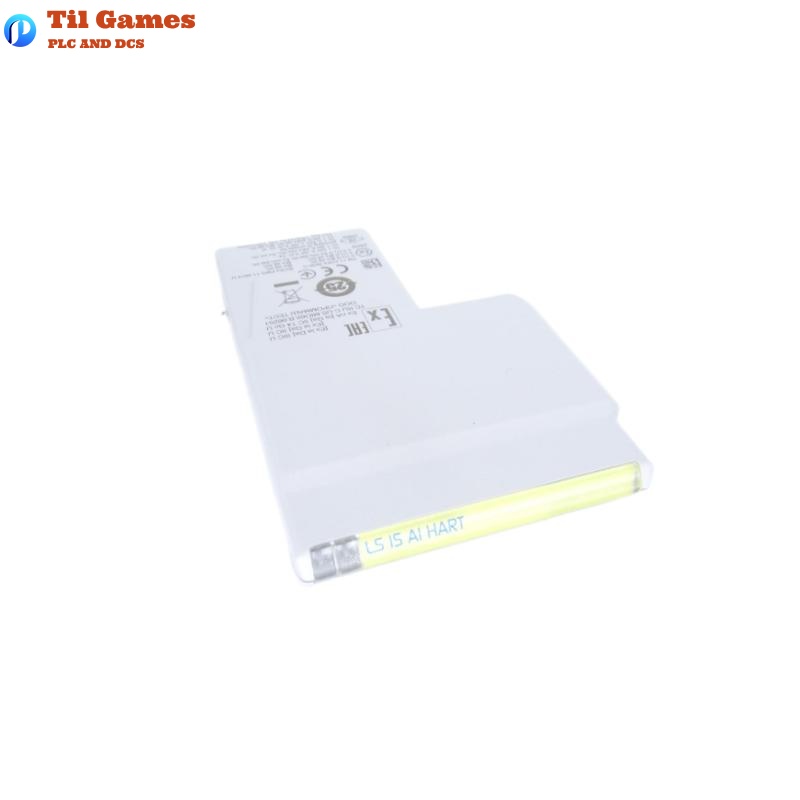

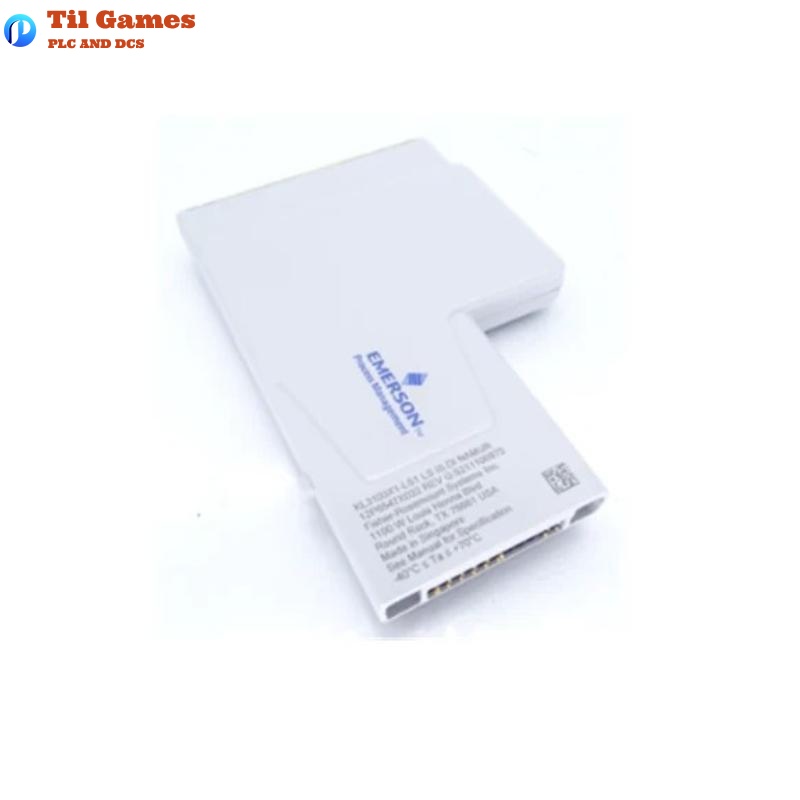

| Model | Emerson KL3101X1-LS1 |
| Description | Intrinsically Safe Analog Input HART CHARM |
| Input Signal | 4–20 mA HART |
| CHARMs Bus Power | +6.3 VDC at 0 A |
| Field Circuit Power | +24 VDC at 60 mA |
| Ambient Temperature | -40°C to +70°C |
| Shock Resistance | 10g ½ Sinewave, 11 ms |
| Vibration Resistance | 1mm P-P (2–13.2 Hz), 0.7g (13.2–150 Hz) |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Relative Humidity | 5% to 95% Non-condensing |
| Terminal Block Key Position | A1 |
| Safety Certifications | ATEX, IECEx, FM (US, Canada, UK), Zone/Class rated |
| Dimensions (W x H x D) | 100 x 120 x 50 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of input signal does KL3101X1-LS1 support?
A1: It supports 4–20 mA analog input with HART communication.
Q2: Can the KL3101X1-LS1 module be inserted or removed while power is on?
A2: No, the module must be inserted or removed only when power is off.
Q3: What is the operating temperature range for KL3101X1-LS1?
A3: The operating range is -40°C to +70°C.
Q4: Is calibration required for the KL3101X1-LS1?
A4: No calibration is required during its operation.
Q5: What safety certifications does the KL3101X1-LS1 have?
A5: It holds ATEX, IECEx, FM (US, CA, UK) certifications for use in hazardous areas.
Q6: What shock and vibration standards can it withstand?
A6: It withstands 10g shock (11 ms ½ sinewave) and vibration from 2 to 150 Hz.
Q7: What are the power specifications of this module?
A7: CHARMs bus: +6.3 VDC at 0 A; Field circuit: +24 VDC at 60 mA.
Q8: What are the dimensions and weight of the KL3101X1-LS1?
A8: Dimensions are 100 x 120 x 50 mm; weight is 0.3 kg.
