Technical Specifications
| Parameter | Description |
|---|---|

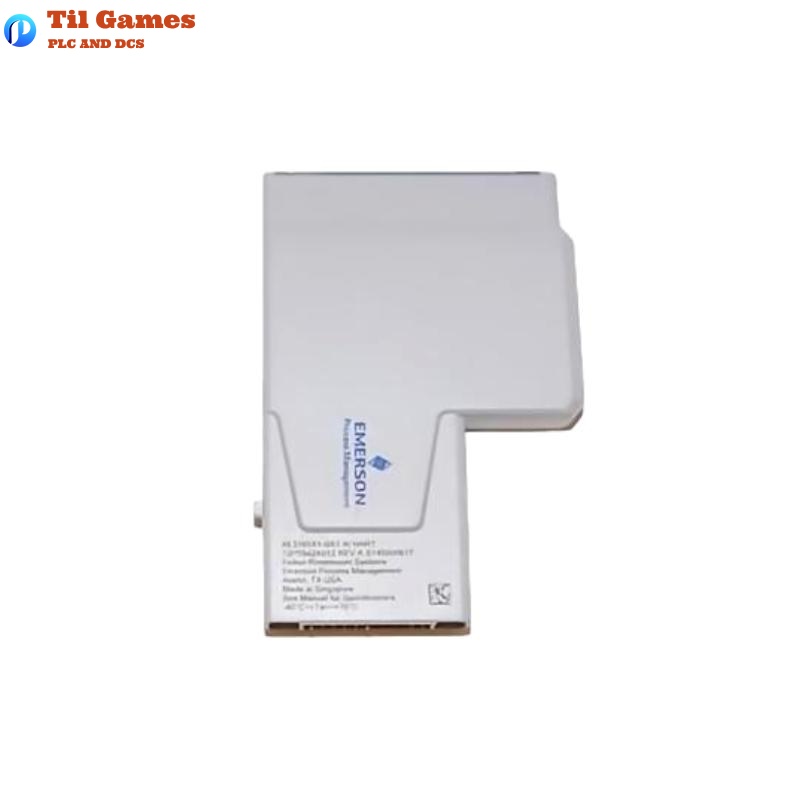

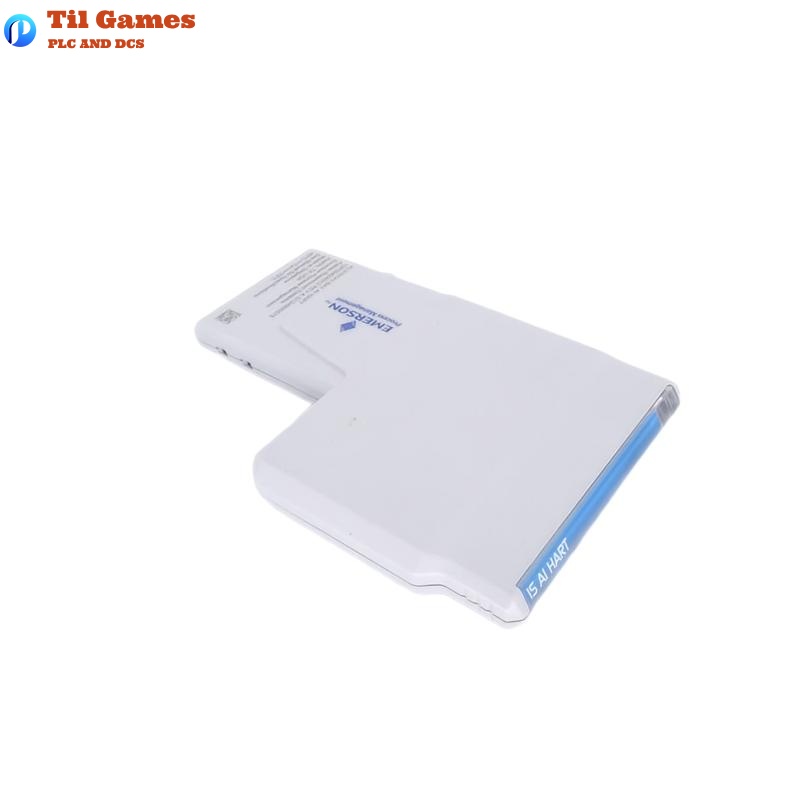

| Model | Emerson KL3101X1-BA1 DeltaV Discrete Input Card |
| Input Type | I.S. AI 4–20 mA HART CHARM |
| Power Supply – CHARM Bus | +6.3 VDC at 0 A |
| Power Supply – Field Circuit | +24 VDC at 60 mA |
| Operating Temperature Range | -40°C to +70°C |
| Shock Resistance | 10g, ½ sine wave for 11 ms |
| Vibration | 1mm Peak-to-Peak (2–13.2 Hz), 0.7g (13.2–150 Hz) |
| Relative Humidity | 5% to 95%, non-condensing |
| Contamination Class | ISA-S71.04–1985 Class G3 |
| Terminal Block Key Position | A1 |
| Dimensions | 94 x 12.5 x 60 mm |
| Weight | 0.063 kg |
FAQ
FAQ
Q1: What type of input signal does the KL3101X1-BA1 support?
A1: It supports isolated 4–20 mA HART analog input signals.
Q2: What is the operating temperature range for KL3101X1-BA1?
A2: The module operates between -40°C and +70°C.
Q3: Can this module be inserted or removed while powered?
A3: No, it must not be inserted or removed while the system is energized.
Q4: Does the KL3101X1-BA1 require periodic calibration?
A4: No, the module is factory calibrated and requires no user adjustment.
Q5: What vibration resistance does the module provide?
A5: It supports 1mm peak-to-peak (2–13.2Hz) and 0.7g (13.2–150Hz).
Q6: What humidity conditions is this module rated for?
A6: It can operate in 5% to 95% non-condensing relative humidity.
Q7: Is the KL3101X1-BA1 suitable for hazardous environments?
A7: Yes, it is certified for use in hazardous areas with ATEX, IECEx, and FM approvals.
Q8: Does this module contain any user-serviceable parts?
A8: No, it contains no user-serviceable parts and should not be disassembled.
