Technical Specifications
| Parameter | Specification |
|---|---|

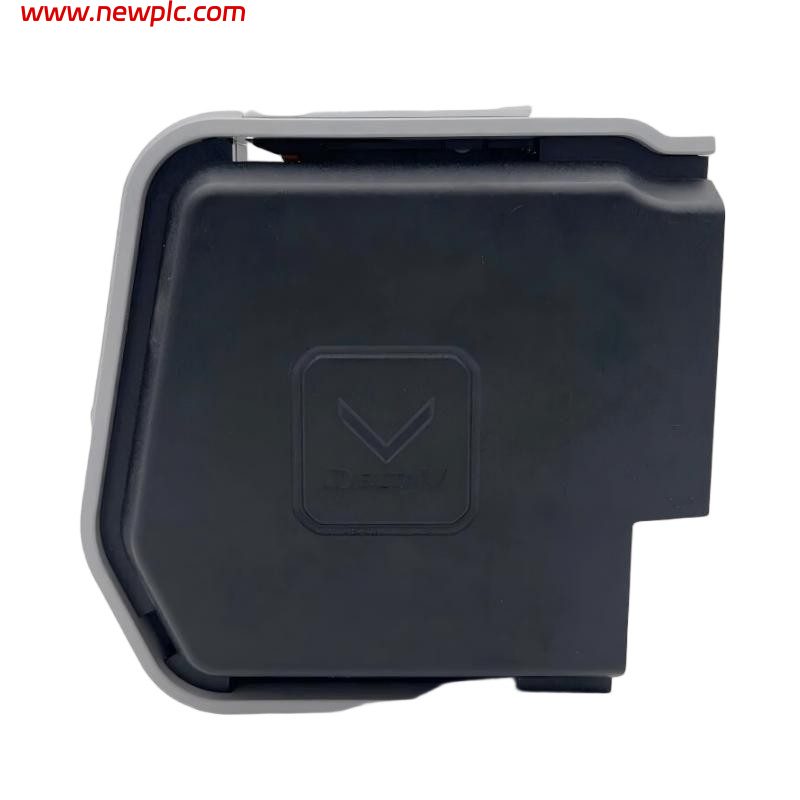

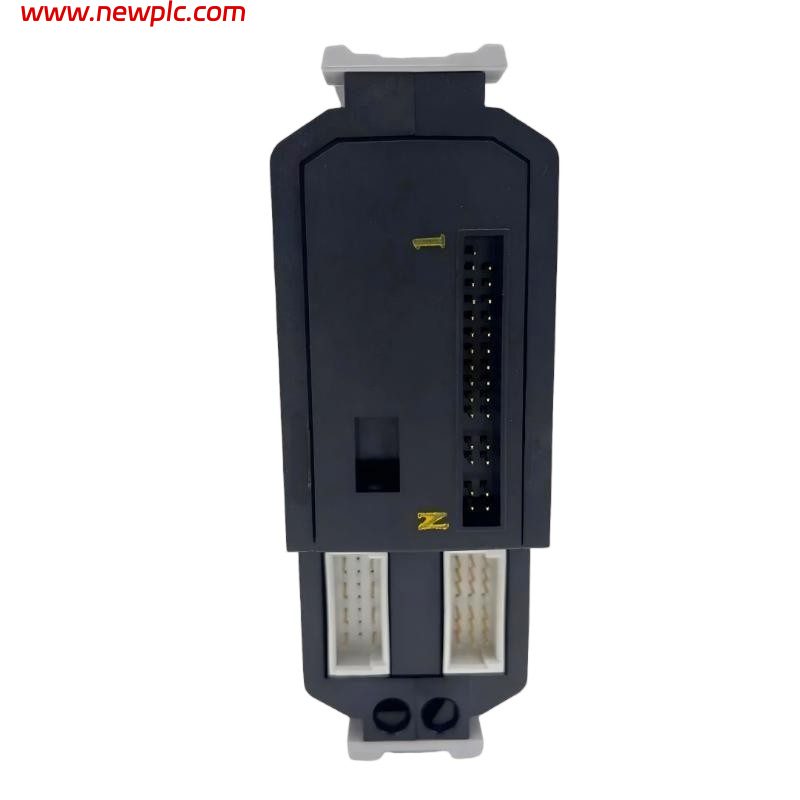

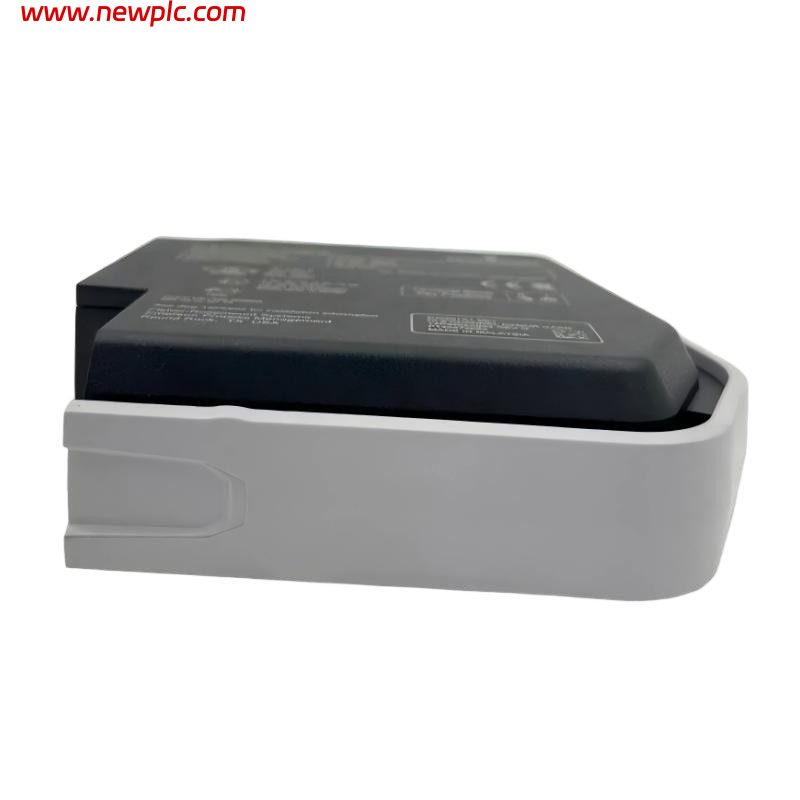

| Model Number | SE4001S2T1B2 |
| Manufacturer | Emerson |
| Product Series | DeltaV™ S-Series Traditional I/O |
| Product Type | Discrete Input Module with Fused 8-Channel Terminal Block |
| Application | Digital Signal Monitoring and Acquisition |
| Input Channels | 8 Channels |
| Input Voltage | 24 VDC (Nominal) |
| Input Current | Up to 10 mA per Channel |
| Isolation Voltage | 500 VDC Between Channels and Ground |
| Response Time | Less Than 5 ms |
| Wiring Size | 16 AWG to 20 AWG |
| Power Consumption | Less Than 1.5 W |
| MTBF | Greater Than 100,000 Hours |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Terminal Block Type | Fused 8-Channel Terminal Block |
| Mounting Type | DeltaV S-Series Carrier Installation |
| Dimensions (L × W × H) | Approximately 100 mm × 120 mm × 30 mm |
| Weight | Approximately 0.25 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Emerson SE4001S2T1B2 used for?
The SE4001S2T1B2 is used to acquire and monitor digital input signals from field devices such as switches, pushbuttons, relays, and status contacts within a DeltaV control system.
Q2: How many input channels does the module support?
The module provides 8 discrete input channels, allowing multiple field devices to be connected to a single I/O interface.
Q3: What is the difference between SE4001S2T1B1 and SE4001S2T1B2?
The primary difference is the terminal block configuration. The SE4001S2T1B2 includes a fused 8-channel terminal block, providing additional protection for field wiring and connected devices.
Q4: What are the dimensions of the SE4001S2T1B2?
The module dimensions are approximately 100 mm × 120 mm × 30 mm.
Q5: How much does the SE4001S2T1B2 weigh?
The unit weighs approximately 0.25 kg, making installation and replacement straightforward during maintenance activities.
Q6: What environmental conditions can the module withstand?
The module operates in temperatures ranging from -20°C to +70°C and supports relative humidity levels between 5% and 95% non-condensing.
Q7: Does the SE4001S2T1B2 provide electrical isolation?
Yes. The module provides 500 VDC isolation between channels and ground, helping protect the control system from electrical noise and transient disturbances.
Q8: Does the SE4001S2T1B2 require routine calibration or maintenance?
No routine calibration is required. Regular inspection of terminal connections, fuses, and field wiring is generally sufficient to maintain reliable operation.
