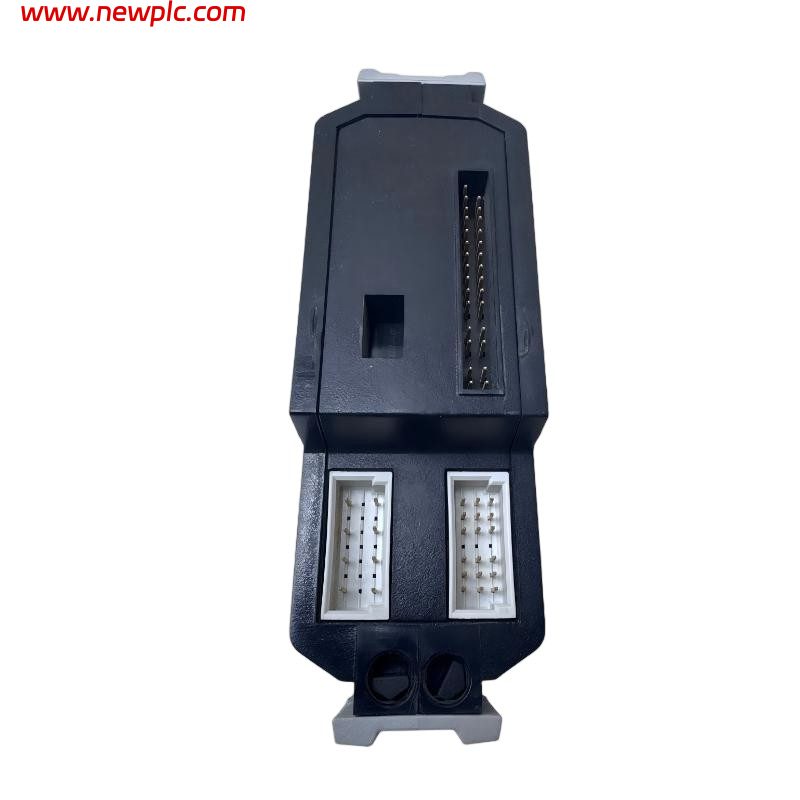

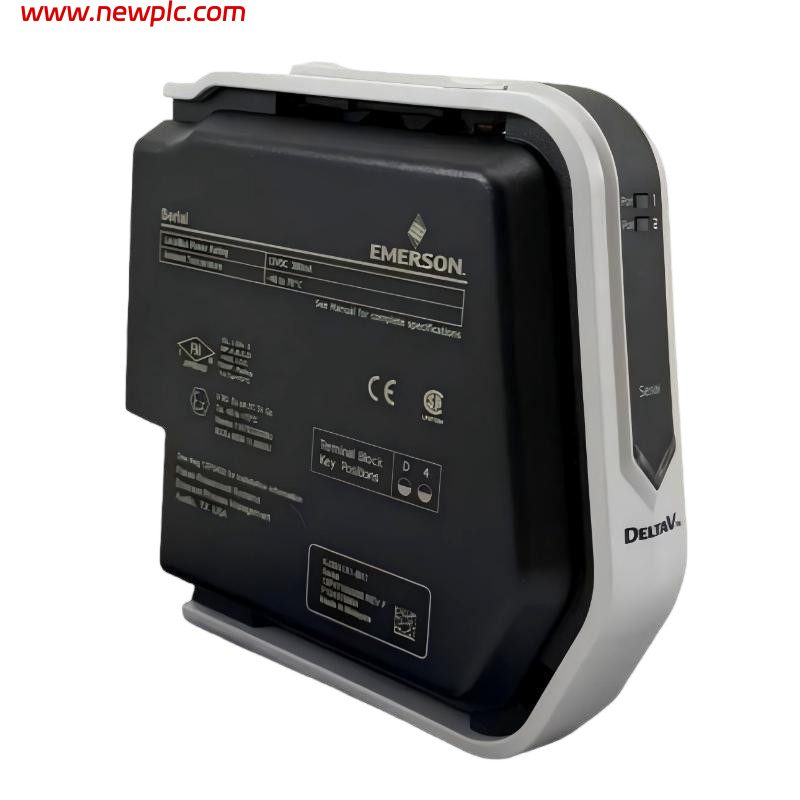

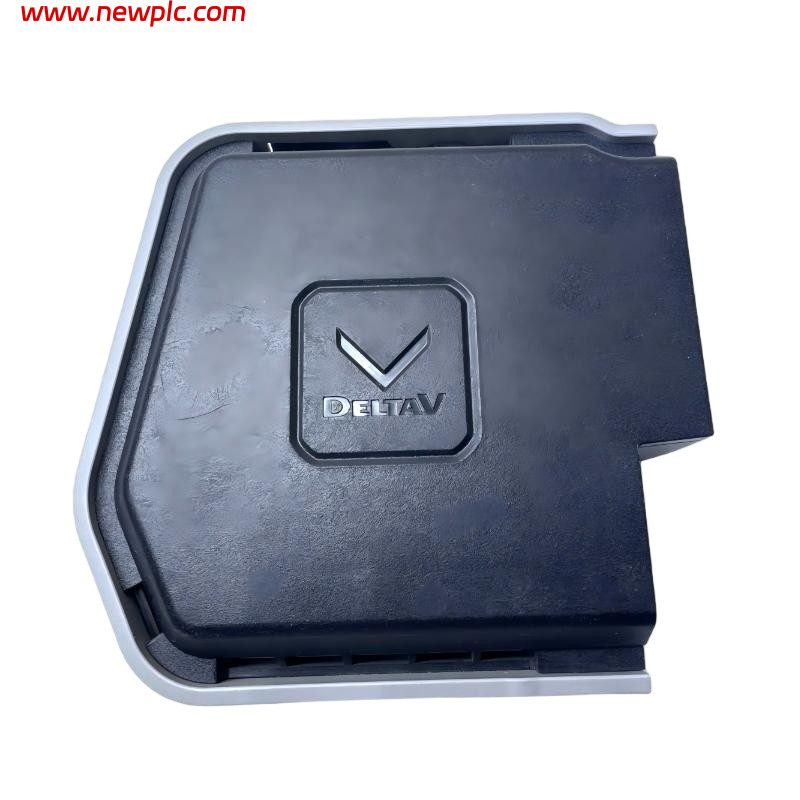

Emerson SE4002S1T2B2 Discrete Output Module

FAQ

Q1: What is the Emerson SE4002S1T2B2 used for?
It is used to control digital field devices while providing circuit protection through fused output channels.

Q2: How many output channels does the module provide?
The module provides 8 discrete output channels.

Q3: What is the output voltage and current rating?
Each channel provides 24 VDC at up to 500 mA.

Q4: What types of loads can it drive?
It can drive resistive or inductive loads, including relays, solenoids, and small indicator lamps.

Q5: What are the module dimensions?
The module measures approximately 100 mm × 120 mm × 30 mm.

Q6: How much does SE4002S1T2B2 weigh?
The module weighs approximately 0.27 kg.

Q7: Can it operate in harsh industrial environments?
Yes, it operates between -20°C and +70°C with 5%–95% non-condensing humidity.

Q8: Does the module require calibration or maintenance?
No calibration is required. Periodic inspection of wiring, terminals, and fuses is sufficient for reliable and safe operation.
