Technical Specifications
| Parameter | Specification |
|---|---|

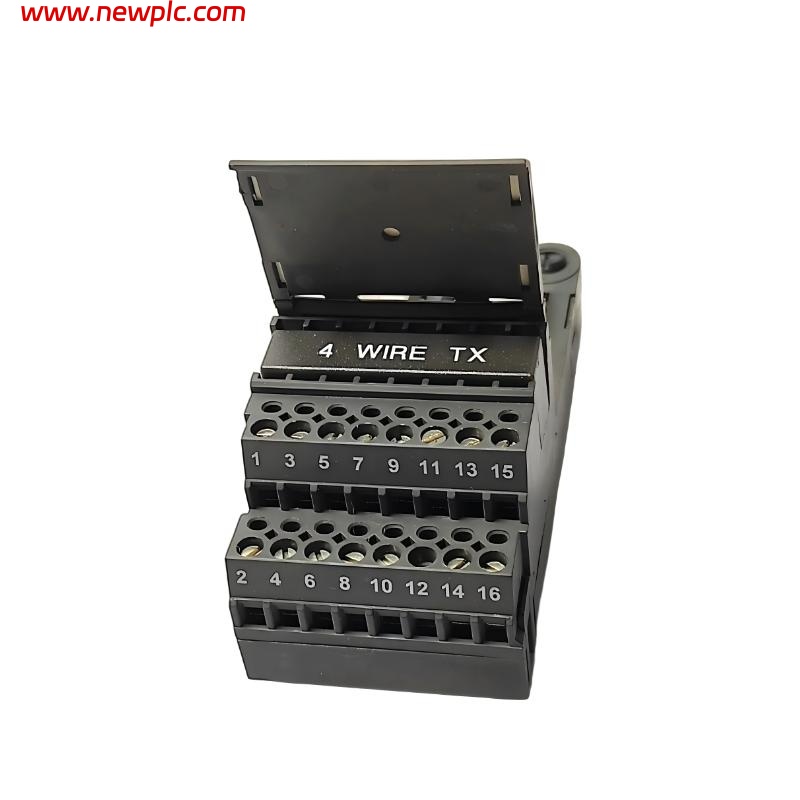

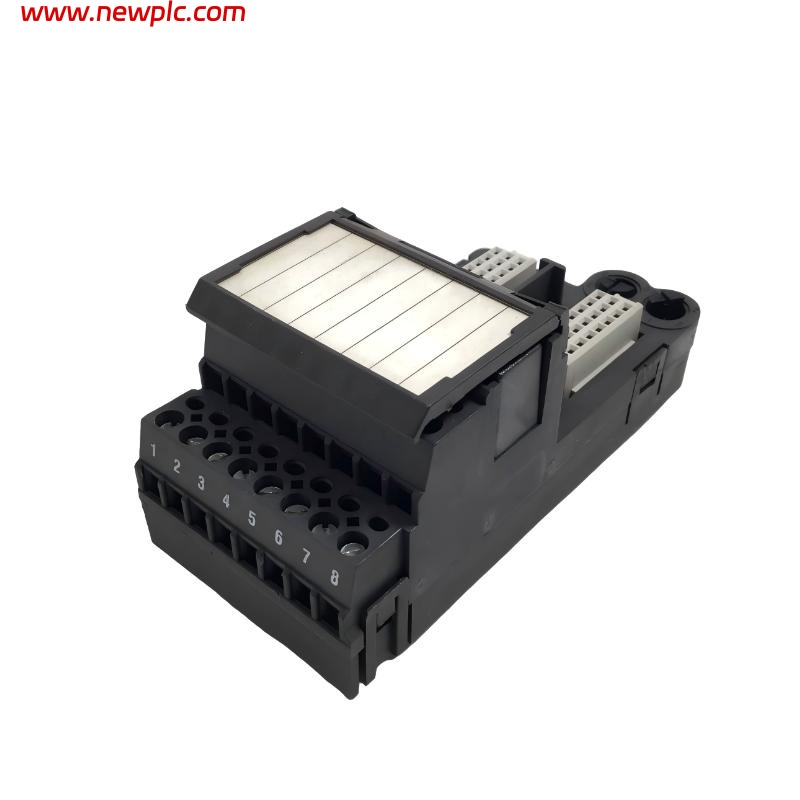

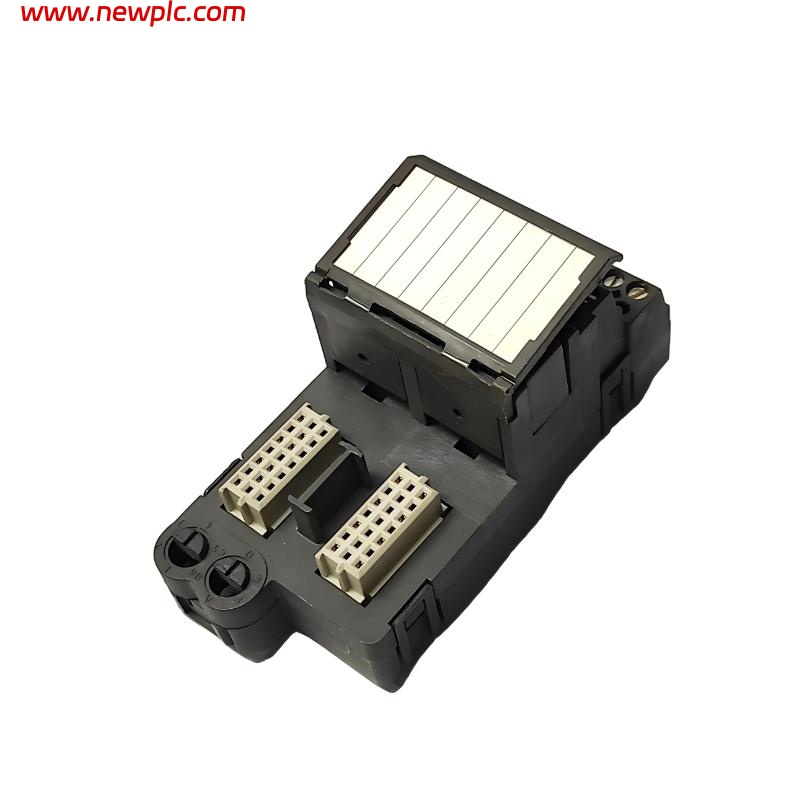

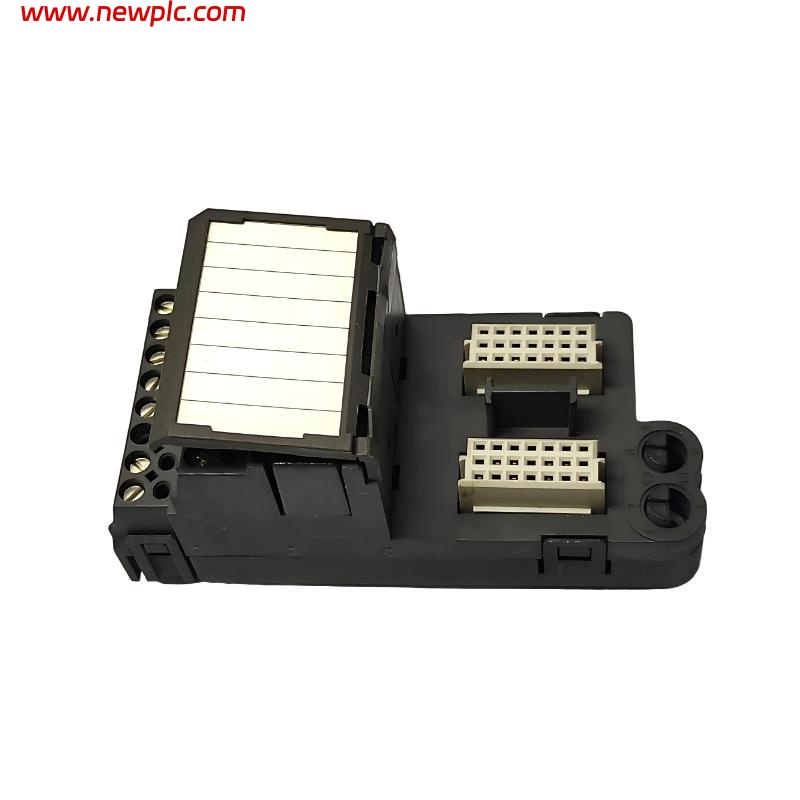

| Model | Emerson SE4083S2B11 |
| Product Type | RTD/Resistance Terminal Block |
| Brand | Emerson |
| Number of Channels | 8 channels |
| Function | Interfaces RTD and resistance temperature sensors to analog input cards |
| Supported Sensors | 2-, 3-, and 4-wire RTD sensors, resistance-type sensors |
| Signal Type | Resistance and temperature measurement |
| Measurement Range | 0 to 4000 Ω typical |
| Supported RTD Types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120 |
| Excitation Current | 0.1 to 1.0 mA depending on configuration |
| Input Isolation | 1500 V RMS between field and system |
| Accuracy | ±0.1% of span typical |
| Common Mode Rejection | >100 dB at 50/60 Hz |
| Conversion Type | 16-bit resolution, multiplexed analog input |
| Noise Suppression | Built-in low-pass filtering and shield grounding |
| Communication Interface | Field signals routed to corresponding analog input card |
| Connector Type | Screw-type removable terminal block |
| Power Supply Voltage | 24 V DC nominal |
| Power Consumption | 1.5 W typical |
| Channel-to-Channel Isolation | None (shared common reference) |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN rail or carrier-mounted |
| Compliance Standards | CE, UL, CSA, IEC 61131-2 |
| Material | High-strength industrial polymer |
| Dimensions | 162 x 41.8 x 199.3 mm |
| Weight | 0.29 kg |
FAQ
FAQ
Q1: What is the main function of the SE4083S2B11 terminal block?
A1: The SE4083S2B11 terminal block provides a reliable interface between RTD or resistance sensors and the analog input card, ensuring accurate temperature and resistance signal transmission.
Q2: How many channels does this terminal block support?
A2: The unit supports up to eight individual input channels, allowing connection of multiple RTD or resistance sensors in a compact installation.
Q3: What types of sensors are compatible with the SE4083S2B11?
A3: It supports 2-, 3-, and 4-wire RTD sensors such as Pt100, Pt500, Pt1000, and also various resistance-type sensors.
Q4: Does the terminal block provide electrical isolation?
A4: Yes, it provides 1500 V RMS isolation between the field wiring and the system electronics to protect against electrical interference and transients.
Q5: How does the module ensure measurement accuracy?
A5: The SE4083S2B11 uses precision excitation currents, low-pass filtering, and noise suppression techniques to maintain stable and accurate signal measurements.
Q6: Is the terminal block compatible with redundant systems?
A6: Yes, it can be integrated into redundant Emerson control systems, providing continuous operation and signal integrity in fault-tolerant configurations.
Q7: What environmental conditions can it operate in?
A7: It is designed for industrial environments, operating within 0°C to +60°C and up to 95% relative humidity without condensation.
Q8: How are the field connections made to the SE4083S2B11?
A8: The terminal block uses removable screw-type connectors that make field wiring simple, secure, and service-friendly during installation or maintenance.
